Clarity (Printable)

1%, 3%, 5%, and 10% Openness

Print page

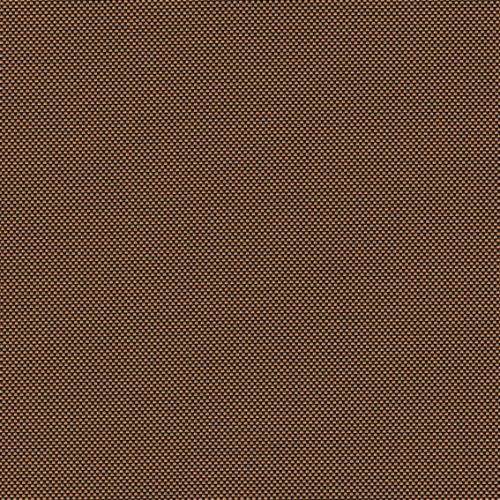

Charcoal/Apricot

Charcoal/Charcoal

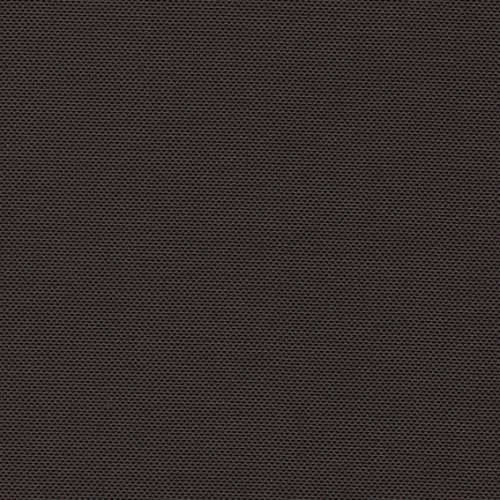

Charcoal/Cocoa

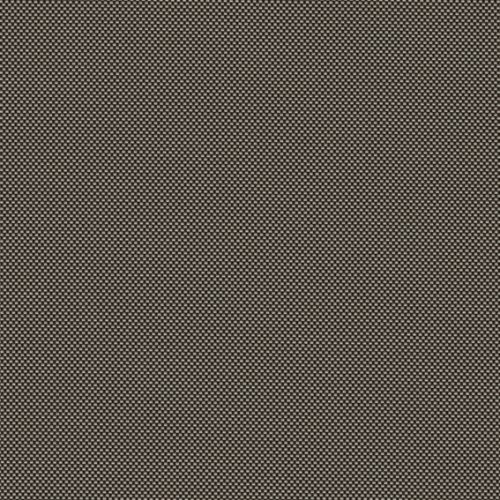

Charcoal/Grey-Stone

Cocoa/Cocoa

Available in 10% only

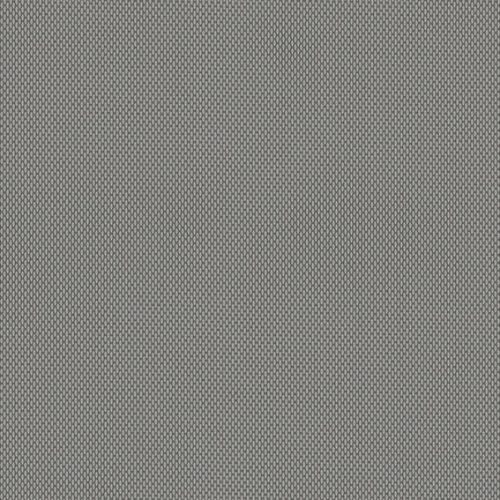

Pearl/Grey

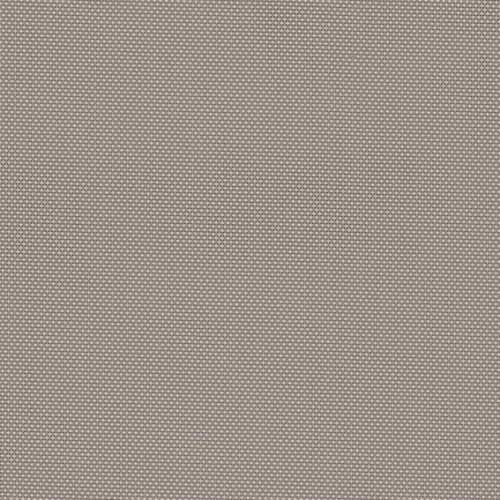

Pearl/Linen

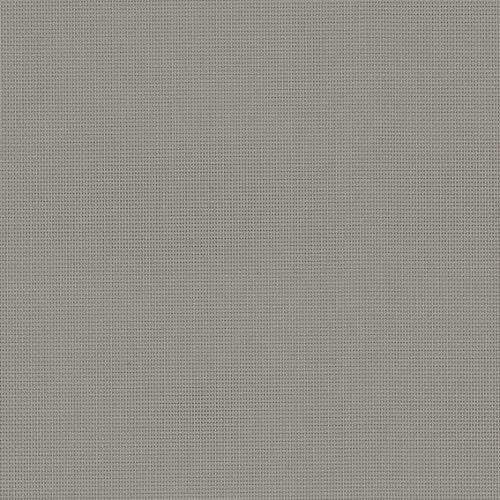

Pearl/Pearl

White/Linen

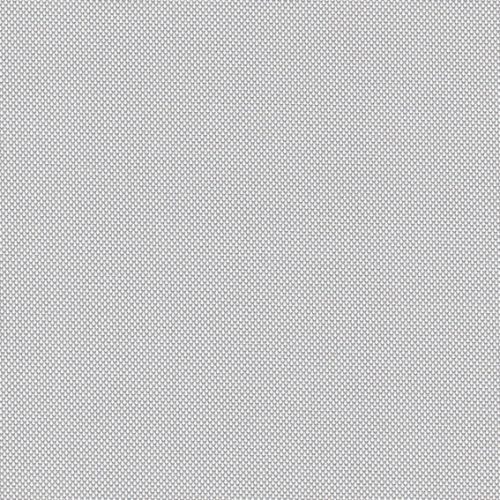

White/Pearl

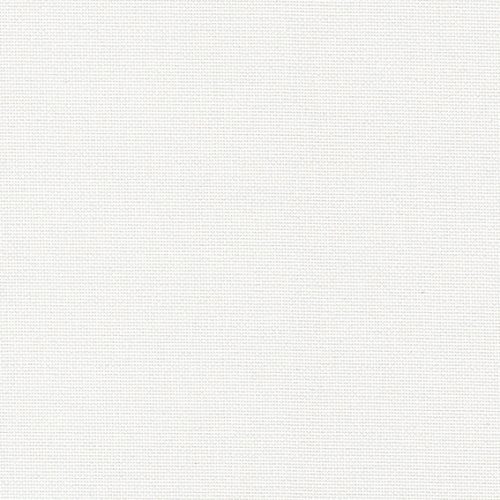

White/White

Specifications

Max Fabric/Shade Width: 122″
UV Blockage: Approximately 99%, 97%, 95% and 90%
Composition: 64% Vinyl, 36% Fiberglass
Fabric Weight: 13.3 oz/yd² (1%), 11.6 oz/yd² (3%), 10.7 oz/yd² (5%), 10.3 oz/yd² (10%)
Fabric Thickness: 0.020″ (1%), 0.017″ (3%), 0.016″ (5%), 0.020″ (10%)
Railroad Available: Yes
Printable Available: Yes – 120″ Max
Fire Classification: NFPA 701-10 TM#1, California Title 19
Bacterial and Fungal Resistance: ASTM E2180, ASTM G21
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization

Note: Several factors determine the maximum length of fabric. Please send project specific specifications to our quoting department for more information.

Care and Cleaning

Remove dust with a vacuum cleaner or compressed air. Do not scrub. Do not use solvents or any abrasive substance which might damage the coating of the fabric. Clean with a sponge or a soft brush dipped in soapy water using a mild detergent. Rinse with clean water. Leave the blind down until completely dry. You can also very gently rub the fabric with a clean white pencil eraser to remove small stains.

Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Fabric Properties - Thermal (1%)

Rs (IR%)
13
3
5
11
30
37
31
65
55
73
-
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Thermal - Total Solar (1%)

Rs (%)As (%)Ts (%)
13861
4951
5932
11872
299665
69547
33625
662014
58339
751114
---
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Optical (1%)

Rv (%)Tv (%)
141
41
52
112
303
415
353
6910
626
8011
--
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Fabric & Glass - Commercial - SHGC % Improvement (1%)

InteriorExterior
1884
1384
1684
1882
2984
3784
3484
5382
4787
6182
--
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Fabric Properties - Thermal (3%)

Rs (IR%)
18
5
7
13
28
38
31
63
49
70
-
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Thermal - Total Solar (3%)

Rs (%)As (%)Ts (%)
18757
5914
7894
13807
276310
394813
32599
632116
523810
731116
---
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Optical (3%)

Rv (%)Tv (%)
187
54
73
136
278
4211
348
6612
568
7813
--
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Fabric & Glass - Commercial - SHGC % Improvement (3%)

InteriorExterior
1882
1384
1384
1879
2679
3479
3282
4782
4284
5882
--
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Fabric Properties - Thermal (5%)

Rs (IR%)
15
6
6
11
27
36
29
61
49
68
-
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Thermal - Total Solar (5%)

Rs (%)As (%)Ts (%)
15787
6904
6877
12799
276112
374815
315712
621820
513712
71920
---
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Optical (5%)

Rv (%)Tv (%)
166
54
67
129
2710
4012
3310
6516
559
7617
--
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Fabric & Glass - Commercial - SHGC % Improvement (5%)

InteriorExterior
1884
1384
1382
1876
2679
3476
2979
4776
3984
5576
--
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Fabric Properties - Thermal - Total Solar (10%)

Rs (%)As (%)Ts (%)
147214
38512
58411
107911
265816
354619
305416
581725
503020
66925
78211
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Optical (10%)

Rv (%)Tv (%)
1413
412
511
1111
2614
3717
3114
6222
5418
7022
611
Color
Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa
Charcoal/Grey-Stone
Pearl/Grey
Pearl/Linen
Pearl/Pearl
White/Linen
White/Pearl
White/White
Cocoa/Cocoa

Fabric & Glass - Commercial - SHGC % Improvement (10%)

InteriorExterior
1679
879
1182
1676
2474
3276
2676
4271
3774
5071
1182

The fabric performance tests were conducted in accordance with ASTM E891 & ASTM E903-96: Total Solar Transmittance (Ts), Total Solar Reflectance (Rs), Total Solar Absorptance (As), Visible Reflectance (Rv), and Visible Transmission (Tv). Glass performance tests for Solar Heat Gain Coefficient (SHGC) were conducted using the Lawrence Berkeley National Laboratory Window 7.3 NFRC certified software. SHGC % improvement for commercial applications is based on a standard commercial glass makeup of Double Glazing 6 mm / ½" air / 6 mm with low E on surface #2. Results for SHGC were obtained using the center of glass. Acoustical performance was tested in accordance with ASTM C423-09a: NRC is Noise Reduction Coefficient, SAA is Sound Absorption Average.

* Please note that the Openness Factor is an approximation and may vary from color to color in the same fabric due to the color and the manufacturing process.
