Dusk (Printable)

0% Openness

Print page

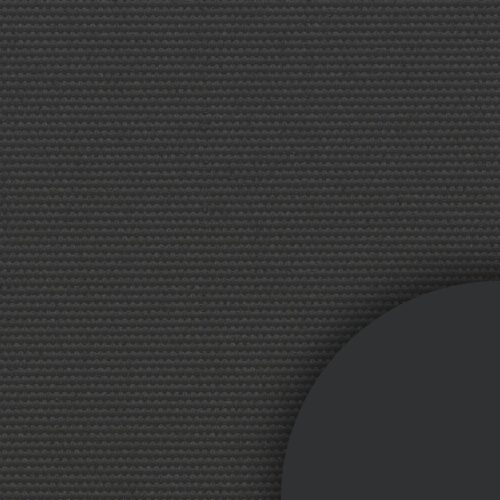

Black

(color back)

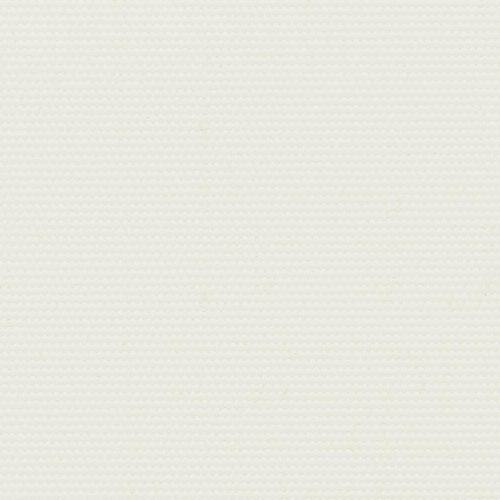

Canvas

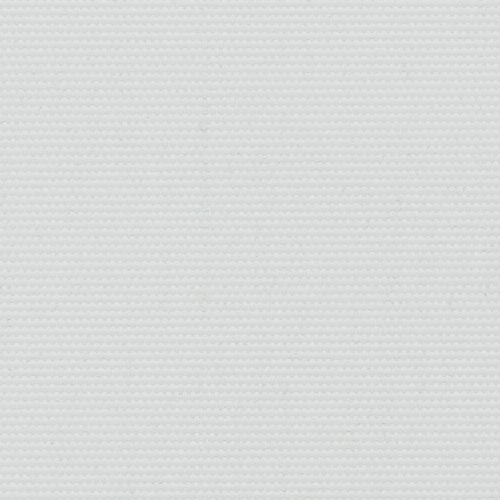

Chalk

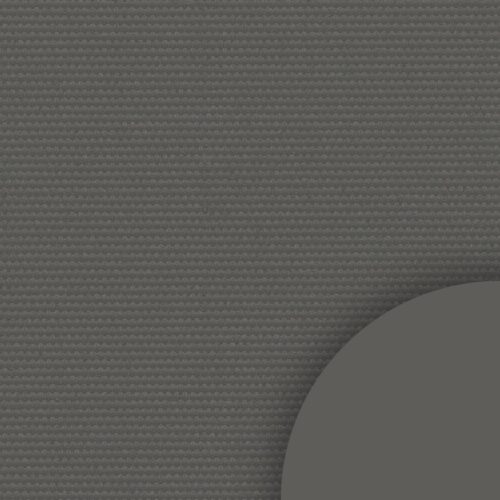

Charcoal

(color back)

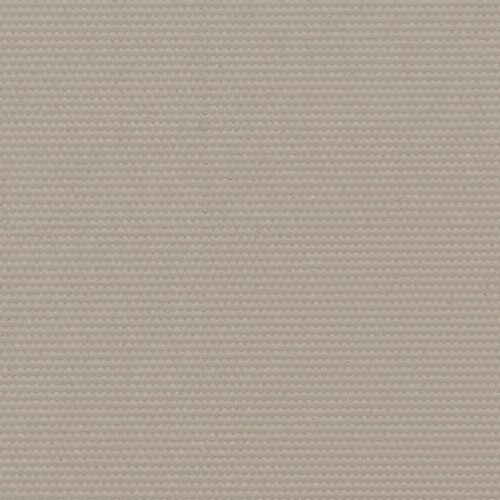

Khaki

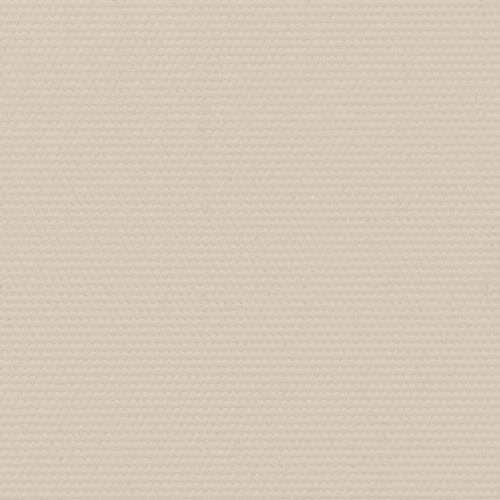

Linen

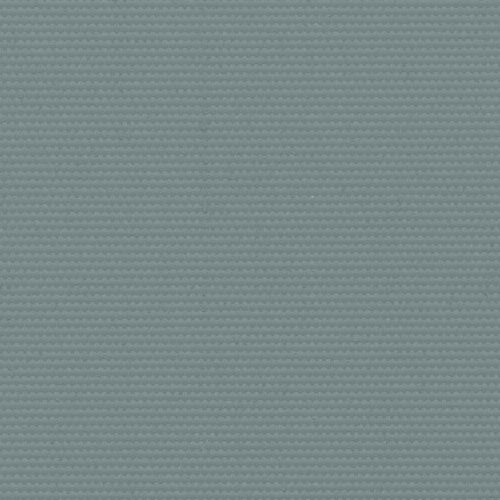

Marine

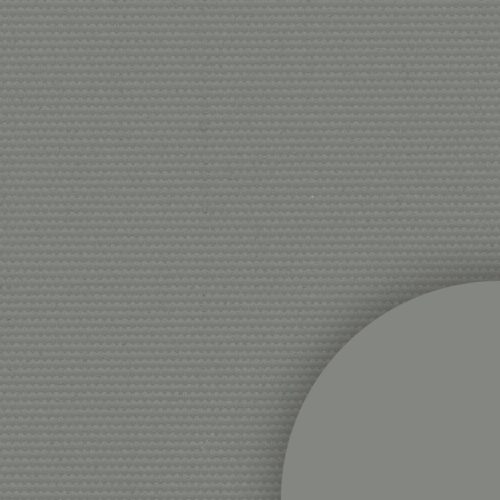

Pewter

(color back)

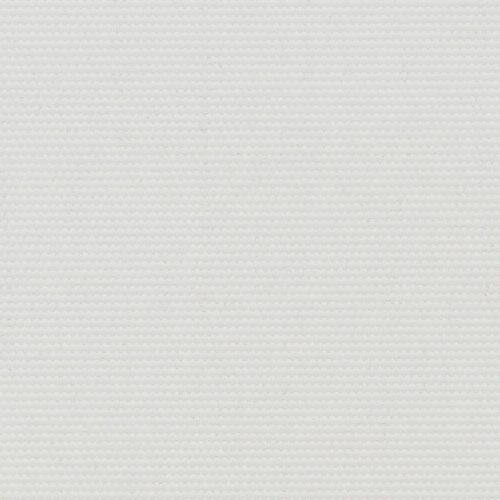

White

Specifications

Maximum Fabric/Shade Width: 118″
UV Blockage: Approximately 100%
Composition: 62.5% Acrylic, 37.5% Polyester
Fabric Weight: 12.86 oz/yd²
Fabric Thickness: 0.017″
Railroad Available: No
Printable Available: Yes
Fire Classification: NFPA 701-10 TM#1, California U.S. Title 19
Bacterial and Fungal Resistance: ASTM E2180
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization

Note: Several factors determine the maximum length of fabric. Please send project specific specifications to our quoting department for more information.

Care and Cleaning

Remove dust with a vacuum cleaner or compressed air. Do not scrub. Do not use solvents or any abrasive substance which might damage the coating of the fabric. The front side of Dusk is treated with DURAGUARD Fabric Protector and can, therefore, be spot cleaned by gently blotting with a sponge or soft brush dipped in lukewarm soapy water using a mild detergent. The foam coating on the back side should not get wet. A dry chemical sponge or clean white pencil eraser can be used to remove small stains.

Black
Canvas
Chalk
Charcoal
Khaki
Linen
Marine
Pewter
White

Solar Optical Properties — Street

TSRSASTV
0 4960
065350
063370
09910
065350
065350
065350
019810
065350
Black
Canvas
Chalk
Charcoal
Khaki
Linen
Marine
Pewter
White

Solar Optical Properties — Room

TSRSASTV
04960
075250
066340
038620
039610
060400
046540
018820
081190
Black
Canvas
Chalk
Charcoal
Khaki
Linen
Marine
Pewter
White

Solar Height Gain Coefficient — Street

CL-SDG
0.69.55
0.33.36
0.34.36
0.66.54
0.33.36
0.33.36
0.33.36
0.60.51
0.33.36
Black
Canvas
Chalk
Charcoal
Khaki
Linen
Marine
Pewter
White

Solar Height Gain Coefficient — Room

CL-SDG
0.690.55
0.270.32
0.330.35
0.490.44
0.480.44
0.360.37
0.440.42
0.610.51
0.240.30

Solar Transmittance (TS), Solar Reflectance (RS), Solar Absorption (AS), Visual Transmittance (TV), Solar Heat Gain Coefficient (SHGC), Single Glazing (CL-S), Double Glazing (DG); Fabrics Installed Internally, Zero-Degree Profile Angle, Solar Heat Gain Coefficient (SHGC) shown calculated according to the Office of Building Technology, State and Community Programs, Energy Efficiency and Renewable Energy, U.S. Department of Energy's definition of SHGC. SHGC represents the percentage of solar heat gain that is transmitted to the interior through the glass and shading system. If you are using glass whose performance is listed in terms of SC, you may convert to SHGC by multiplying the SC by 0.87.

* Please note that the Openness Factor is an approximation and may vary from color to color in the same fabric due to the color and manufacturing process.
