Eclipse™ (Printable)

0% Openness

Print page

White

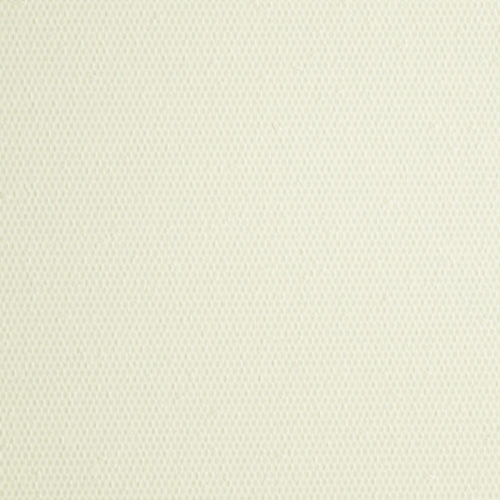

Cream

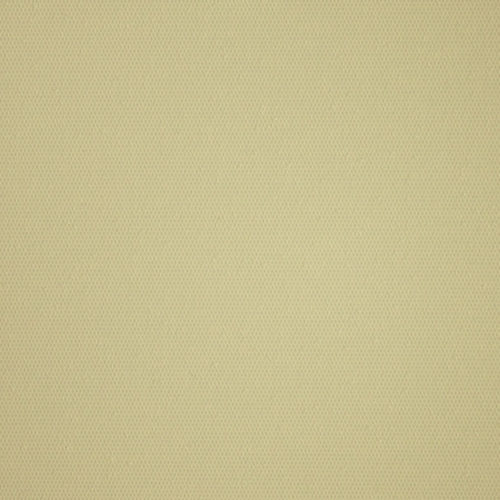

Beige

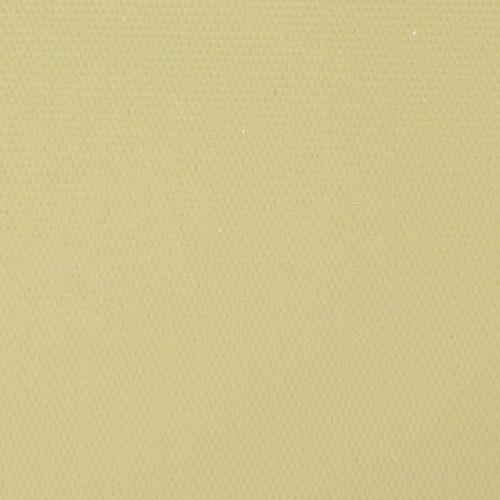

Sand

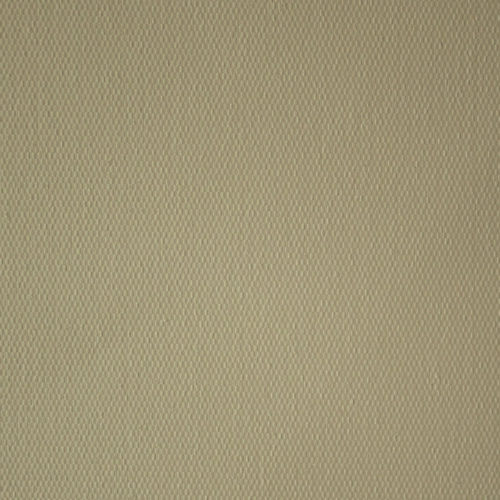

Tundra

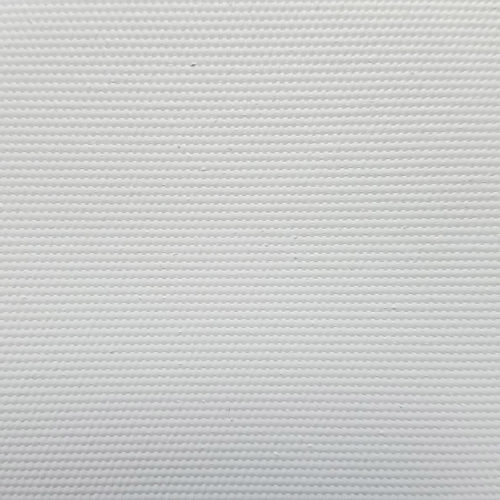

Grey

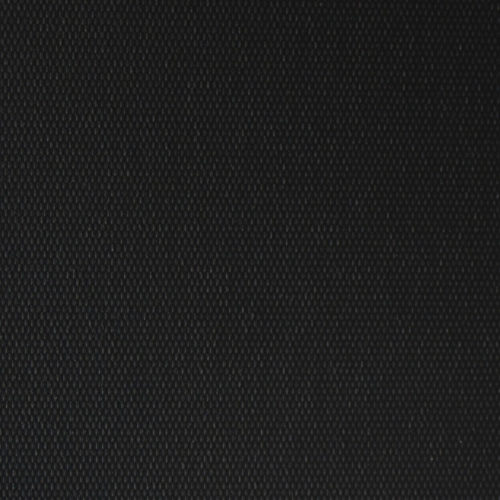

Black

Specifications

Maximum Fabric Width: 126″
UV Blockage: Approximately 100%
Composition: 100% Polyester with Acrylic Coating (PVC-free)
Fabric Weight: 11.8 oz/yd²
Fabric Thickness: 0.016″
Railroad Available: Yes
Printable Available: Yes
Fire Classification: NFPA 701-10 TM#1, California U.S. Title 19
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization

Note: Several factors determine the maximum length of fabric. Please send project specific specifications to our quoting department for more information.

Care and Cleaning

Fabric should be regularly dusted/vacuumed as appropriate. If commercial spot cleaners are used, they must first be tested and allowed to dry on an inconspicuous area to ensure compatibility

Color
Beige
Black
Cream
Grey
Sand
Tundra
White

Solar Optical Properties

TSRSASTV
068320
068320
068320
068320
068320
068320
068320
Color
Beige
Black
Cream
Grey
Sand
Tundra
White

SHGC/G Value (Glass & Blind)

Single 1/4 CLInsulating 1 HA
0.240.20
0.240.20
0.240.20
0.240.20
0.240.20
0.240.20
0.240.20

* Please note that the Openness Factor is an approximation and may vary from color to color in the same fabric due to the color and the manufacturing process.

TS - Solar Transmittance, RS - Solar Reflectance, AS - Solar Absorbance, TV - Visual Light Transmission, AV - Visual Light Absorptance, SHGC - Solar Heat Gain (g-value), 1/4 CL - 1/4" Clear Glass,
1 HA - 1" Heat Absorbing Glass
