Franklin

19% Openness

Print page

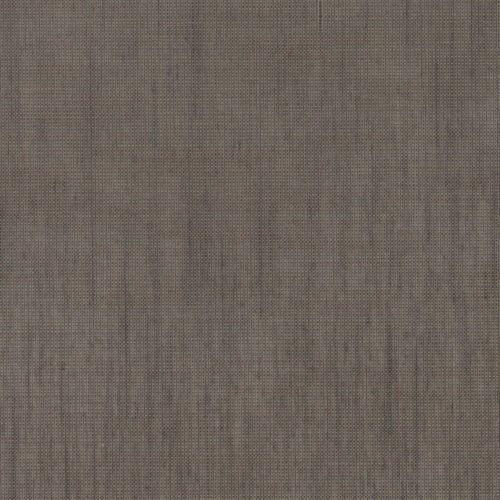

Brown

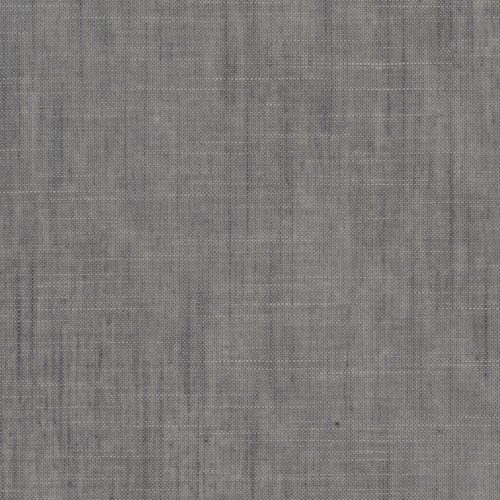

Dark Grey

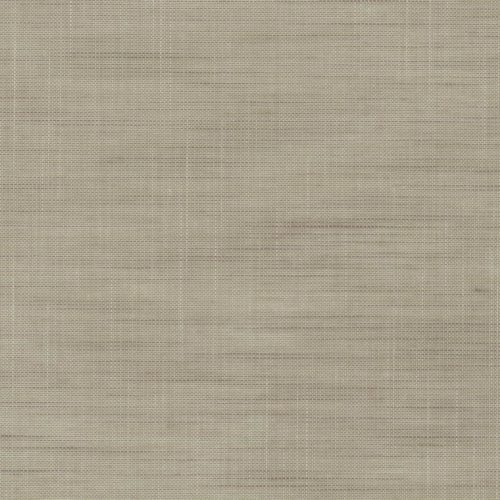

Nutmeg

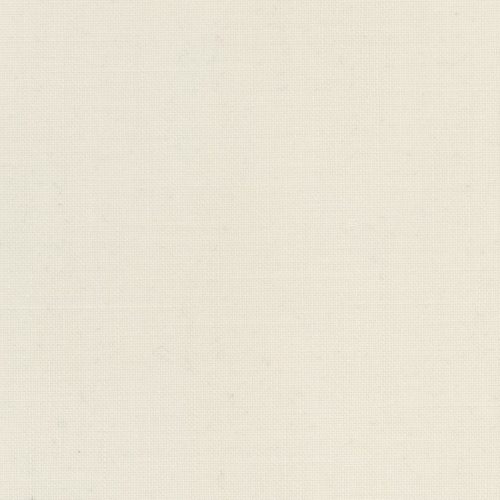

Off White

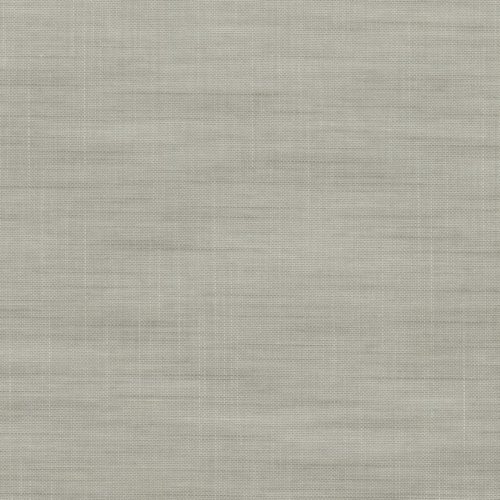

Pearl Linen

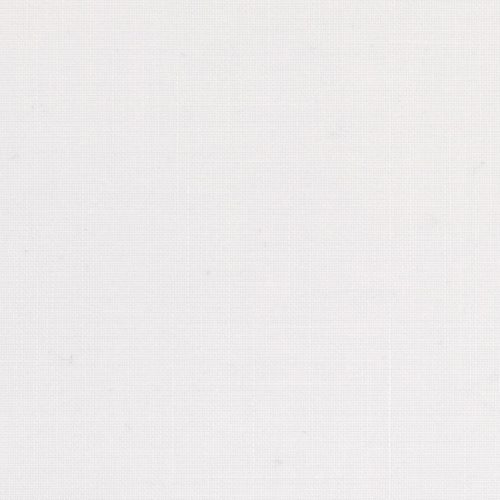

White

Specifications

Maximum Fabric/Shade Width: 118″
UV Blockage: Approximately 81%
Composition: 100% Trevira CS
Fabric Weight: 2.94 oz/yd²
Fabric Thickness: 0.010″
Railroad Available: Yes
Fire Classification: NFPA 701-04 TM#1, California US Title 19
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization

Note: Several factors determine the maximum length of fabric. Please send project specific specifications to our quoting department for more information.

Care and Cleaning

Regular light dusting with a feather duster is suggested. A hand-held vacuum with low suction may also be used. When vacuuming, avoid pulling or stretching the fabric. Rigorous vacuuming is not recommended since this could distort the fabric. Alternatively, dirt and debris can be blown away using compressed air or a hand-held hair dryer on the cool setting. Spots can be cleaned by gently blotting with a soft, damp cloth or sponge, using lukewarm water and a mild detergent. Be careful not to apply too much pressure to the fabric. Let air dry.

Color
Brown
Dark Gray
Nutmeg
Off White
Pearl Linen
White

Solar Optical Properties

TSRSASTV
45223332
44263033
48292339
5836658
52301845
5838459
Color
Brown
Dark Gray
Nutmeg
Off White
Pearl Linen
White

Solar Height Gain Coefficient

CL-SDG
0.650.61
0.620.59
0.610.58
0.580.55
0.610.58
0.570.54

Solar Heat Gain Coefficient (SHGC), Solar Transmittance (TS), Solar Reflectance (AS), Solar Absorption (AS), Visual Light Transmittance (TV); 1/4 (6mm) Clear Glass, Single Glazing (CL-S); Double Glazing 4mm/16mm/4mm with low E-coating in position 3, space filled with Argon (DG); To calculate shading coefficient: SHGC CL-S/0.87. The above data is indicative.

* Please note that the Openness Factor is an approximation and may vary from color to color in the same fabric due to the color and manufacturing process.
