Striate
0% Openness
Print page

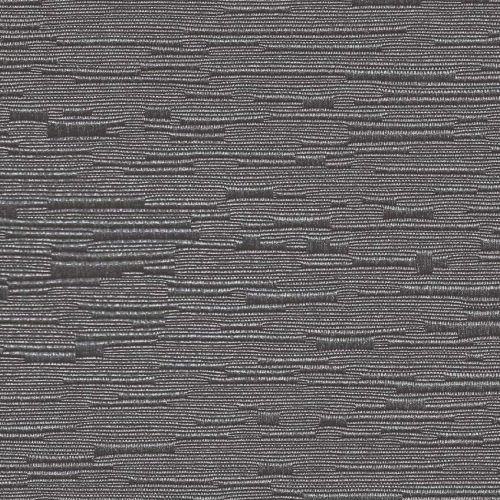

Alloy

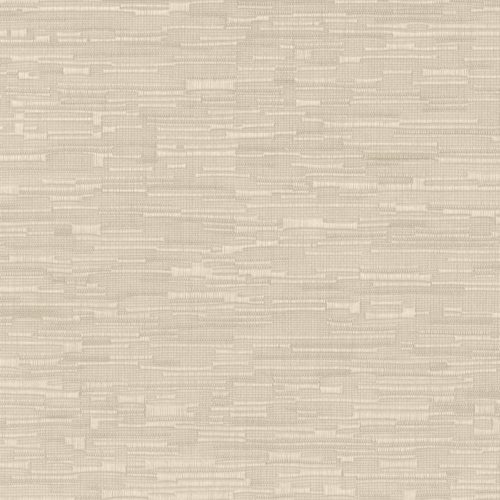

Beige

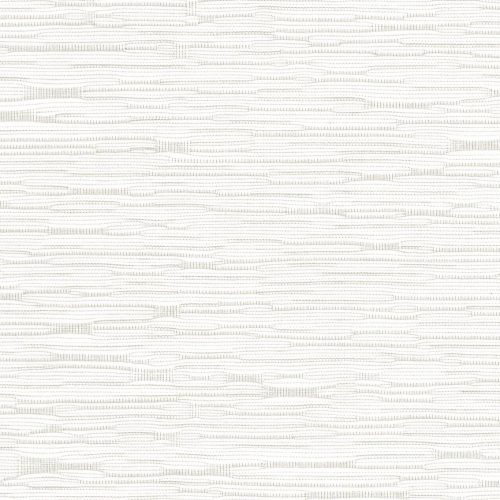

Bone

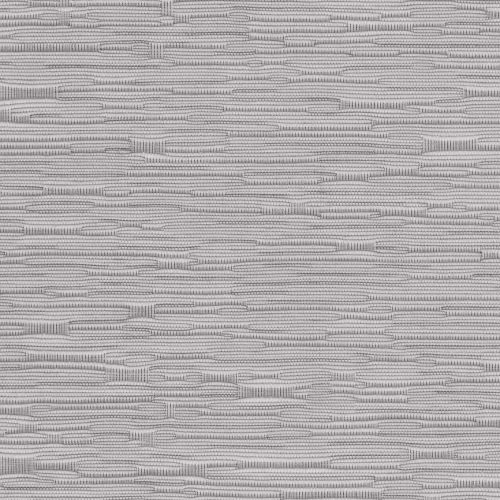

Mist

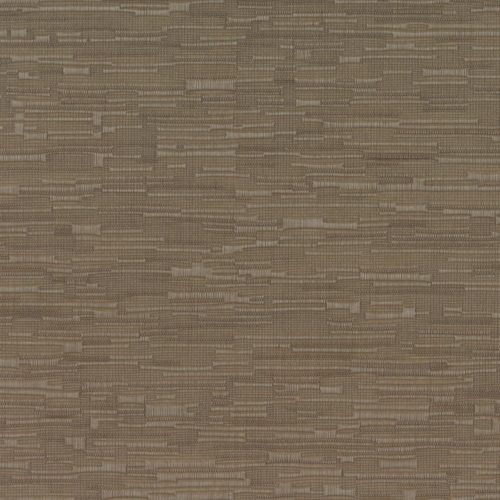

Taupe
Specifications
Maximum Fabric/Shade Width: 110″
UV Blockage: Approximately 100%
Composition: 100% Polyester with Acrylic Coating (PVC Free)
Fabric Weight: 14.5 oz/yd²
Fabric Thickness: 0.033″
Railroad Available: No
Printable Available: No
Fire Classification: NFPA 701-10, TM#1, California U.S. Title 19
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization
Note: Several factors determine the maximum length of fabric. Please send project-specific specifications to our quoting department for more information.
Care and Cleaning
Fabric is recommended to be regularly dusted and cleaned with soft brush.
| Color |
|---|
| Alloy |
| Beige |
| Bone |
| Mist |
| Taupe |
Solar Optical Properties
| TS | RS | AS | TV |
|---|---|---|---|
| 0 | 75 | 24 | 0 |
| 0 | 75 | 24 | 0 |
| 0 | 75 | 24 | 0 |
| 0 | 75 | 24 | 0 |
| 0 | 75 | 24 | 0 |
| Color |
|---|
| Alloy |
| Beige |
| Bone |
| Mist |
| Taupe |
Solar Heat Gain Coefficient
| CL-S | DG |
|---|---|
| 0.27 | 0.32 |
| 0.27 | 0.32 |
| 0.27 | 0.32 |
| 0.27 | 0.32 |
| 0.27 | 0.32 |
* Please note that the Openness Factor is an approximation and may vary from color to color in the same fabric due to the color and manufacturing process.
The fenestration property tests were conducted by Matrix, Inc. at its Mesa, AZ solar laboratory. The samples were tested in accordance with ASHRAE Standard 74-1988 “Methods of Solar Optical Properties of Materials”. The solar transmittance (TS), solar reflectance (RS), solar absorptance (AS), visible light transmittance (TV) and Openness Factor were determined for fabric alone. The Shading Coefficients (SC) were determined for the fabric used with a 1/4” clear plate (Cl) and a 1/4” heat (HA) plate. The TS, RS, AS, and TV are expressed as percentages. The solar optical properties are used to calculate the shading coefficient. The shading coefficient represents the percentage of solar heat gain that is transmitted to the interior through the glass and shading system. Darker colors provide maximum glare reduction and visibility.
