Dawn (Printable)
1%, 3%, and 5% Openness
Print page

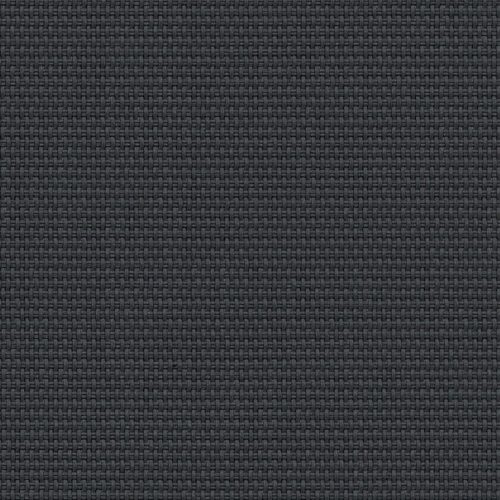

Charcoal/Charcoal

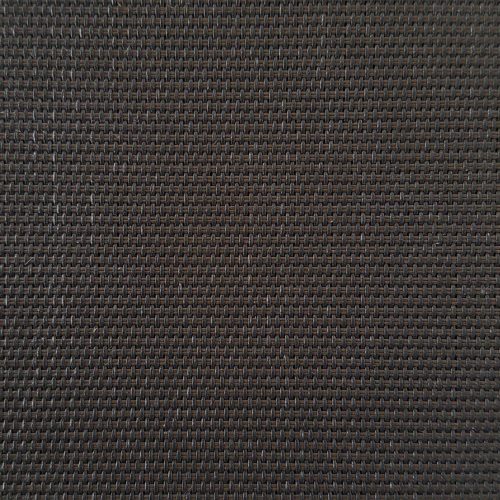

Charcoal/Cocoa

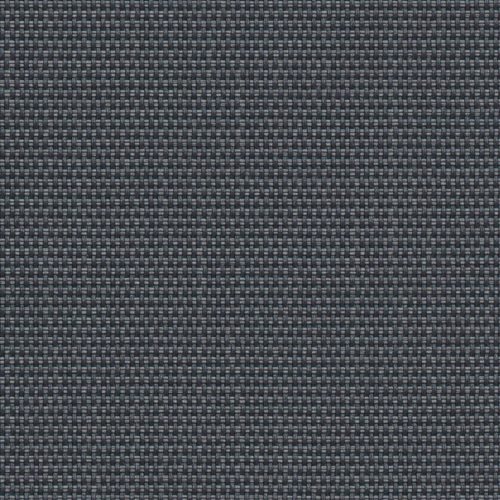

Charcoal/Grey

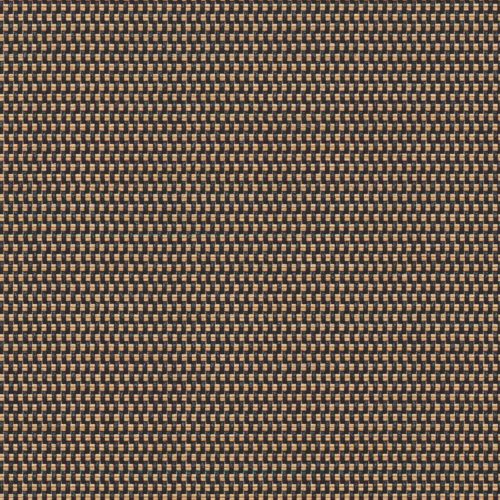

Charcoal/Light Orange

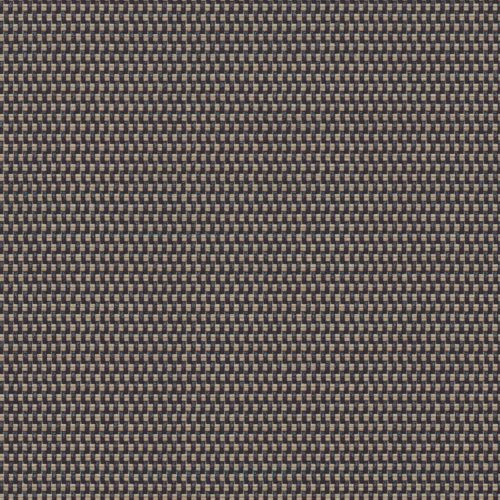

Charcoal/Taupe

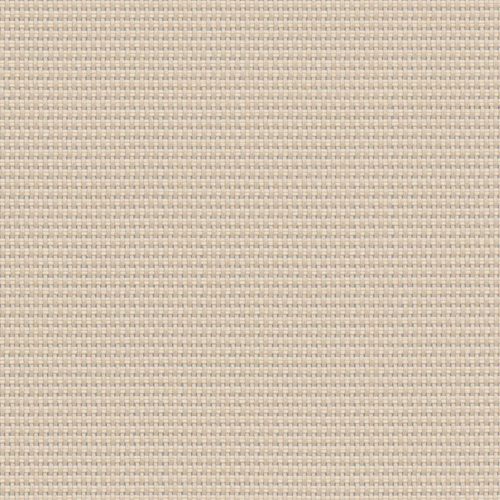

Linen/Stone

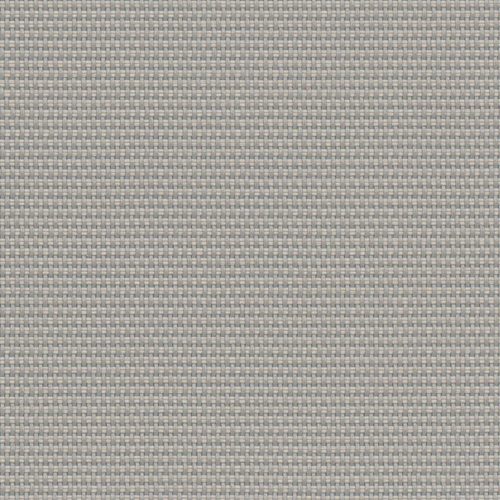

Pearl/Linen

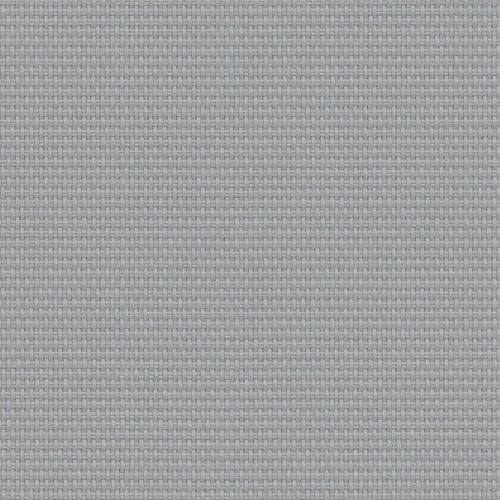

Pearl/Pearl

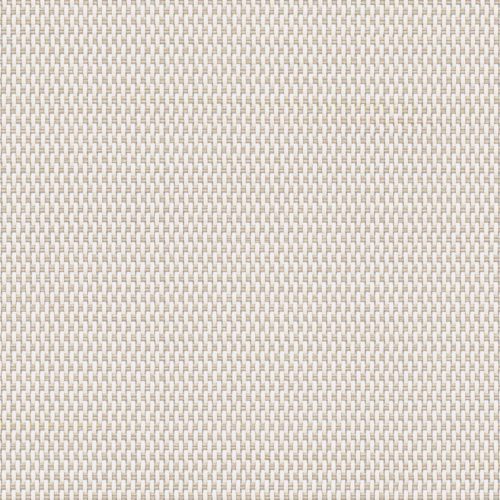

White/Linen

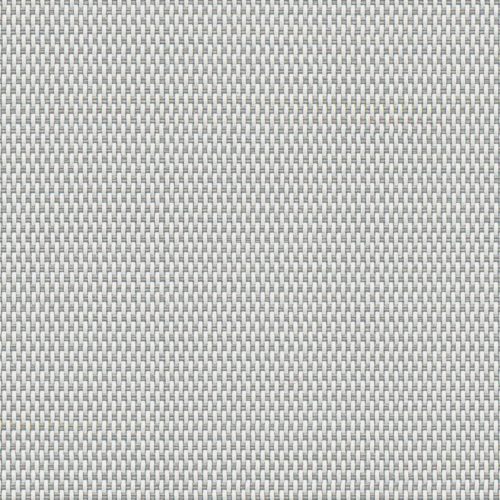

White/Pearl

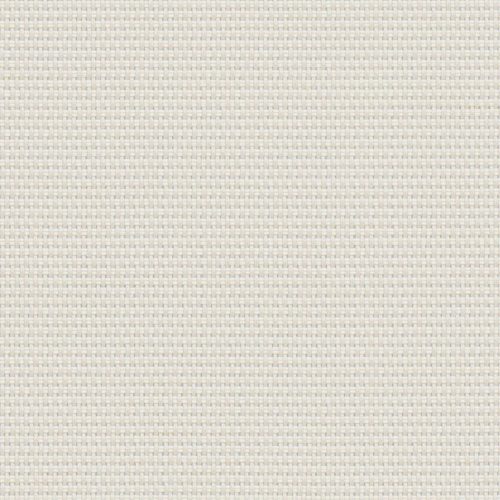

White/Stone

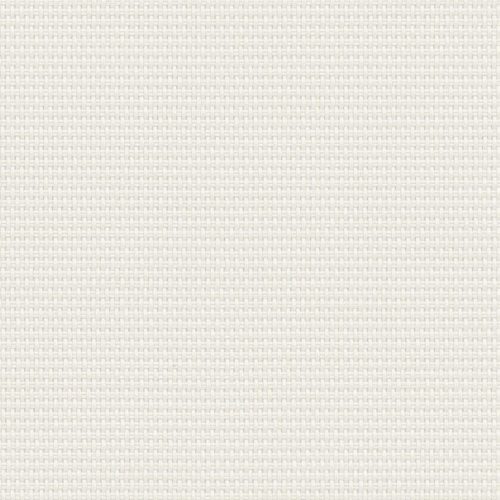

White/White
Specifications
Maximum Fabric Width: 122″
UV Blockage: Approximately 99%, 97% and 95%
Composition: 64% Vinyl, 36% Fiberglass
Fabric Weight: 13.12 oz/yd² (1%), 12.7 oz/yd² (3%), 11.3 oz/yd² (5%)
Fabric Thickness: 0.022″ (1%), 0.022″ (3%), 0.022″ (5%)
Railroad Available: No
Printable Available: Yes – 120″ Max
Fire Classification: NFPA 701-10 TM#1, California U.S. Title 19
Bacterial and Fungal Resistance: ASTM E2180 and ASTM G21
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization
Note: Several factors determine the maximum length of fabric. Please send project-specific specifications to our quoting department for more information.
Care and Cleaning
Remove dust with a vacuum cleaner or compressed air. Do not scrub. Do not use solvents or any abrasive substance which might damage the coating of the fabric. Clean with a sponge or soft brush dipped in soapy water using a mild detergent. Rinse with clean water. Leave the blind down until completely dry. You can also very gently rub the fabric with a clean white pencil eraser to remove small stains.
| Color |
|---|
| Charcoal/Charcoal |
| Charcoal/Cocoa |
| Charcoal/Grey |
| Charcoal/Light Orange |
| Charcoal/Taupe |
| Linen/Stone |
| Pearl/Linen |
| Pearl/Pearl |
| White/Linen |
| White/Pearl |
| White/Stone |
| White/White |
Fabric Properties - Thermal - Total Solar (1%)
| Rs (%) | As (%) | Ts (%) |
|---|---|---|
| 4 | 95 | 1 |
| 5 | 93 | 2 |
| 7 | 91 | 2 |
| 11 | 86 | 3 |
| 10 | 87 | 3 |
| 50 | 29 | 21 |
| 36 | 56 | 8 |
| 32 | 63 | 5 |
| 67 | 18 | 15 |
| 59 | 32 | 9 |
| 67 | 15 | 18 |
| 76 | 9 | 15 |
| Color |
|---|
| Charcoal/Charcoal |
| Charcoal/Cocoa |
| Charcoal/Grey |
| Charcoal/Light Orange |
| Charcoal/Taupe |
| Linen/Stone |
| Pearl/Linen |
| Pearl/Pearl |
| White/Linen |
| White/Pearl |
| White/Stone |
| White/White |
Optical (1%)
| Rv (%) | Tv (%) |
|---|---|
| 4 | 1 |
| 5 | 2 |
| 7 | 2 |
| 11 | 2 |
| 10 | 2 |
| 53 | 18 |
| 38 | 5 |
| 34 | 4 |
| 72 | 12 |
| 64 | 7 |
| 71 | 16 |
| 81 | 12 |
| Color |
|---|
| Charcoal/Charcoal |
| Charcoal/Cocoa |
| Charcoal/Grey |
| Charcoal/Light Orange |
| Charcoal/Taupe |
| Linen/Stone |
| Pearl/Linen |
| Pearl/Pearl |
| White/Linen |
| White/Pearl |
| White/Stone |
| White/White |
Fabric & Glass SHGC Improvement (1%)
| Interior | Exterior |
|---|---|
| 16 | 82 |
| 16 | 82 |
| 18 | 82 |
| 18 | 82 |
| 18 | 82 |
| 42 | 71 |
| 34 | 82 |
| 26 | 84 |
| 55 | 79 |
| 50 | 84 |
| 55 | 76 |
| 63 | 82 |
| Color |
|---|
| Charcoal/Charcoal |
| Charcoal/Cocoa |
| Charcoal/Grey |
| Charcoal/Light Orange |
| Charcoal/Taupe |
| Linen/Stone |
| Pearl/Linen |
| Pearl/Pearl |
| White/Linen |
| White/Pearl |
| White/Stone |
| White/White |
Fabric Properties - Thermal - Total Solar (3%)
| Rs (%) | As (%) | Ts (%) |
|---|---|---|
| 4 | 93 | 3 |
| 5 | 92 | 3 |
| 8 | 90 | 2 |
| 13 | 82 | 5 |
| 12 | 84 | 4 |
| 51 | 28 | 21 |
| 40 | 49 | 11 |
| 34 | 59 | 7 |
| 64 | 21 | 15 |
| 54 | 36 | 10 |
| 62 | 17 | 21 |
| 71 | 11 | 18 |
| Color |
|---|
| Charcoal/Charcoal |
| Charcoal/Cocoa |
| Charcoal/Grey |
| Charcoal/Light Orange |
| Charcoal/Taupe |
| Linen/Stone |
| Pearl/Linen |
| Pearl/Pearl |
| White/Linen |
| White/Pearl |
| White/Stone |
| White/White |
Optical (3%)
| Rv (%) | Tv (%) |
|---|---|
| 4 | 3 |
| 5 | 3 |
| 8 | 2 |
| 13 | 5 |
| 14 | 4 |
| 53 | 16 |
| 42 | 8 |
| 36 | 5 |
| 67 | 11 |
| 58 | 8 |
| 66 | 18 |
| 76 | 16 |
| Color |
|---|
| Charcoal/Charcoal |
| Charcoal/Cocoa |
| Charcoal/Grey |
| Charcoal/Light Orange |
| Charcoal/Taupe |
| Linen/Stone |
| Pearl/Linen |
| Pearl/Pearl |
| White/Linen |
| White/Pearl |
| White/Stone |
| White/White |
Fabric & Glass SHGC Improvement (3%)
| Interior | Exterior |
|---|---|
| 13 | 84 |
| 13 | 84 |
| 16 | 87 |
| 18 | 84 |
| 18 | 84 |
| 39 | 76 |
| 34 | 84 |
| 29 | 87 |
| 50 | 82 |
| 45 | 84 |
| 47 | 74 |
| 55 | 76 |
| Color |
|---|
| Charcoal/Charcoal |
| Charcoal/Cocoa |
| Charcoal/Grey |
| Charcoal/Light Orange |
| Charcoal/Taupe |
| Linen/Stone |
| Pearl/Linen |
| Pearl/Pearl |
| White/Linen |
| White/Pearl |
| White/Stone |
| White/White |
Fabric Properties - Thermal - Total Solar (5%)
| Rs (%) | As (%) | Ts (%) |
|---|---|---|
| 4 | 93 | 3 |
| 5 | 90 | 5 |
| 8 | 86 | 6 |
| 13 | 80 | 7 |
| 13 | 81 | 6 |
| 50 | 28 | 22 |
| 39 | 49 | 12 |
| 33 | 57 | 10 |
| 61 | 20 | 19 |
| 52 | 33 | 15 |
| 61 | 18 | 21 |
| 71 | 10 | 19 |
| Color |
|---|
| Charcoal/Charcoal |
| Charcoal/Cocoa |
| Charcoal/Grey |
| Charcoal/Light Orange |
| Charcoal/Taupe |
| Linen/Stone |
| Pearl/Linen |
| Pearl/Pearl |
| White/Linen |
| White/Pearl |
| White/Stone |
| White/White |
Optical (5%)
| Rv (%) | Tv (%) |
|---|---|
| 4 | 3 |
| 5 | 4 |
| 8 | 5 |
| 13 | 7 |
| 13 | 5 |
| 52 | 18 |
| 41 | 9 |
| 35 | 7 |
| 64 | 15 |
| 56 | 12 |
| 65 | 18 |
| 75 | 16 |
| Color |
|---|
| Charcoal/Charcoal |
| Charcoal/Cocoa |
| Charcoal/Grey |
| Charcoal/Light Orange |
| Charcoal/Taupe |
| Linen/Stone |
| Pearl/Linen |
| Pearl/Pearl |
| White/Linen |
| White/Pearl |
| White/Stone |
| White/White |
Fabric & Glass SHGC % Improvement (5%)
| Interior | Exterior |
|---|---|
| 11 | 87 |
| 13 | 84 |
| 13 | 84 |
| 16 | 84 |
| 16 | 84 |
| 37 | 74 |
| 32 | 82 |
| 29 | 84 |
| 47 | 79 |
| 42 | 79 |
| 47 | 74 |
| 55 | 76 |
The fenestration property tests were conducted in accordance with EN 14501:2005, ASTM 891, ASTM E903-96: Solar Heat Gain Coefficient (SHGC), Solar Transmittance (TS), Solar Reflectance (RS), Solar Absorptance (AS), Visible Light Transmittance (TV); 4mm Clear Glass, Single Glazing (CL-S); Double Glazing 4mm/16mm/4mm with low E-coating in position 3, space filled with Argon (DG); To calculate shading coefficient: SHGC CL-S/0.87. The above data is indicative.
* Please note that the Openness Factor is an approximation and may vary from color to color in the same fabric due to the color and the manufacturing process.
