Roller Shades FR

Roller Shades

Roller Shades by Hunter Douglas Hospitality offers a wide variety of FR fabrics, with full motorization and automated controls, custom colors and designs, and a proprietary manual mechanism.

Recommended applications

  • Blackout
  • Light Filtering
  • Room Darkening

Key Features

  • Wide selection of FR fabrics with choices for color, openness, and design
  • RB 500 Roller Shades operating system. This system is exclusively designed and made by Hunter Douglas and is available through Hunter Douglas’ network of companies, including Hunter Douglas Hospitality
  • A variety of fascia and valance options
  • Versatile range of motors and controls
  • Child-safety features fully compliant with ANSI standards
  • Backed by our lifetime guarantee
Catch Restaurant, Alberta, Canada

Design Options

Fabric

Over 110 FR fabrics, with a variety of openness ranging from 0% to 30% in addition to seven printed roller shade collections and custom designs.

Dual Shades

Add versatility to any space by allowing two different styles of fabrics to the same window (one in front of the other).

Coupled Shades

Coupled shades utilize a single clutch to operate multiple shades.

Fascia

A simple extruded aluminum top treatment to conceal the shade mechanism from the front and sides. Offered in 3″ and 4″ standard profiles for single shades and 7″ for dual shades. Reverse roll is available upon request. Top and back cover are available on 3″ and 4″ profiles only.

Color Options: white, vanilla, aluminum, bronze, and black

Roller Shade Fabric Wrapped Header

Coordinate your roller shade fabric with a custom fabric wrapped header. The header is designed to house any of our RB 500 Roller Shade brackets. For available fabrics and design, click here.

Side Channels

To prevent light leakage at the sides of the shade, add extruded aluminum side channels to frame the window and guide the shade in place.

Color Options: white, vanilla, aluminum, bronze, and black

Pockets

The three-sided extruded aluminum pocket can be ceiling or surface mounted to accommodate a variety of roller shade needs. Available in 5.25″ and 9″, both sizes can house single and dual shades. A bottom closure can be added with side channels and the RB 500 bottom bar to allow for full blockout.

Color Options: white and aluminum

RB 500 Blockout System

Offered for the RB 500 3″ or 4″ fascia profile with top and back cover or a pocket with bottom closure, aluminum side channels, and RB 500 bottom bar, fitted with a light-blocking wool pile to prevent light leakage around edges and bottom of the shade.

Hembar

Default hembars are determined, per fabric, based on extensive testing. The available options are heat-sealed, fabric wrapped, exposed, and the RB 500 bottom.

Manual Shade Operation

Chain and crank operating systems are available. Standard and heavy-duty clutches operate with a stainless steel chain loop and clear plastic chain tensioner, compliant with ANSI/WCMA A100.1-2012. Crank operation allows the user to raise effortlessly and safely lower oversized and hard-to-reach windows with one easy-to-use crank. Available in left or right-side control and standard or reverse roll.

  • Standard roll: fabric rolls off the rear of the roller

  • Reverse roll: fabric rolls off the front of the roller



Motorized Shade Operation

RTS, Standard, and Battery operated motors available. For complete specifications, see Operating Innovation section.

Motor Options

Standard Motors

Standard motors are hard-wired and must connect to the control switch via a wired junction box.

  • Best used in new construction or where wire running is permitted
  • An electrician is required to supply power to the controls
  • Single and dual motor switches available
  • Quick Disconnect available for easy installation

RTS Motors

With the RTS (Radio Technology Somfy) motors, the end-user can have wireless control over any motorized window covering via a radio remote control or an RTS wall switch. This customizable and versatile motor is the recommended solution for hospitality settings. The motor options consist of a plug-in, battery-operated, and a solar-powered battery pack. All options are available with Quick Disconnect for easy installation. Quick Disconnect allows the electrician to wire the power supply before the shade installation; therefore, the shade installation does not need an electrician present.

RTS Controls

Radio Technology Somfy® (RTS) remote controls and wall switches allow for up to a 65 ft control range. The radio waves travel through walls eliminating the need to point or aim the transmitter at the window covering. With a simple press of a button, users can control all motorized window coverings individually or as a group with one control.

  • Wireless Wall Switch
  • Wireless Remote
  • Universal Interface
  • Time
  • Sun Sensor
  • TaHoma® RTS smartphone and tablet interface and voice-controlled with Amazon Alexa

Downloads

Request for Quote Forms

For more detailed product information please visit the Product Library

View More

Fabrics

All fabric meets NFPA 701 fire rating requirements. Color & fabric images are for illustration purposes only. For accurate specification, please request product samples.

Sort by

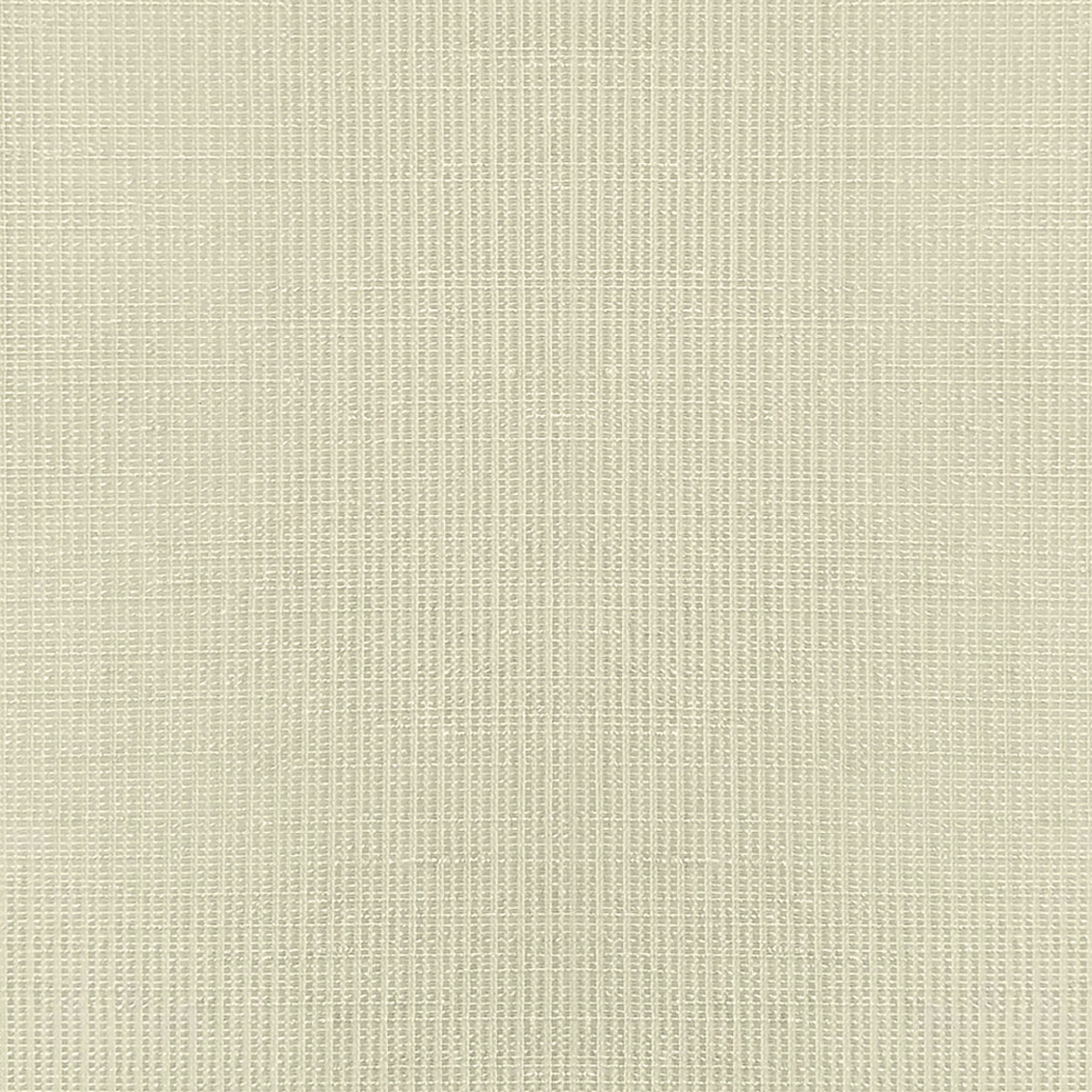

Afterglow

Openness

29%

Max Width

118"
Flicker

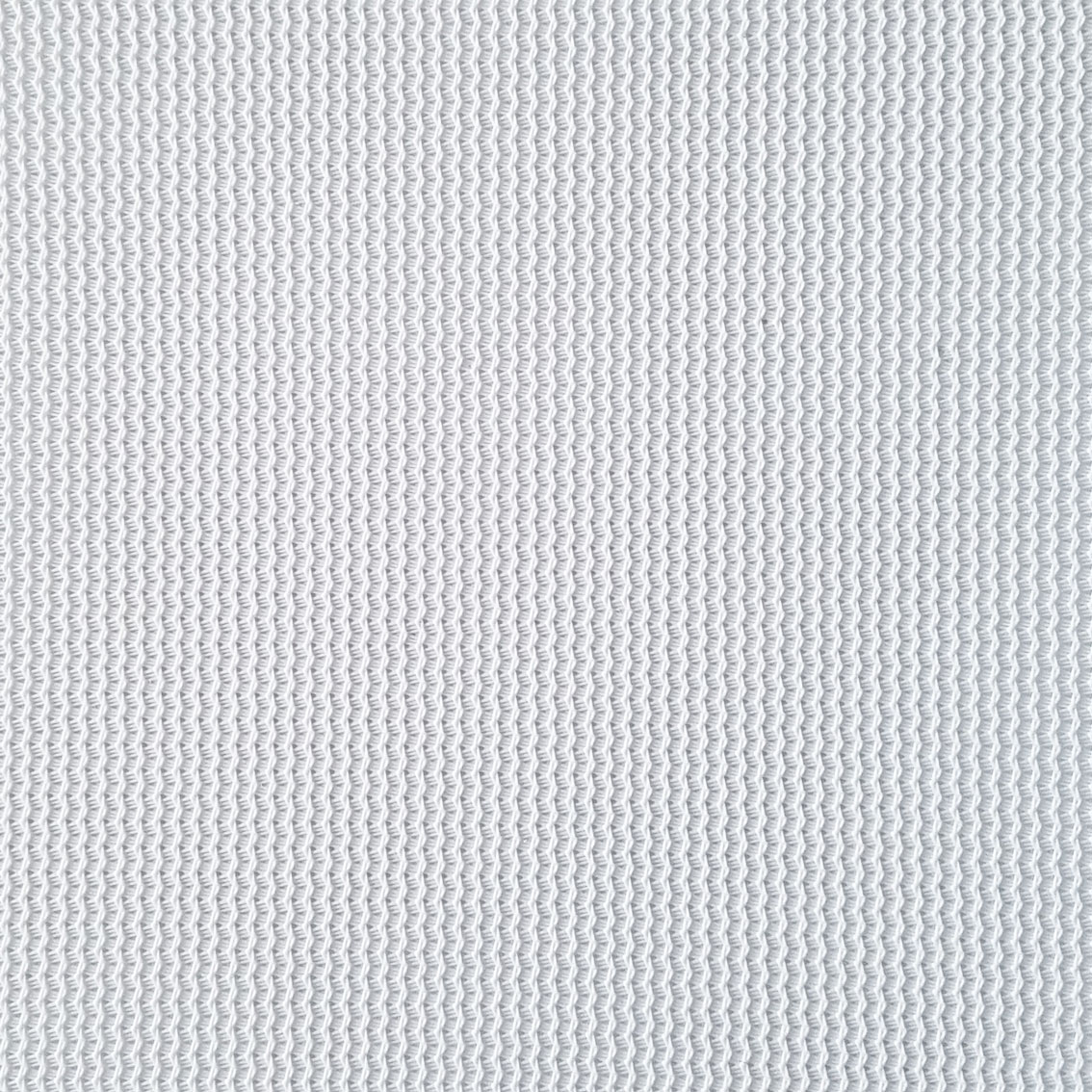

Astoria

Openness

10%

Max Width

94"
White

Bleecker

Openness

6%

Max Width

118"
Bourneville
Concrete
Dove
Putty
Steel
White

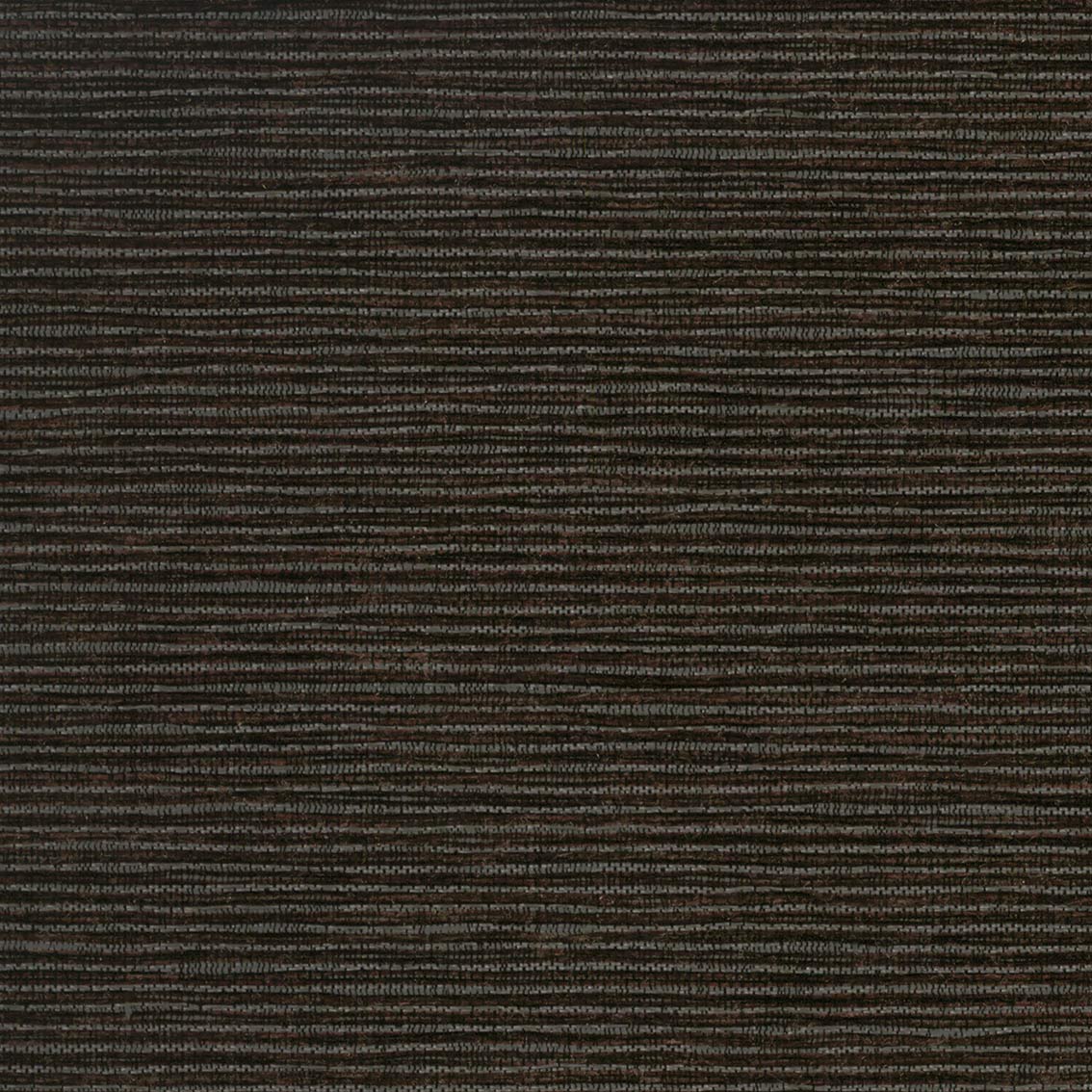

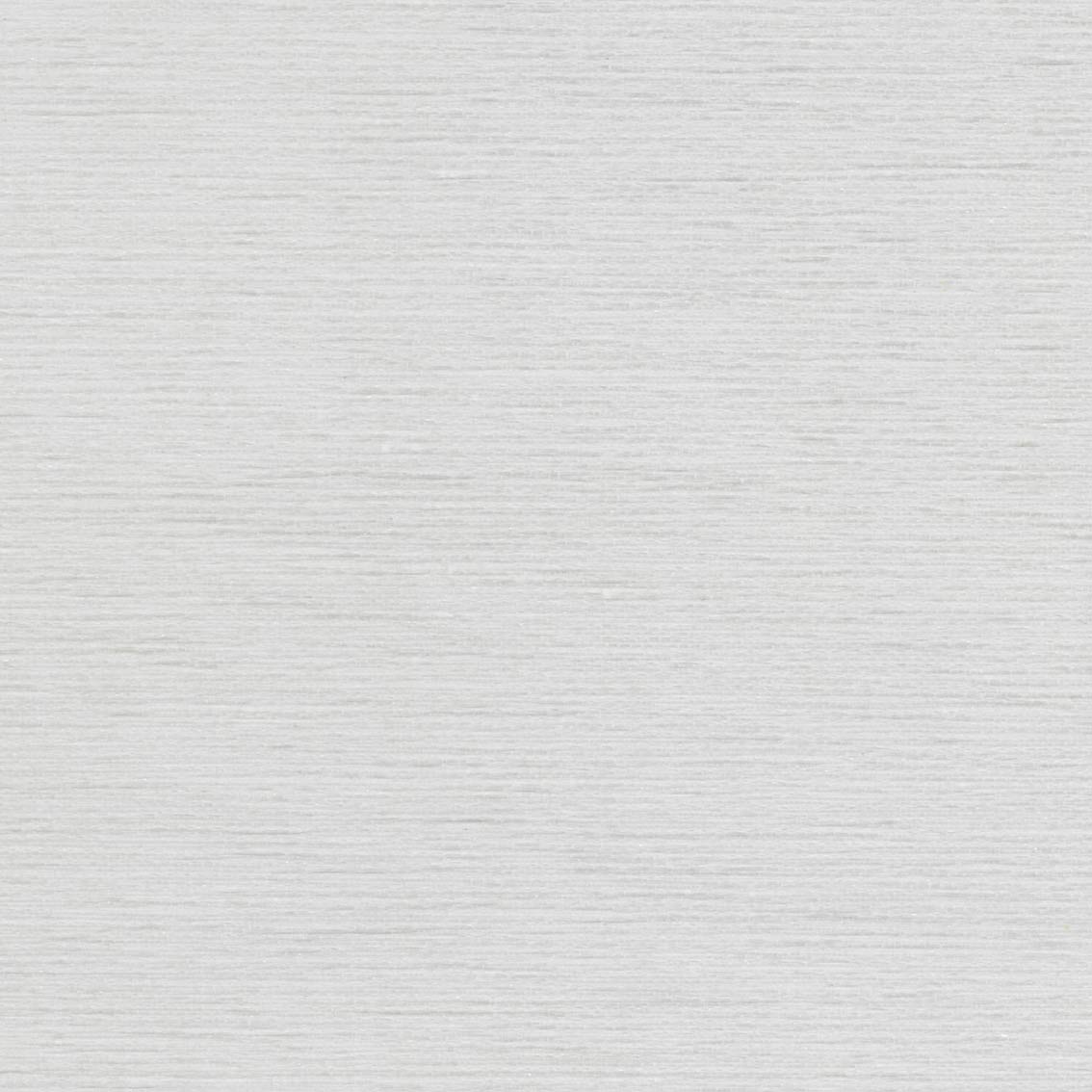

Broome

Openness

0%

Max Width

118"
Bourneville
Concrete
Dove

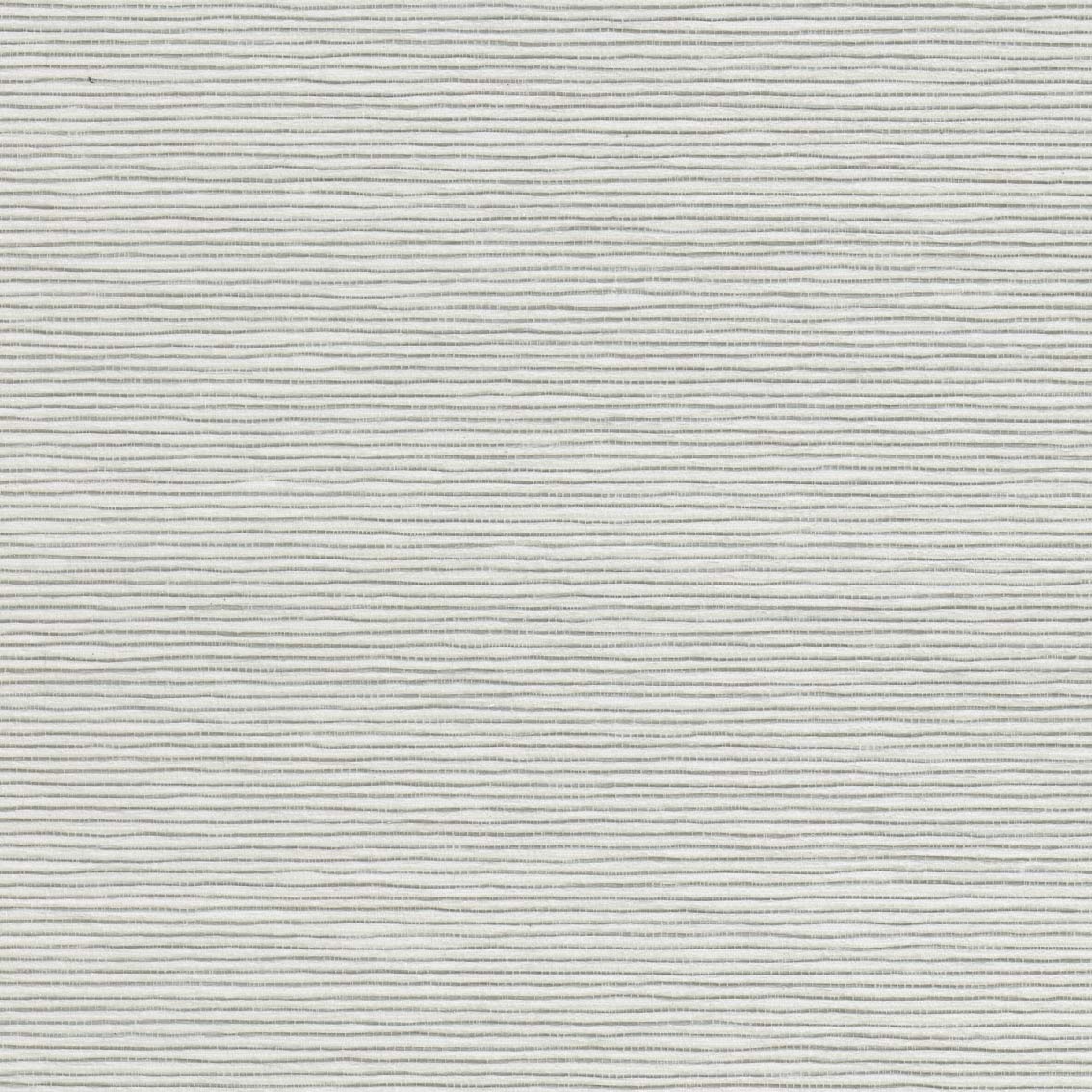

Putty

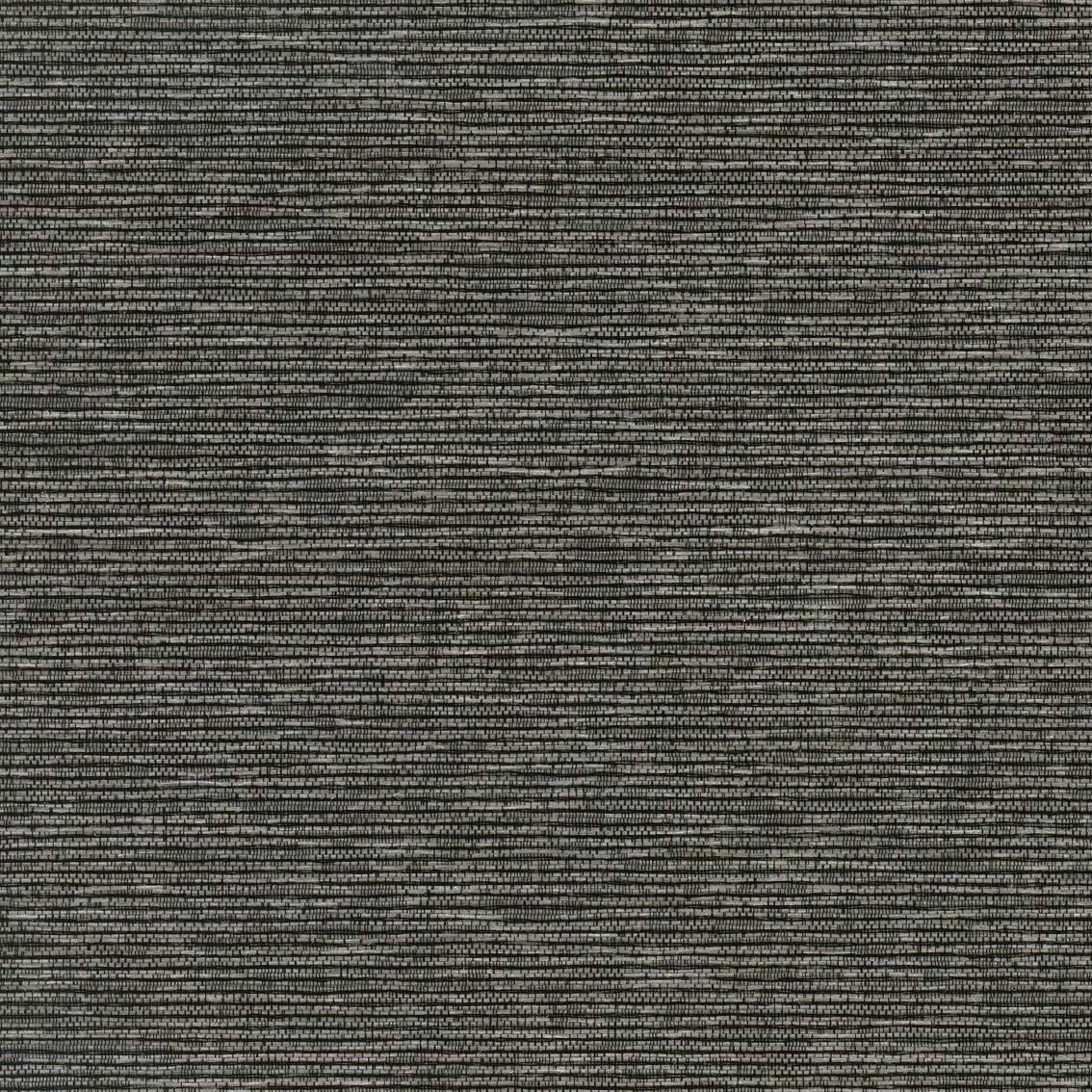

Steel
White

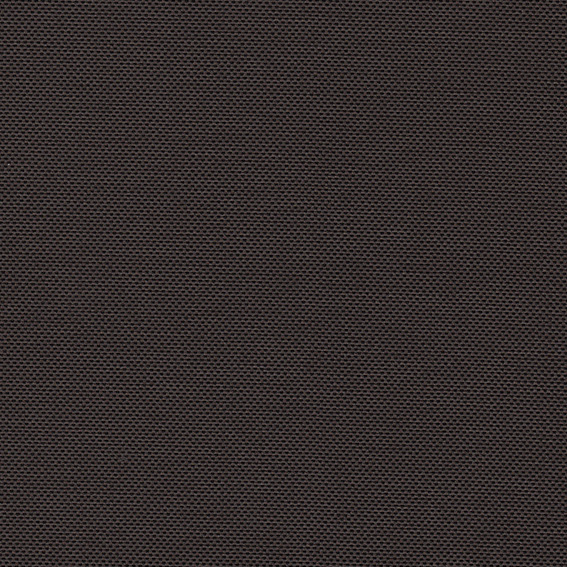

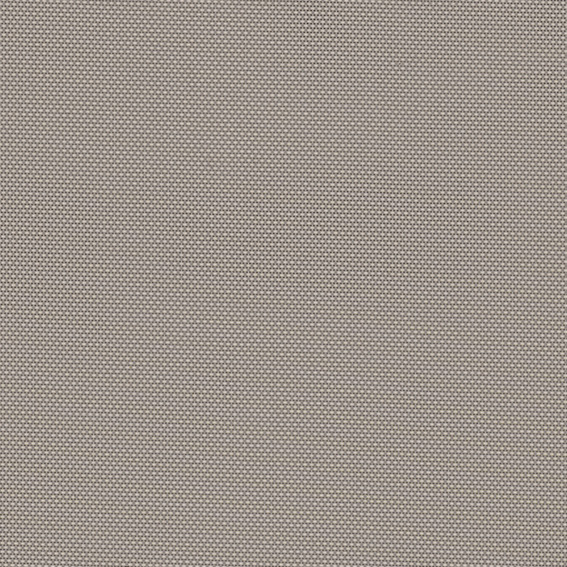

Clarity (Printable)

Openness

1% 3% 5% 10%

Max Width

122"

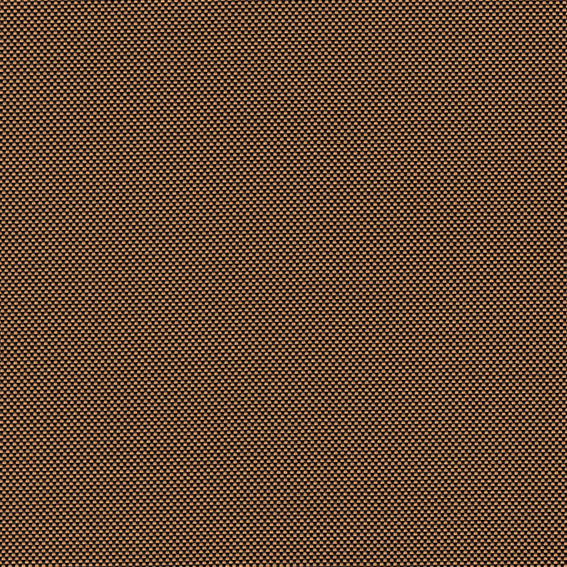

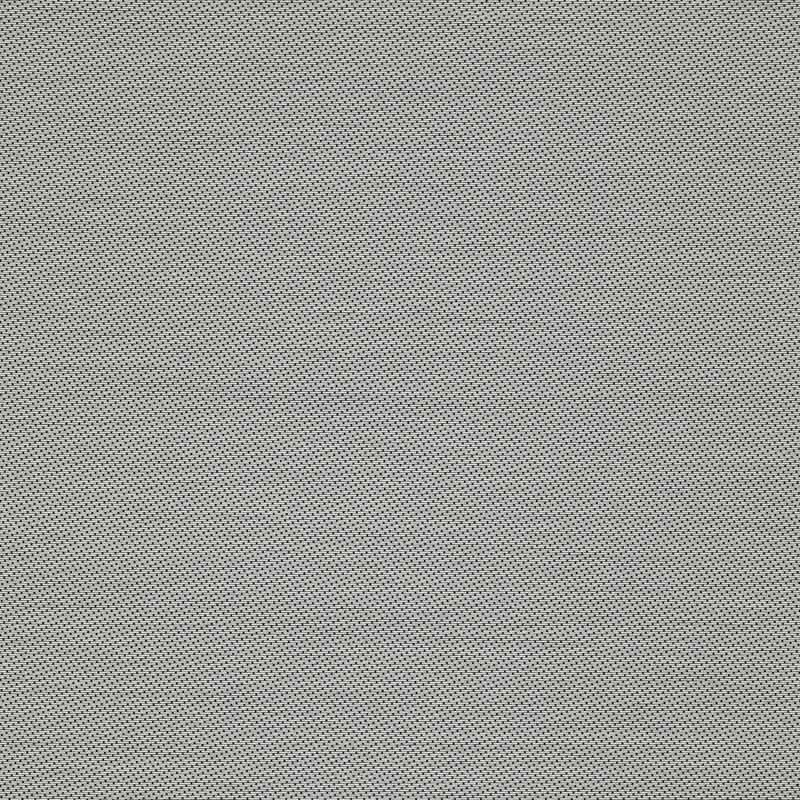

Charcoal/Apricot
Charcoal/Charcoal
Charcoal/Cocoa

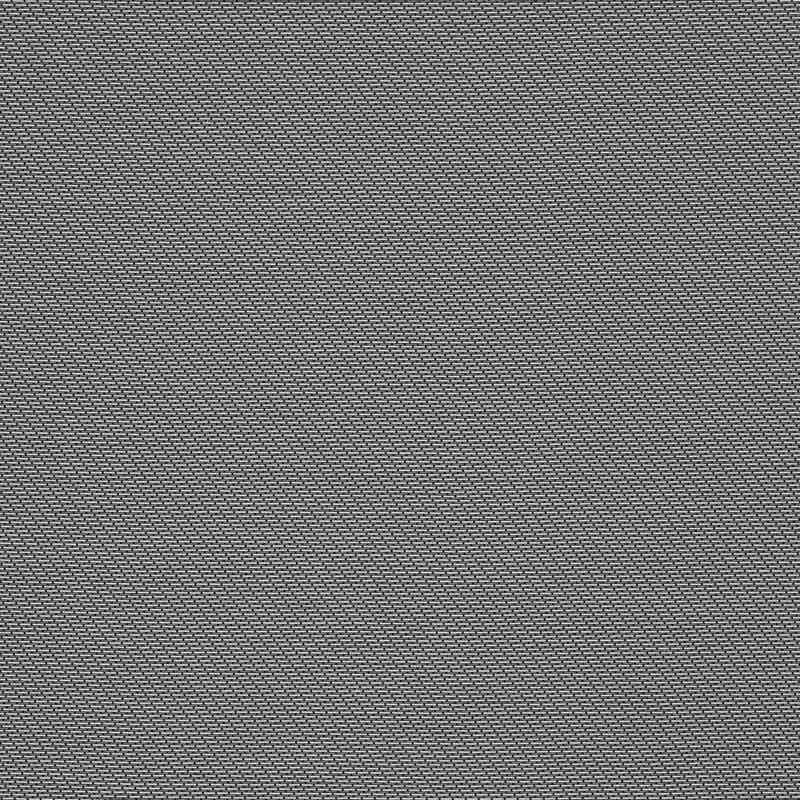

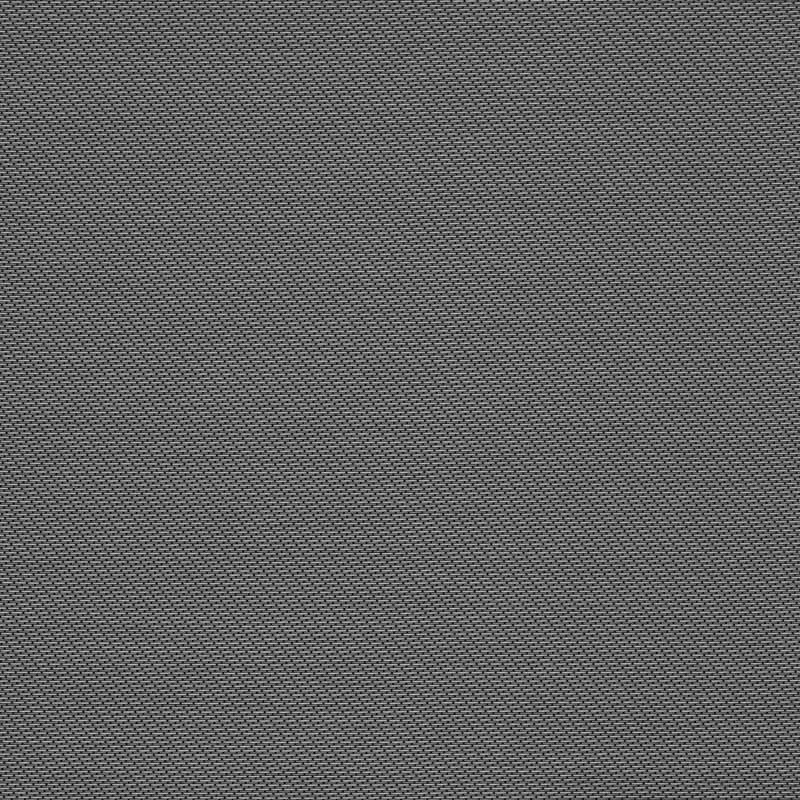

Charcoal/Grey-Stone

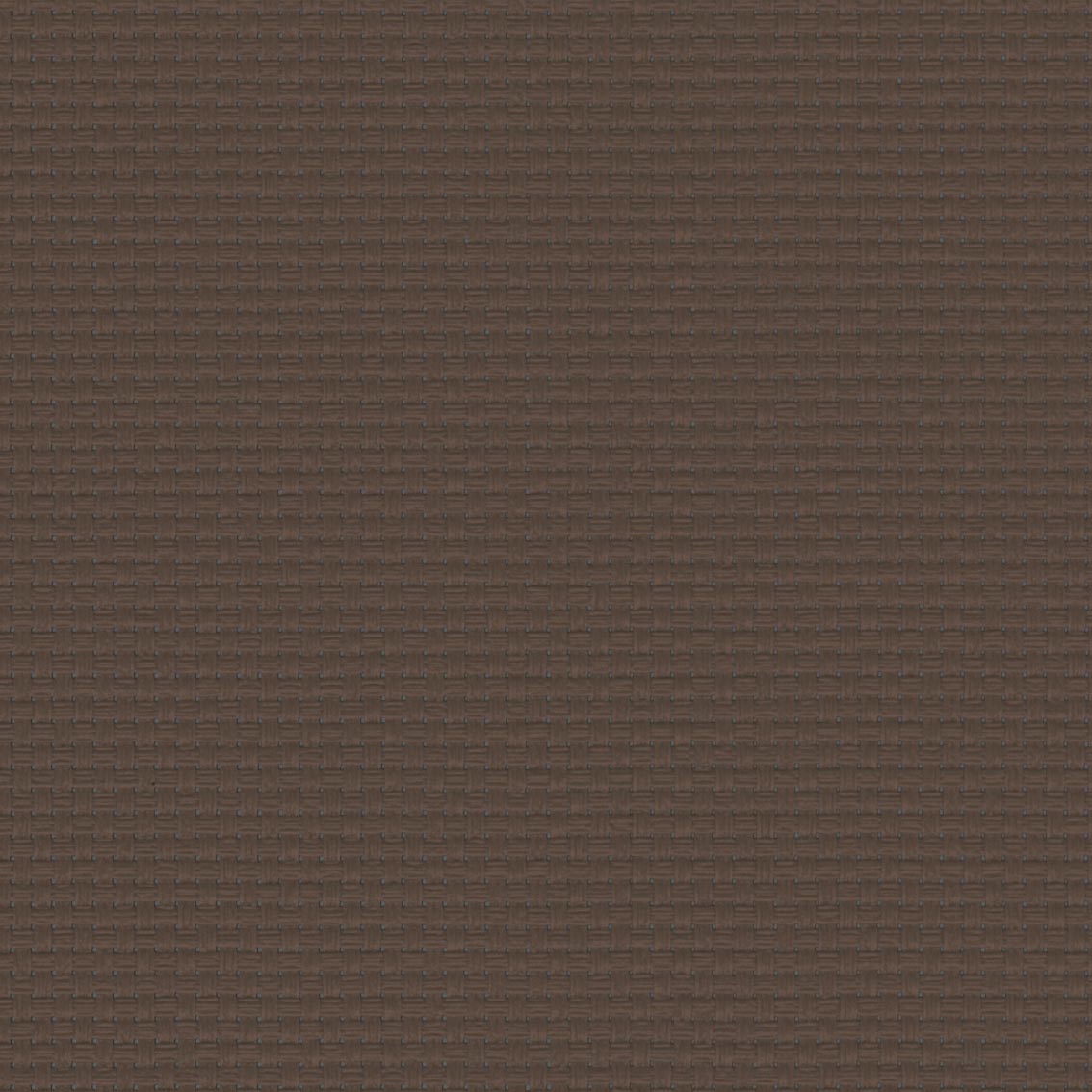

Cocoa/Cocoa
Available in 10% only

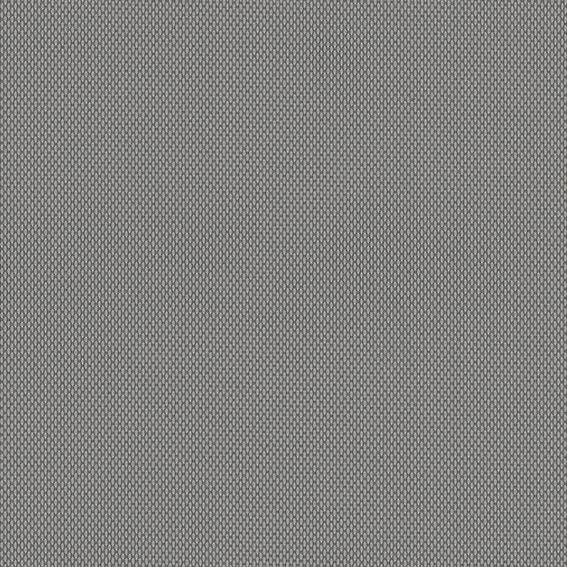

Pearl/Grey
Pearl/Linen

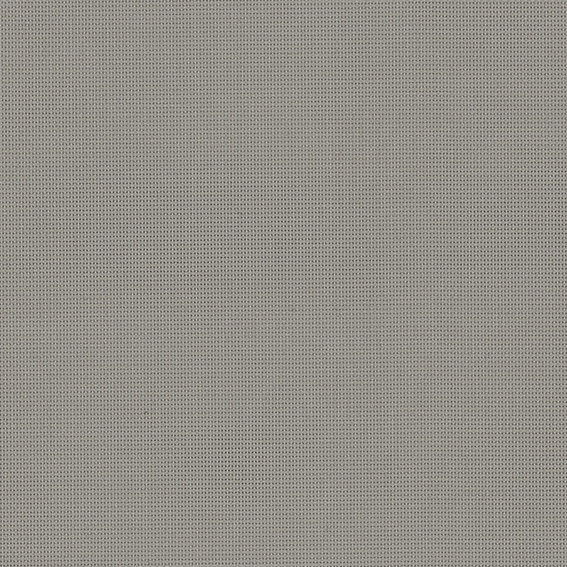

Pearl/Pearl
White/Pearl
White/Linen

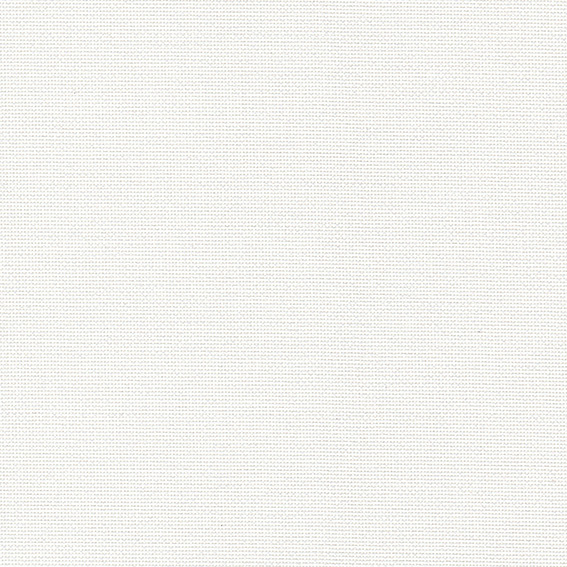

White/White

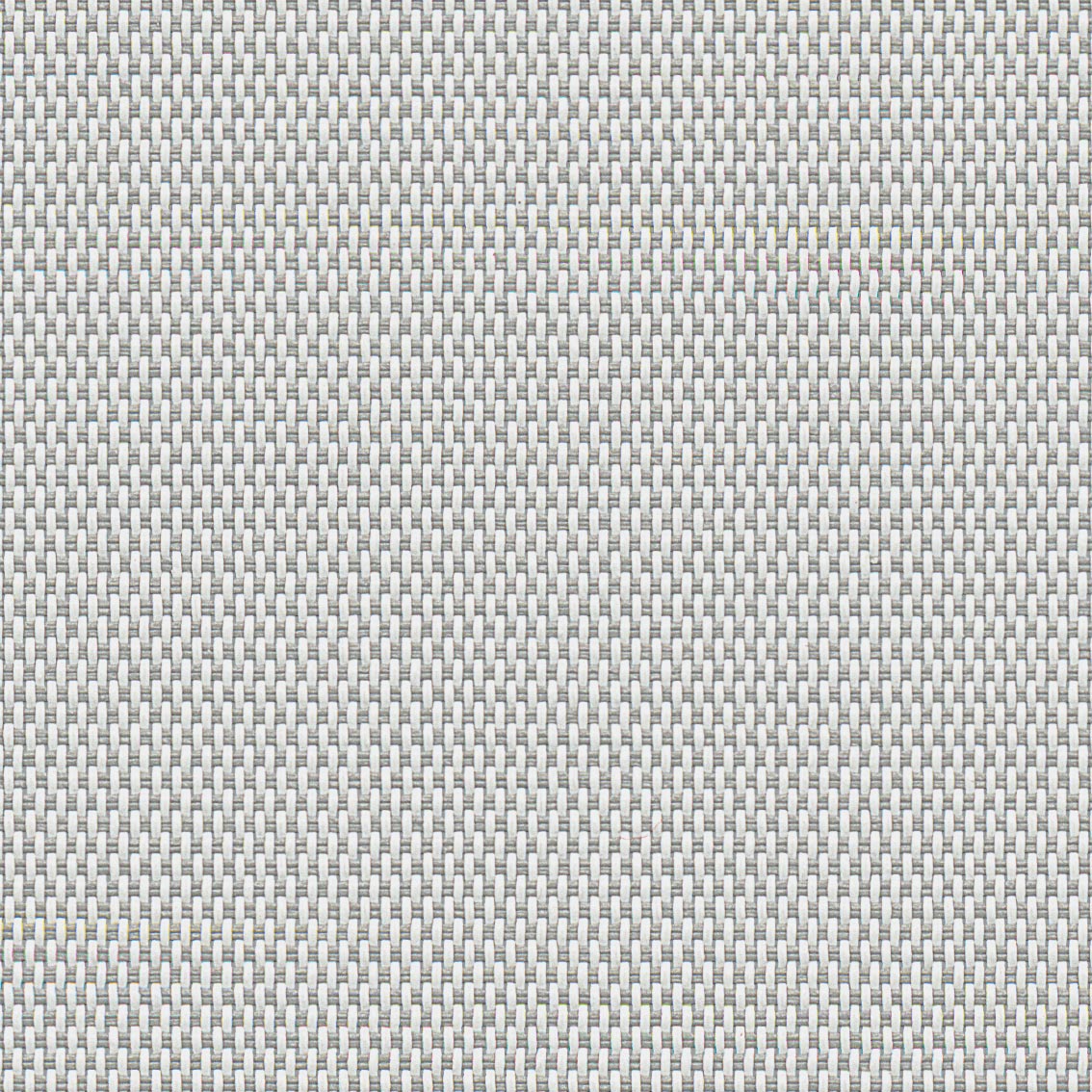

Dawn (Printable)

Openness

1% 3% 5%

Max Width

122"

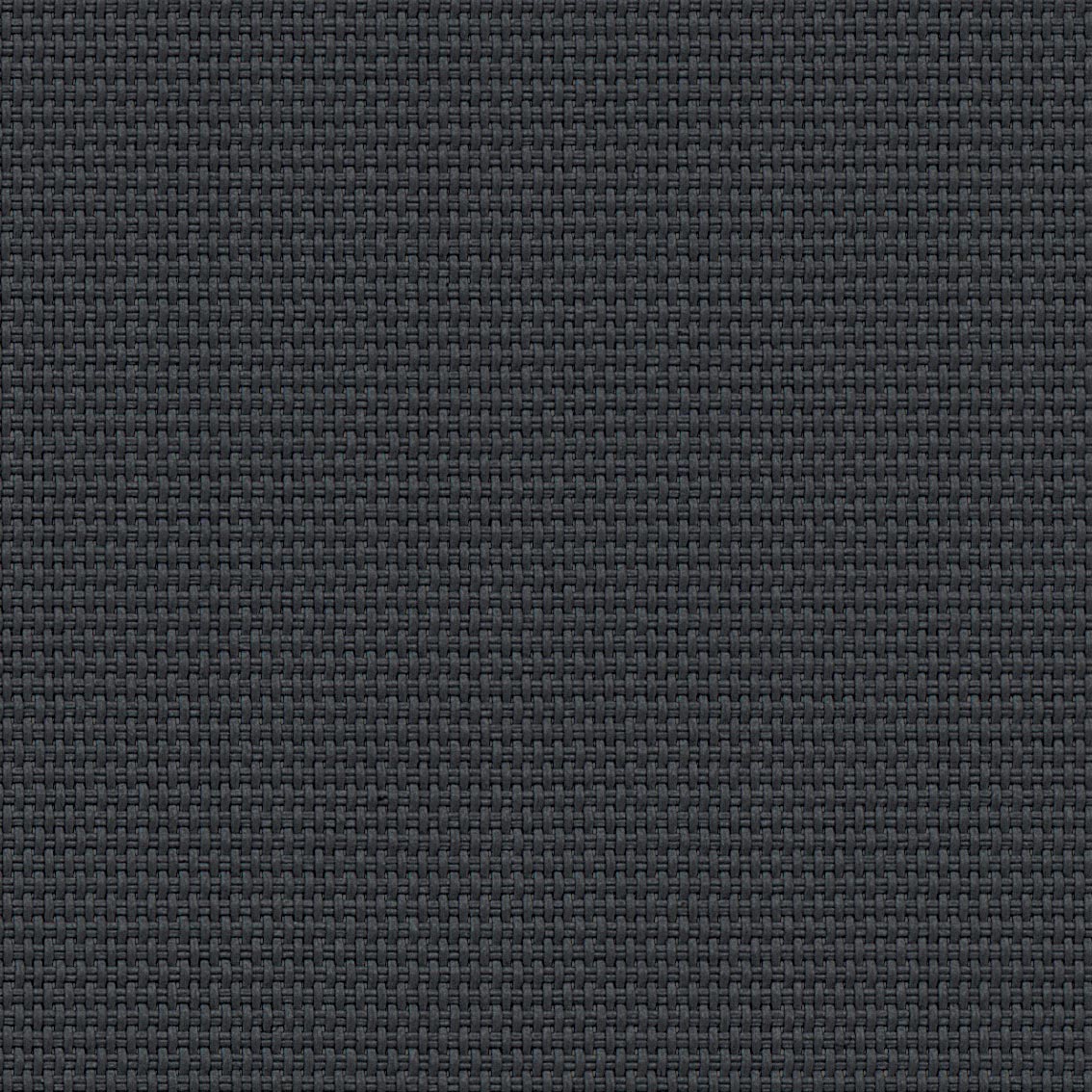

Charcoal/Charcoal

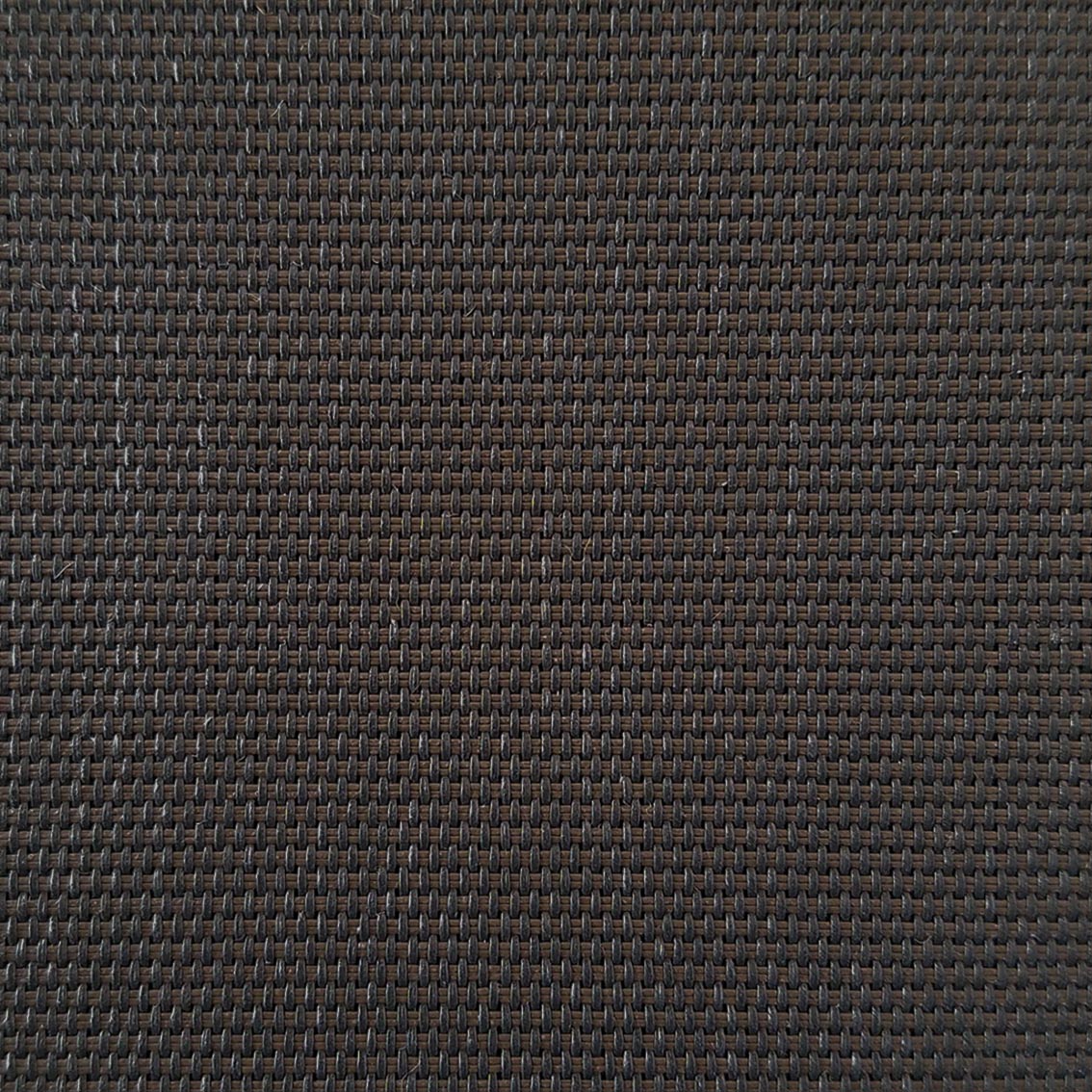

Charcoal/Cocoa

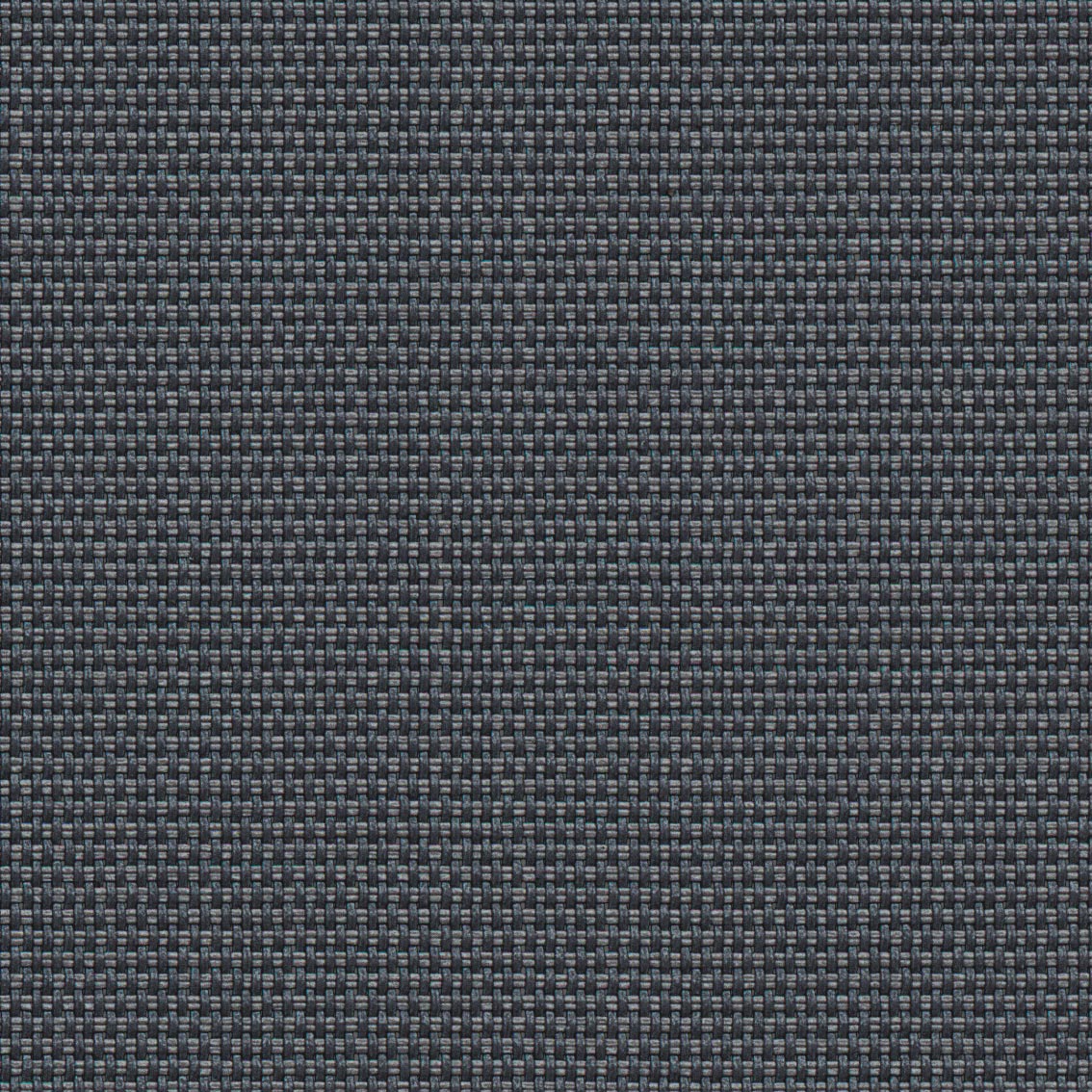

Charcoal/Grey

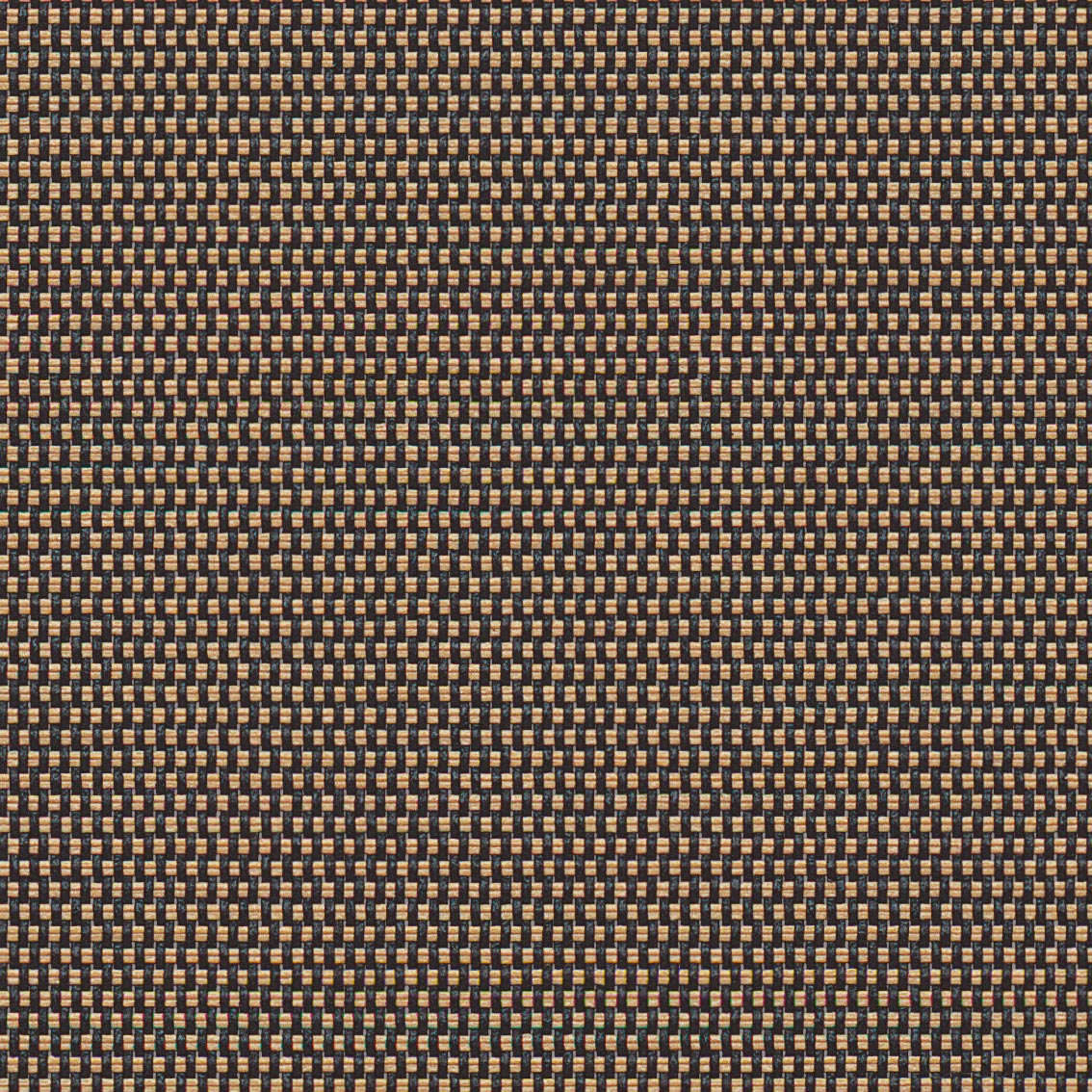

Charcoal/Light Orange

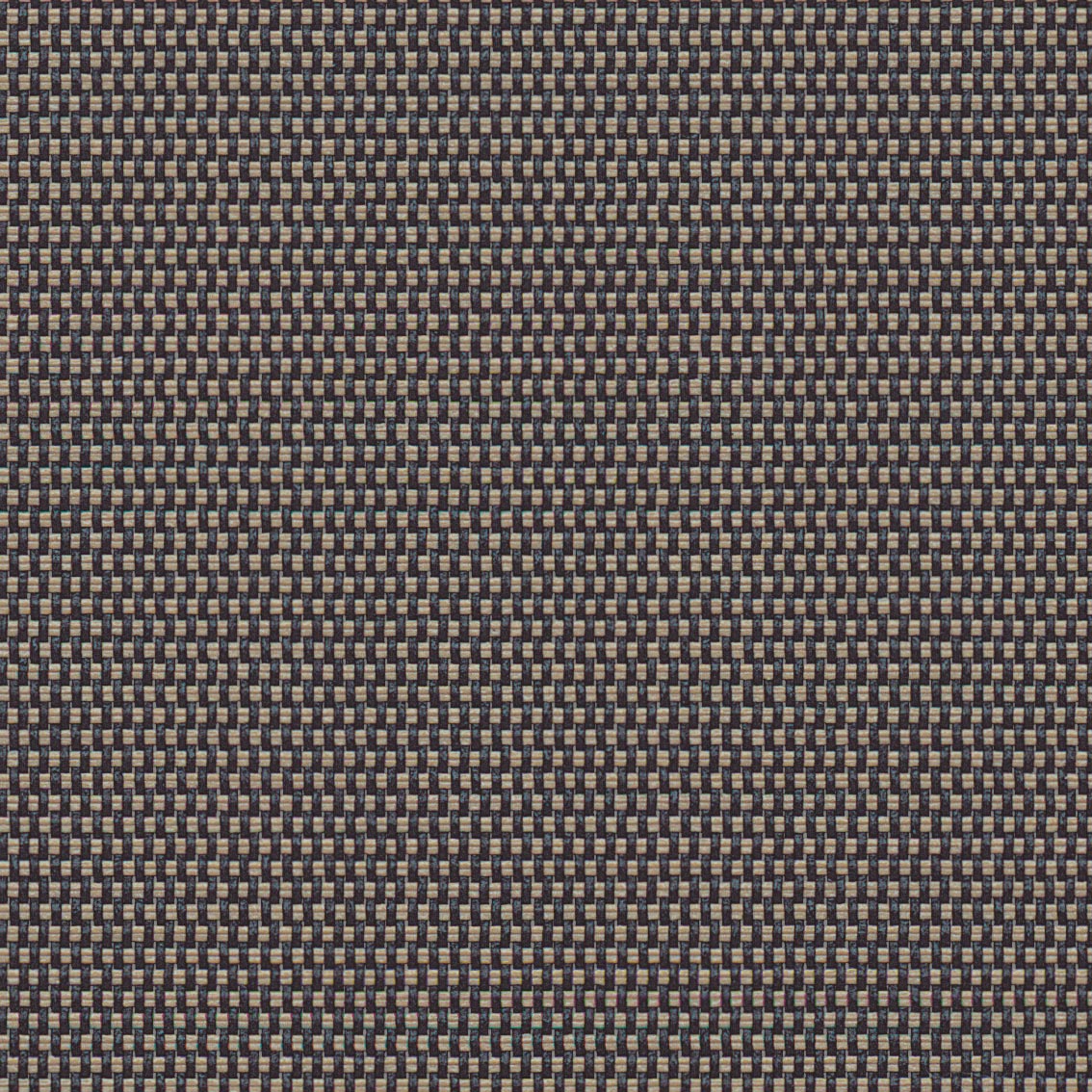

Charcoal/Taupe

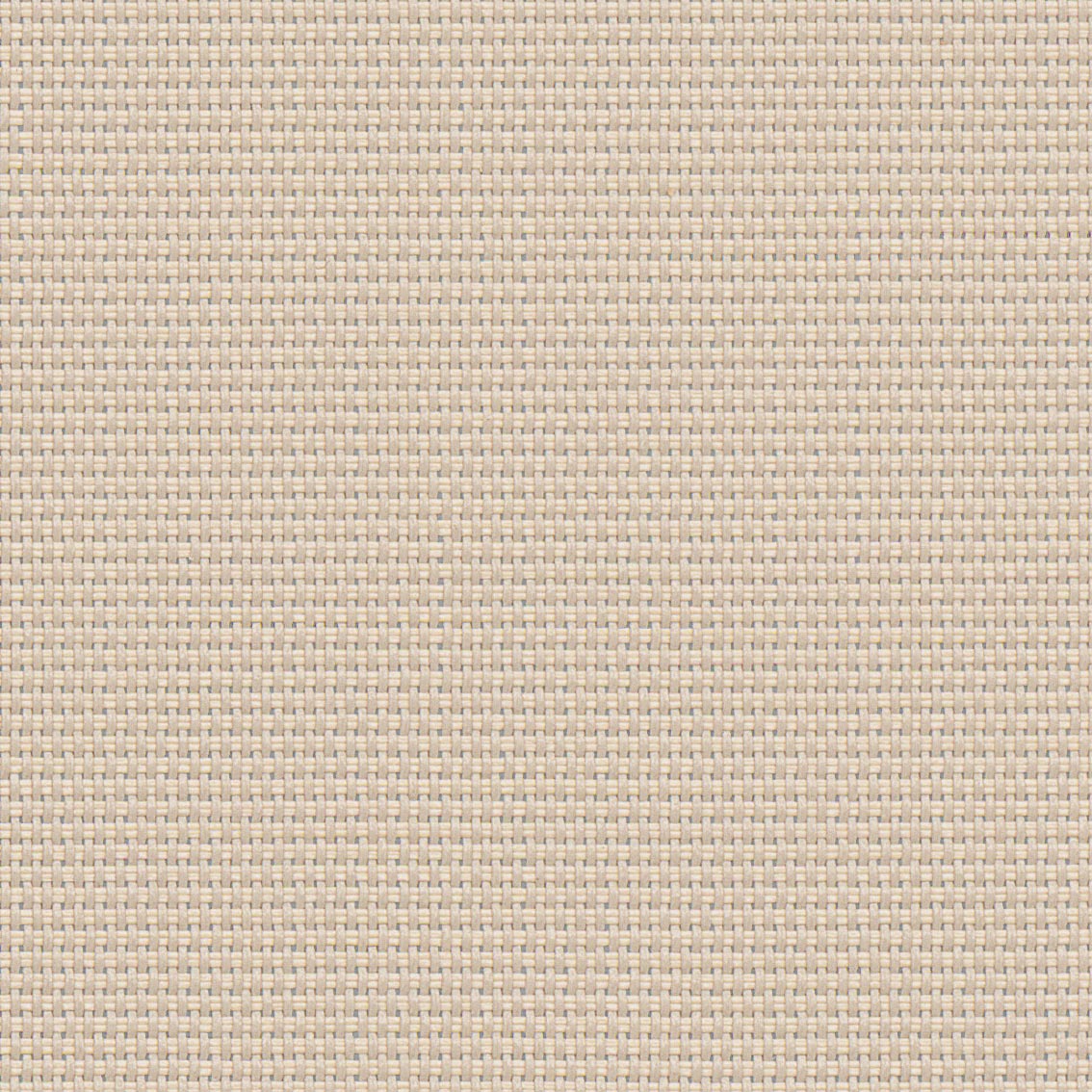

Linen/Stone

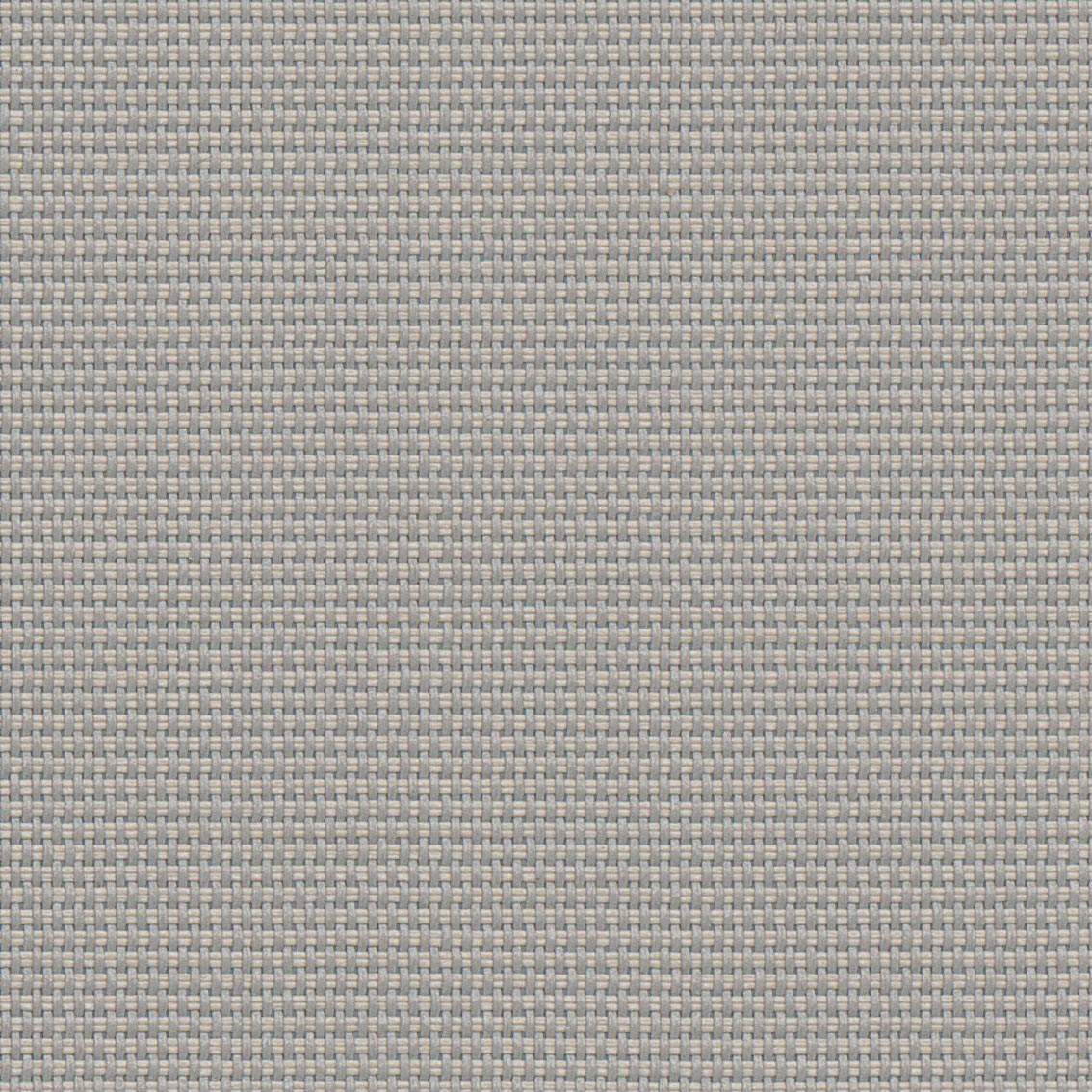

Pearl/Linen
Pearl/Pearl

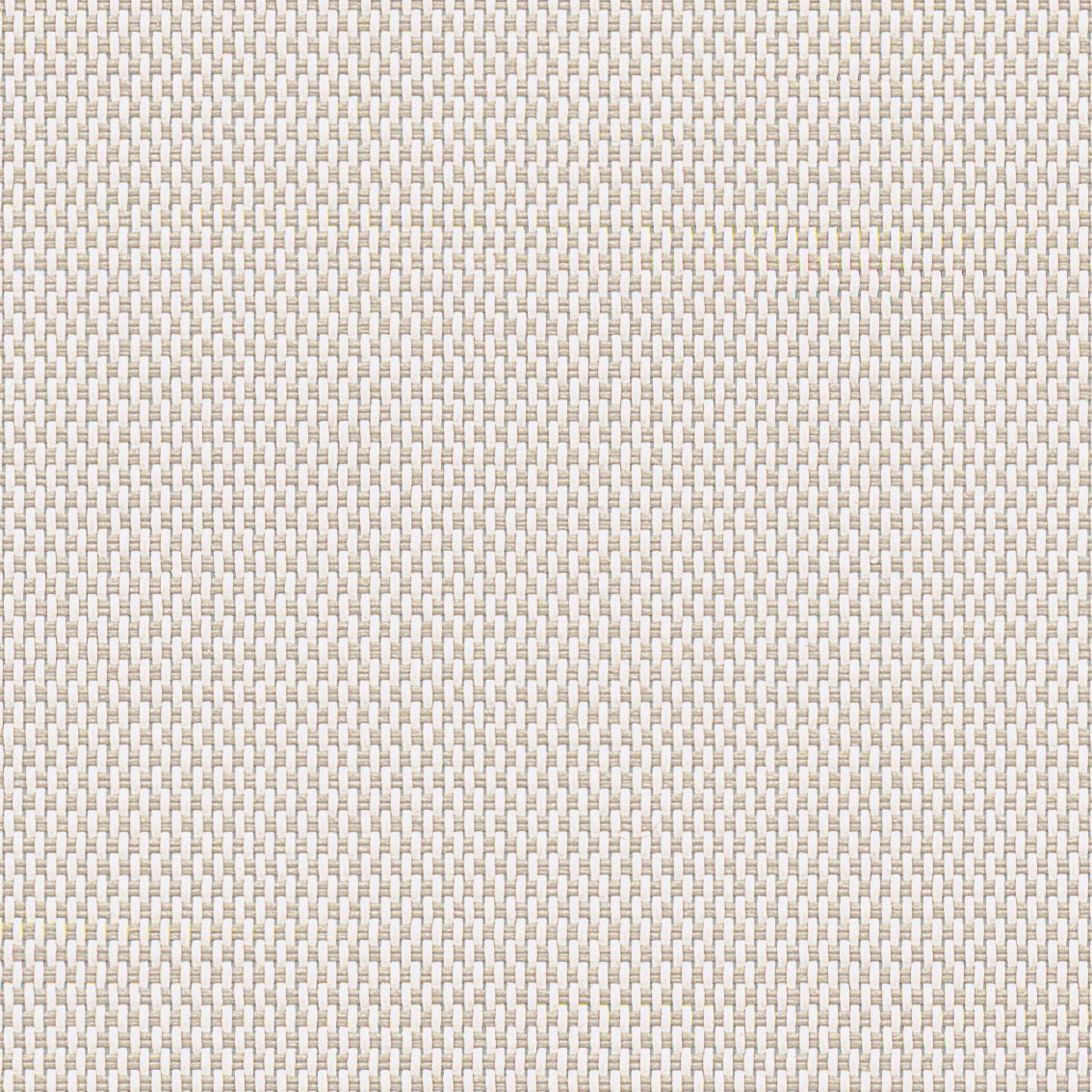

White/Linen
White/Pearl

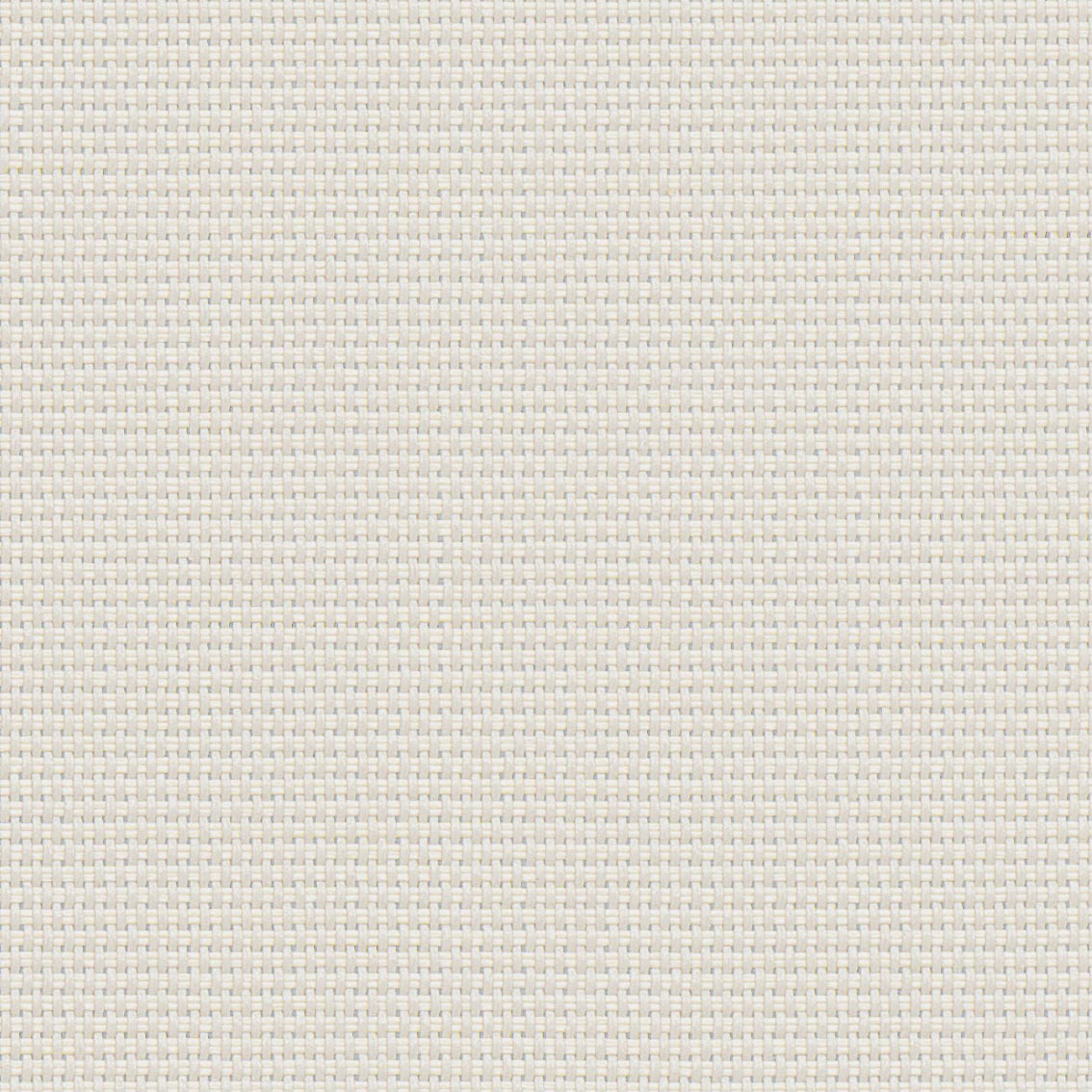

White/Stone

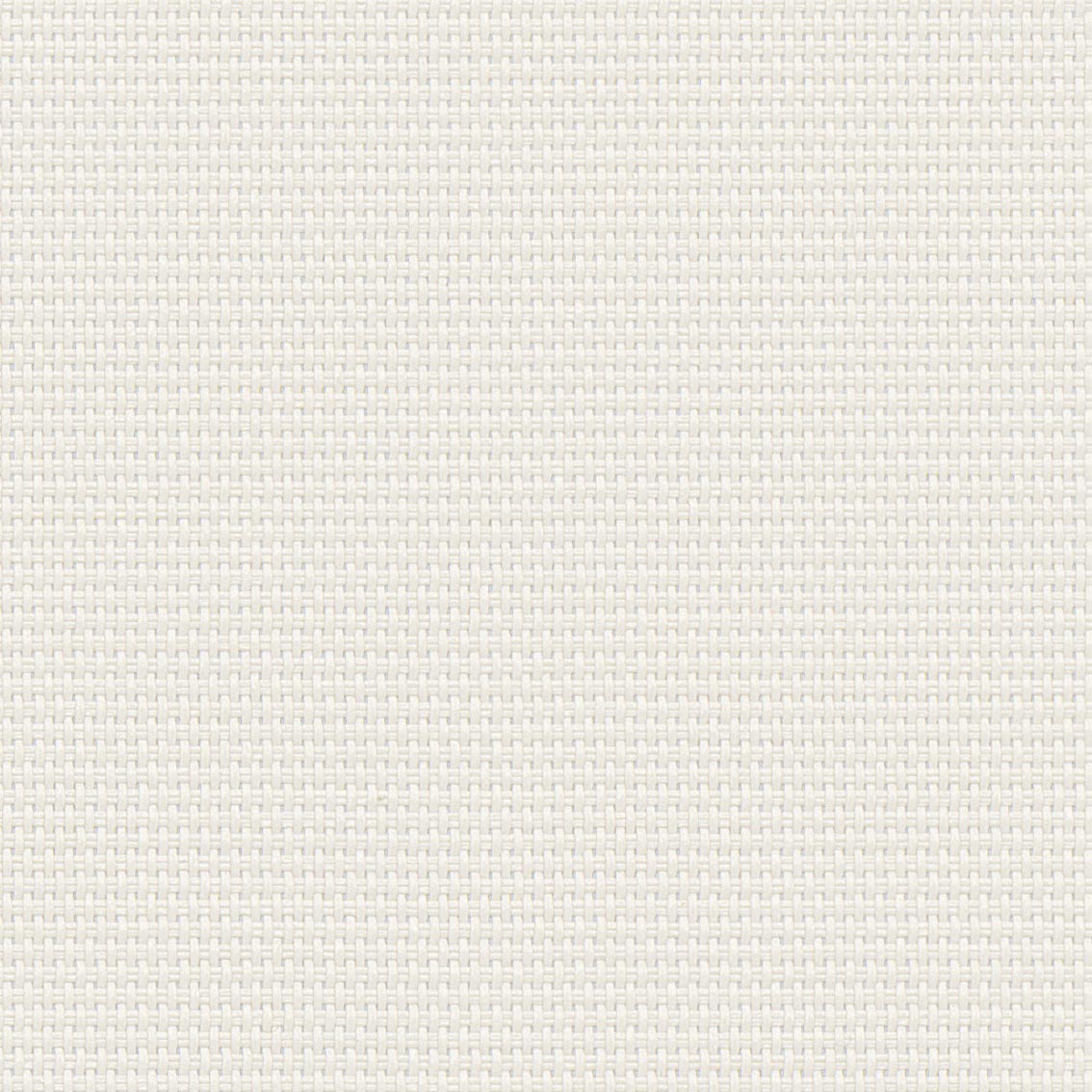

White/White

Eclipse™ (Printable)

Openness

0%

Max Width

126"
Beige

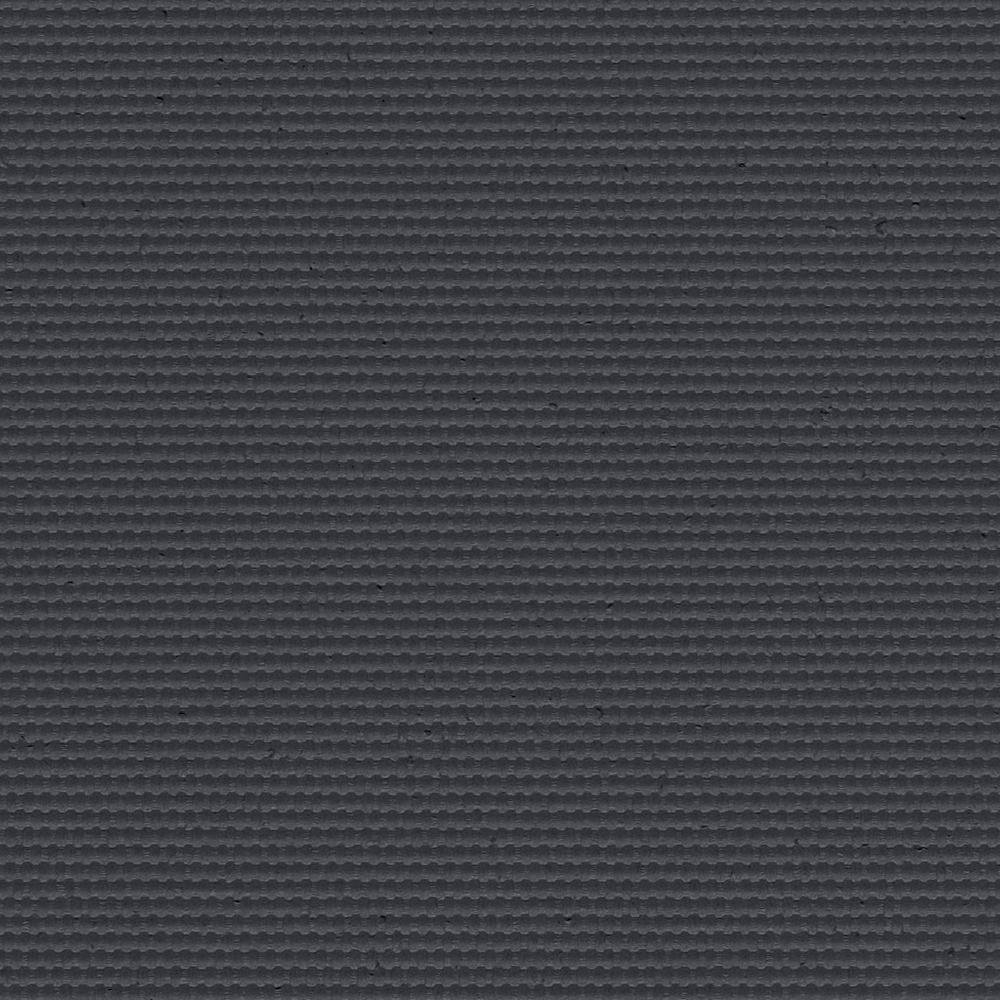

Black
Cream

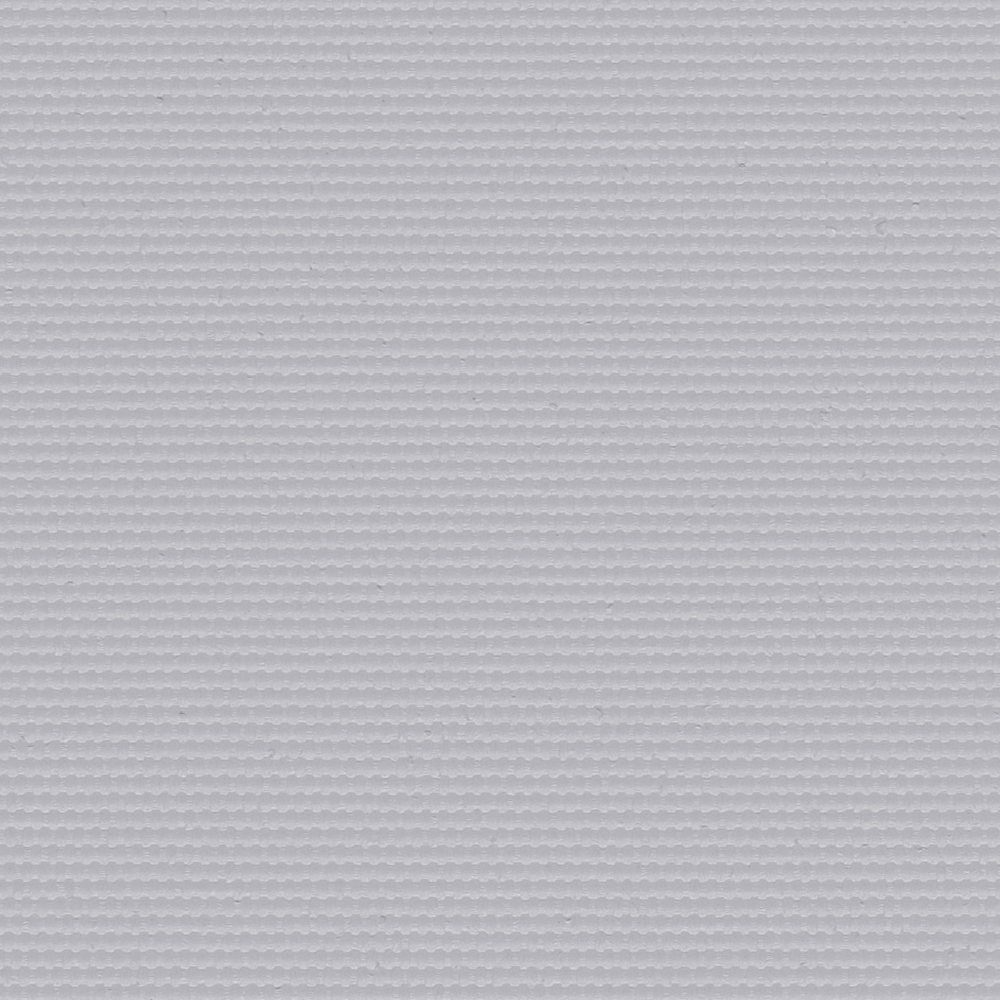

Grey
Sand
Tundra
White

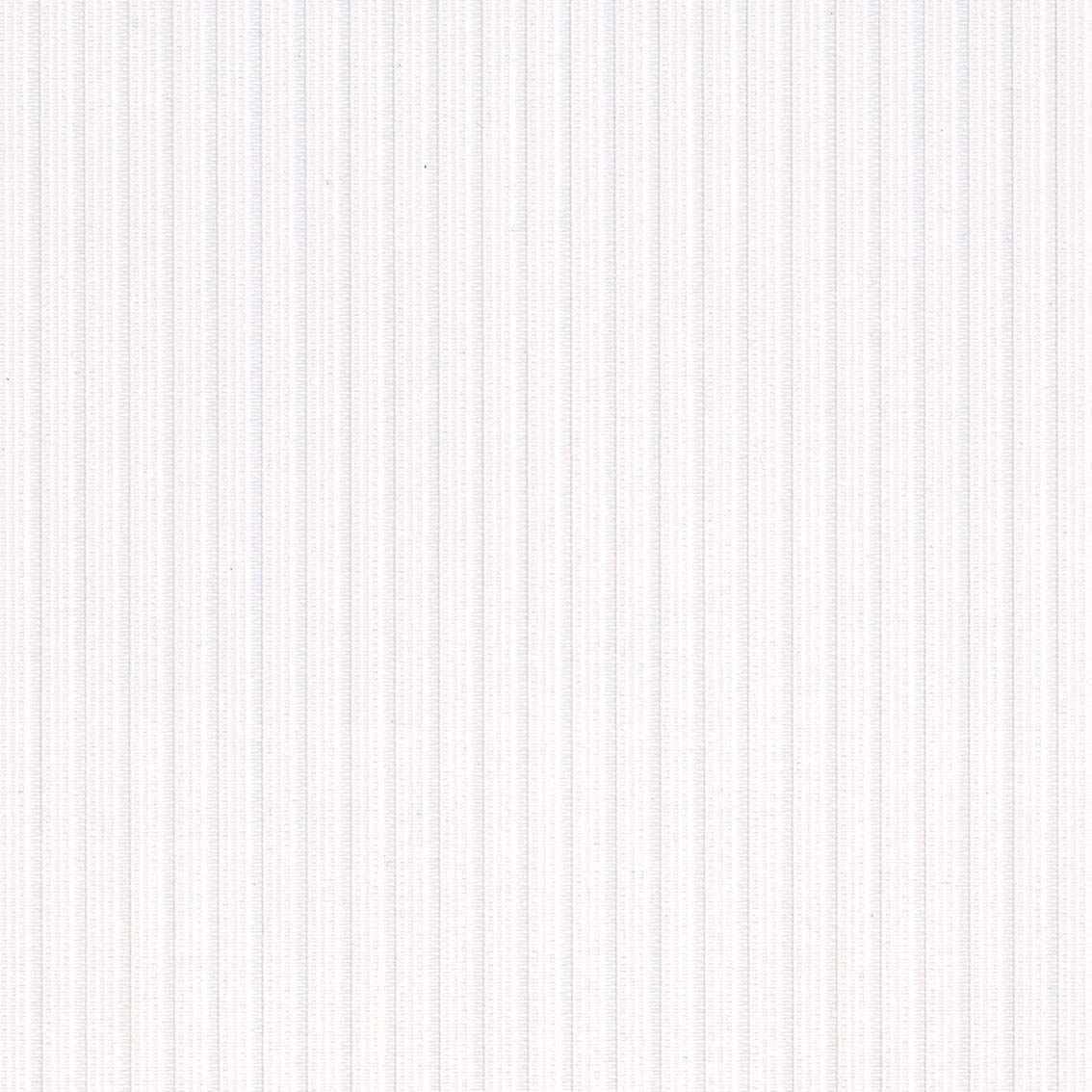

Fine Lines (Printable)

Openness

30%

Max Width

94"
White

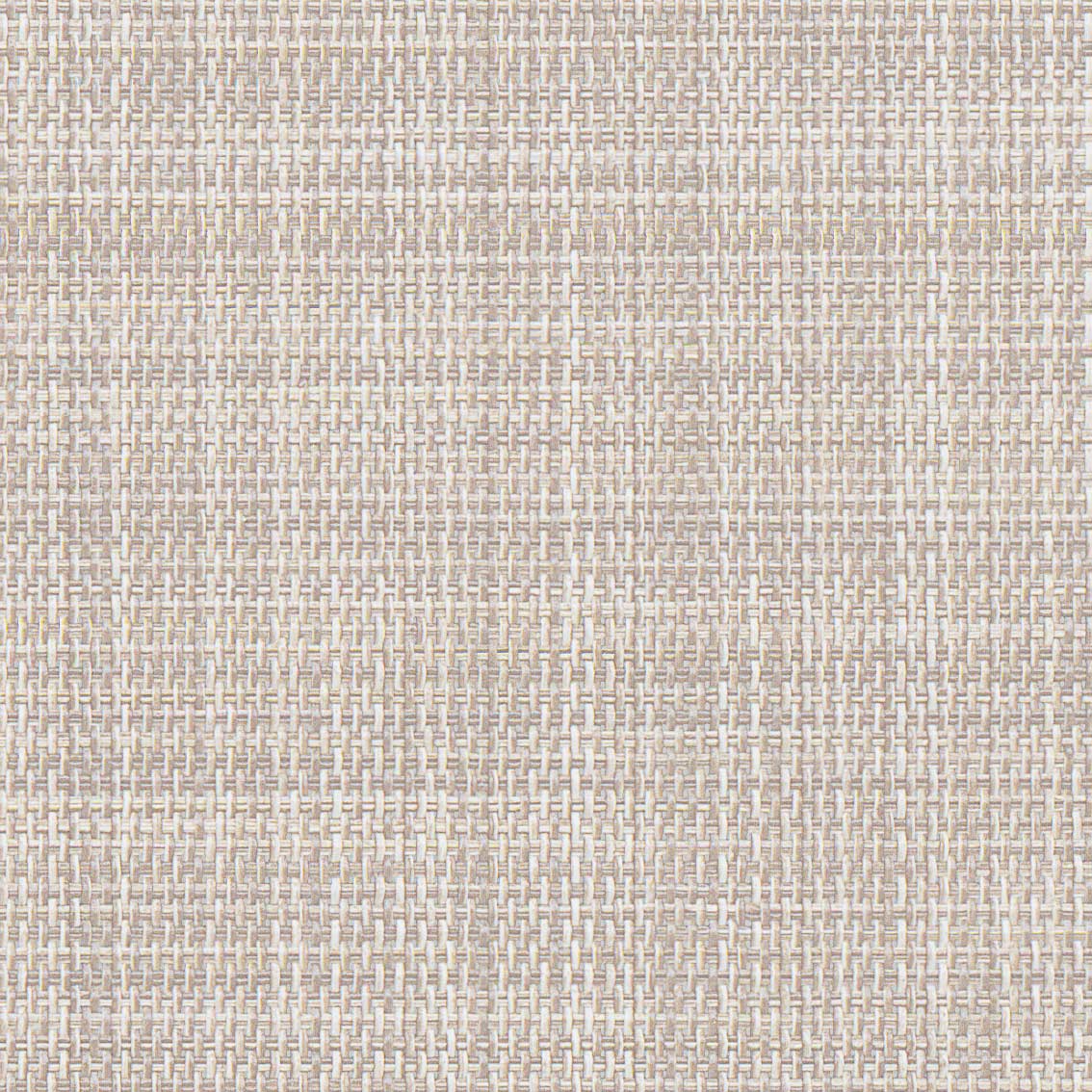

Flare (Printable)

Openness

3% 5%

Max Width

98"

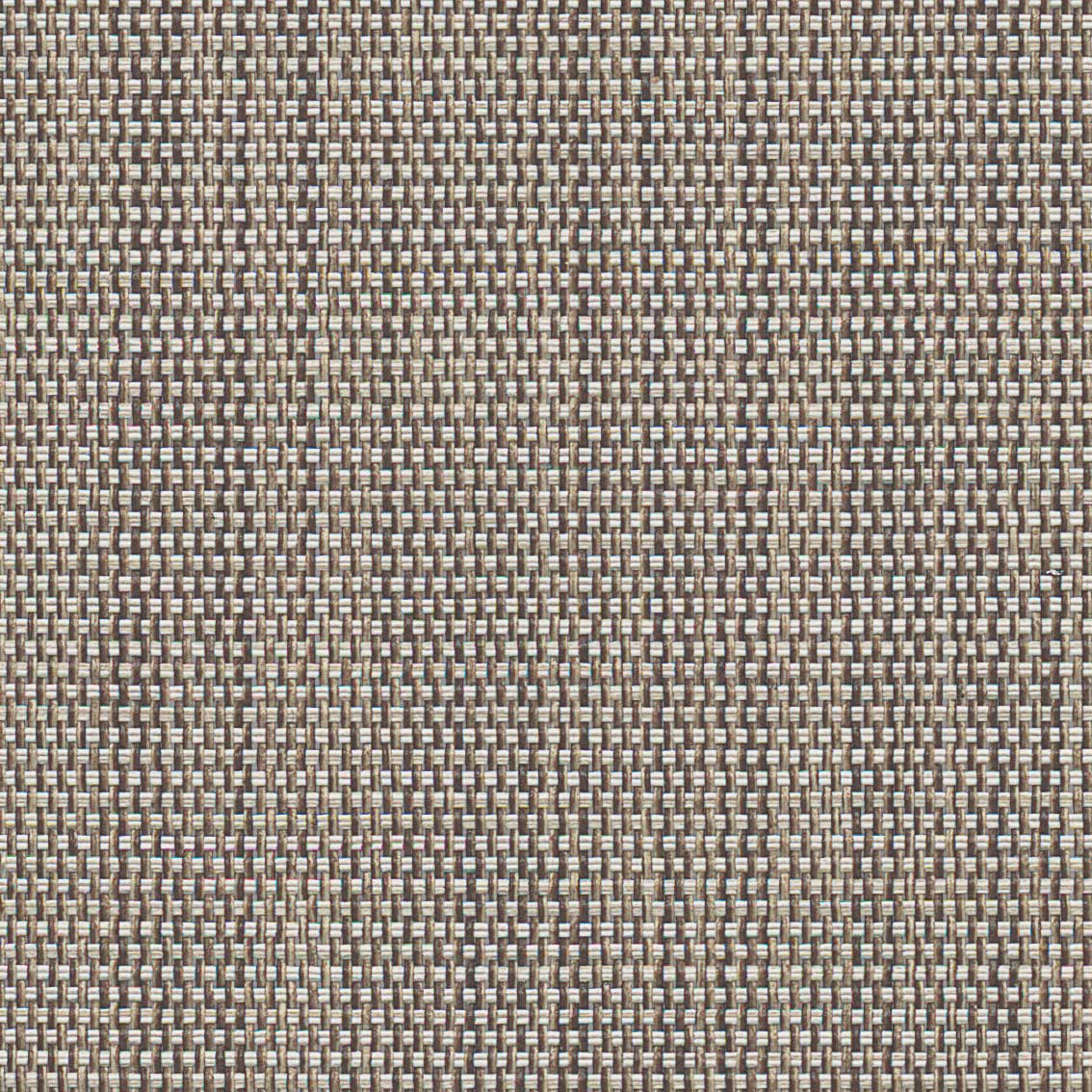

Caramel

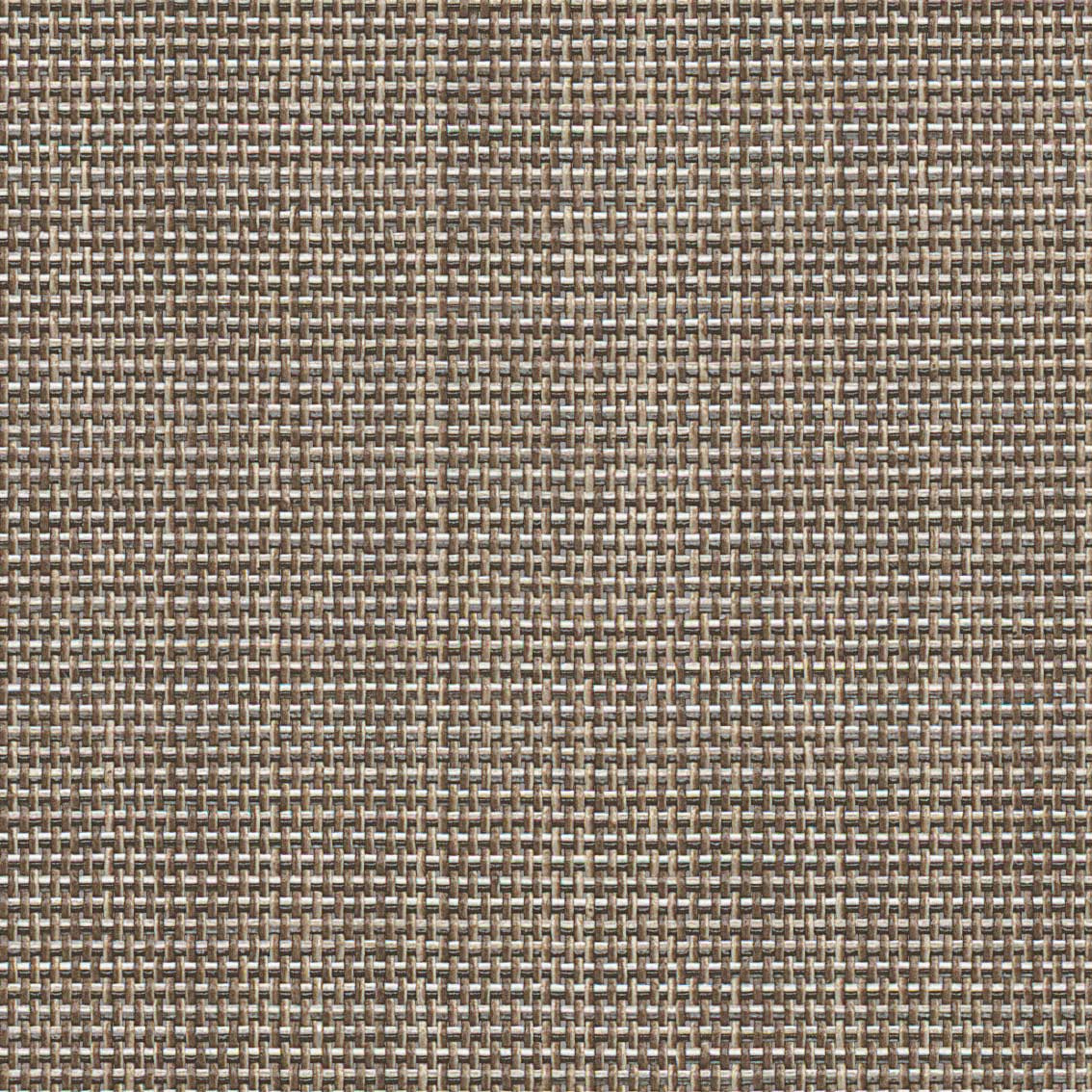

Chestnut

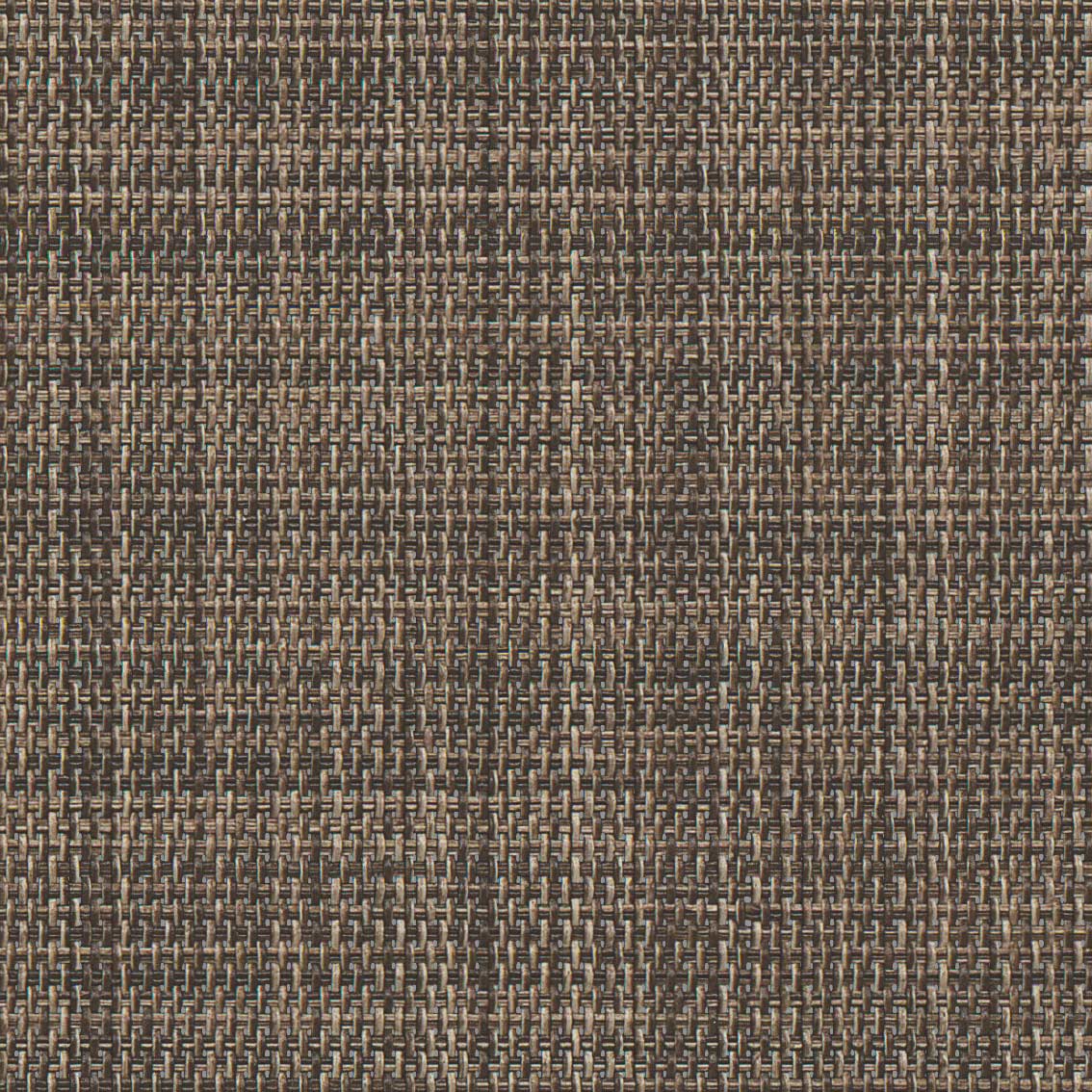

Espresso
Khaki
Mocha
Off White

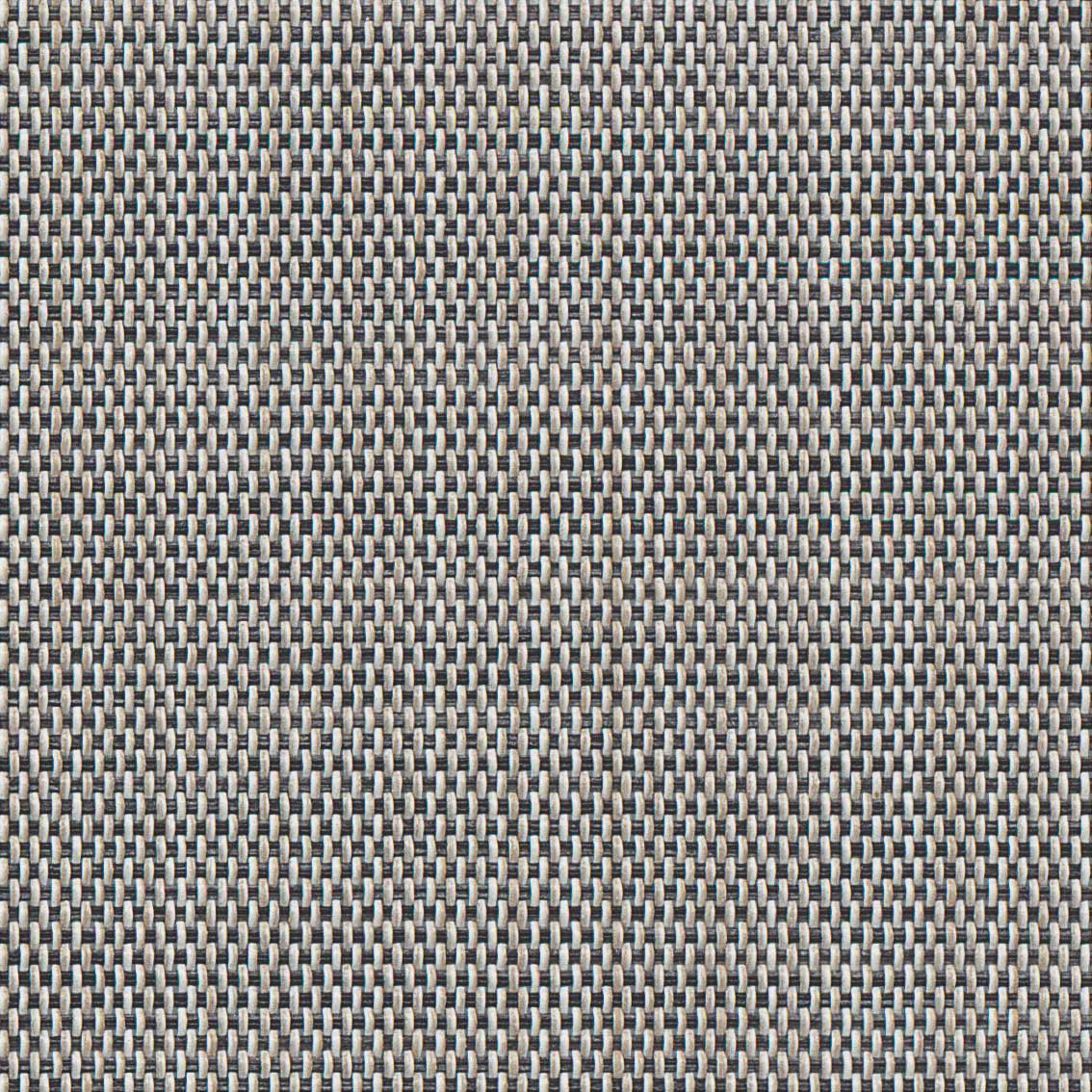

Taupe

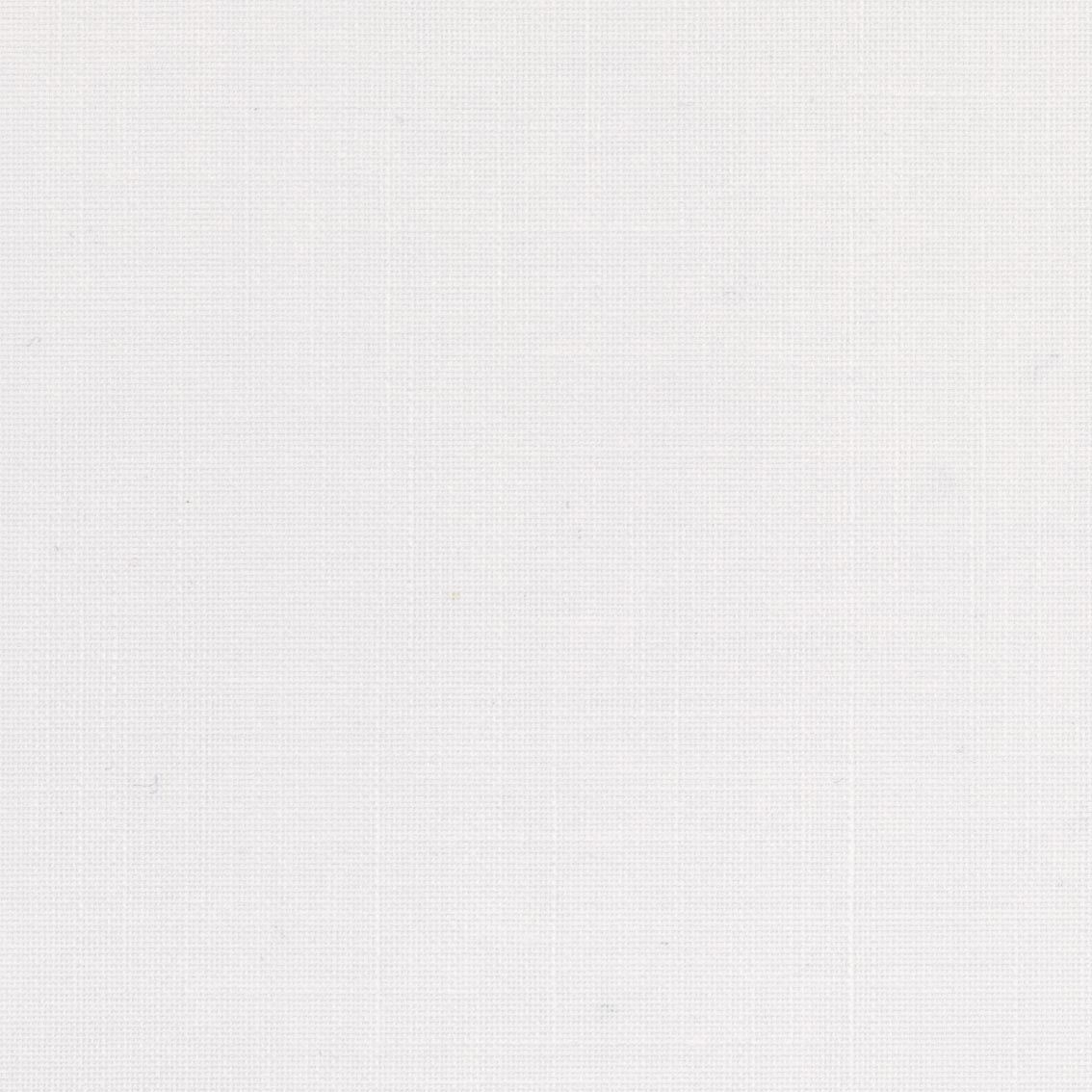

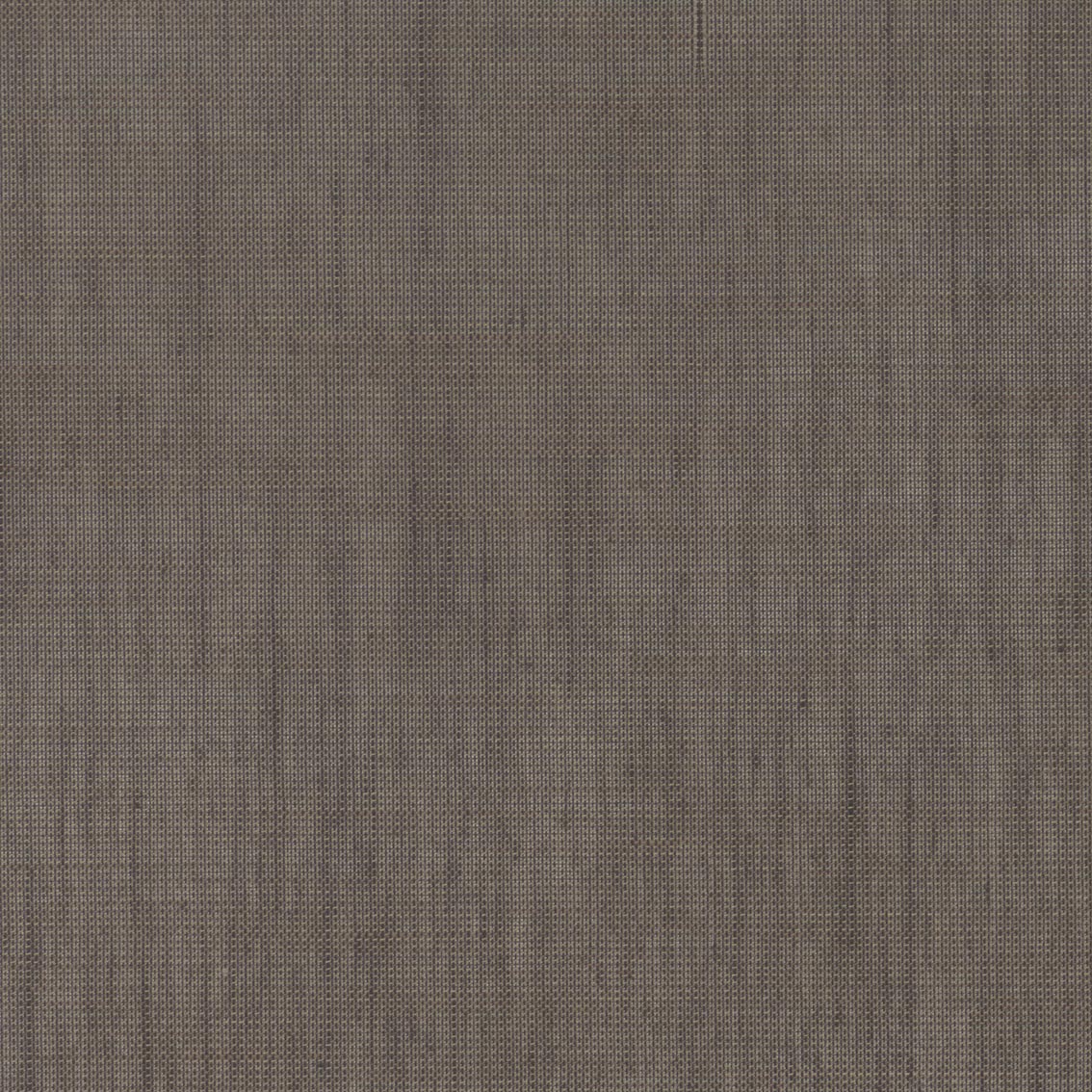

Franklin

Openness

19%

Max Width

118"
Brown

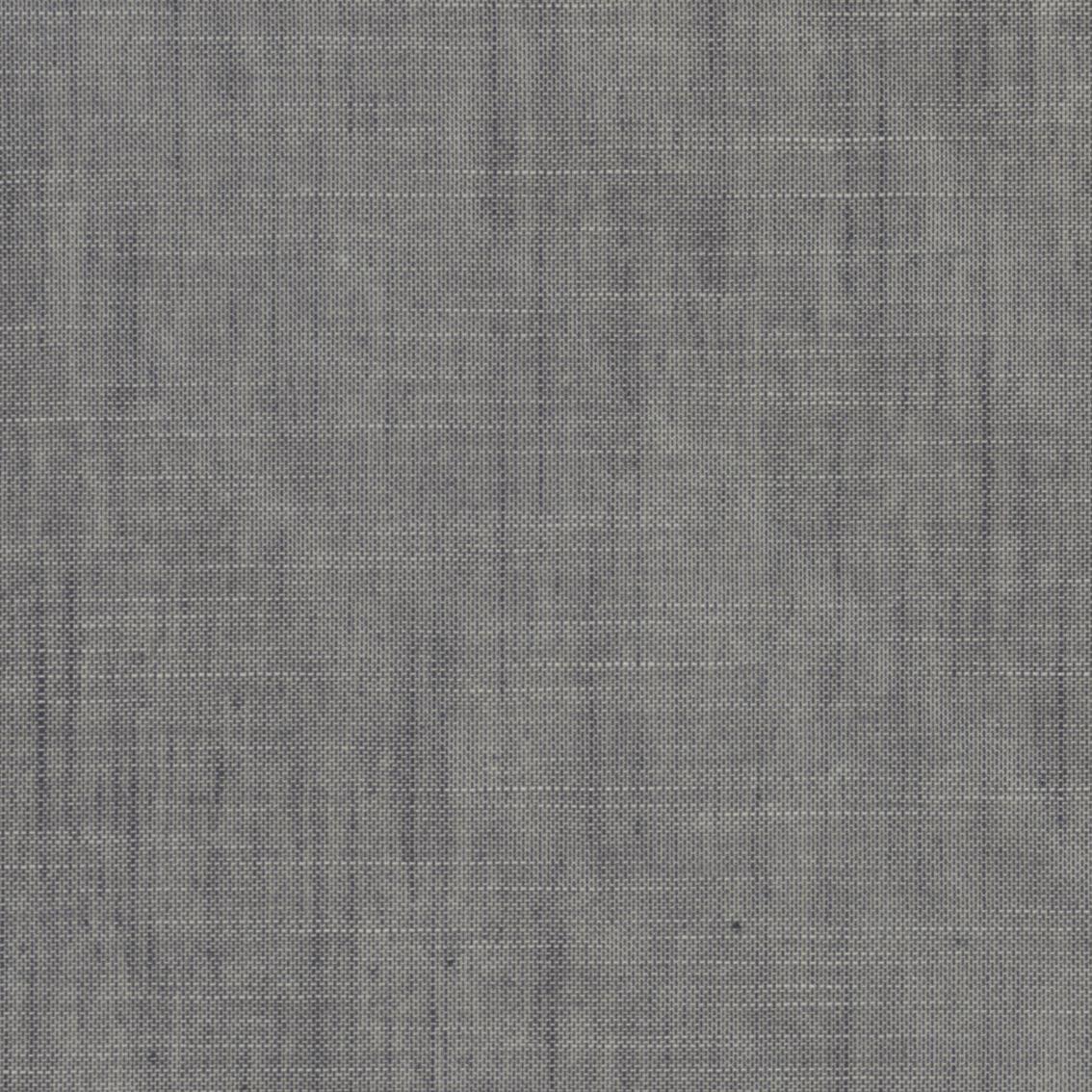

Dark Grey
Nutmeg
Off White

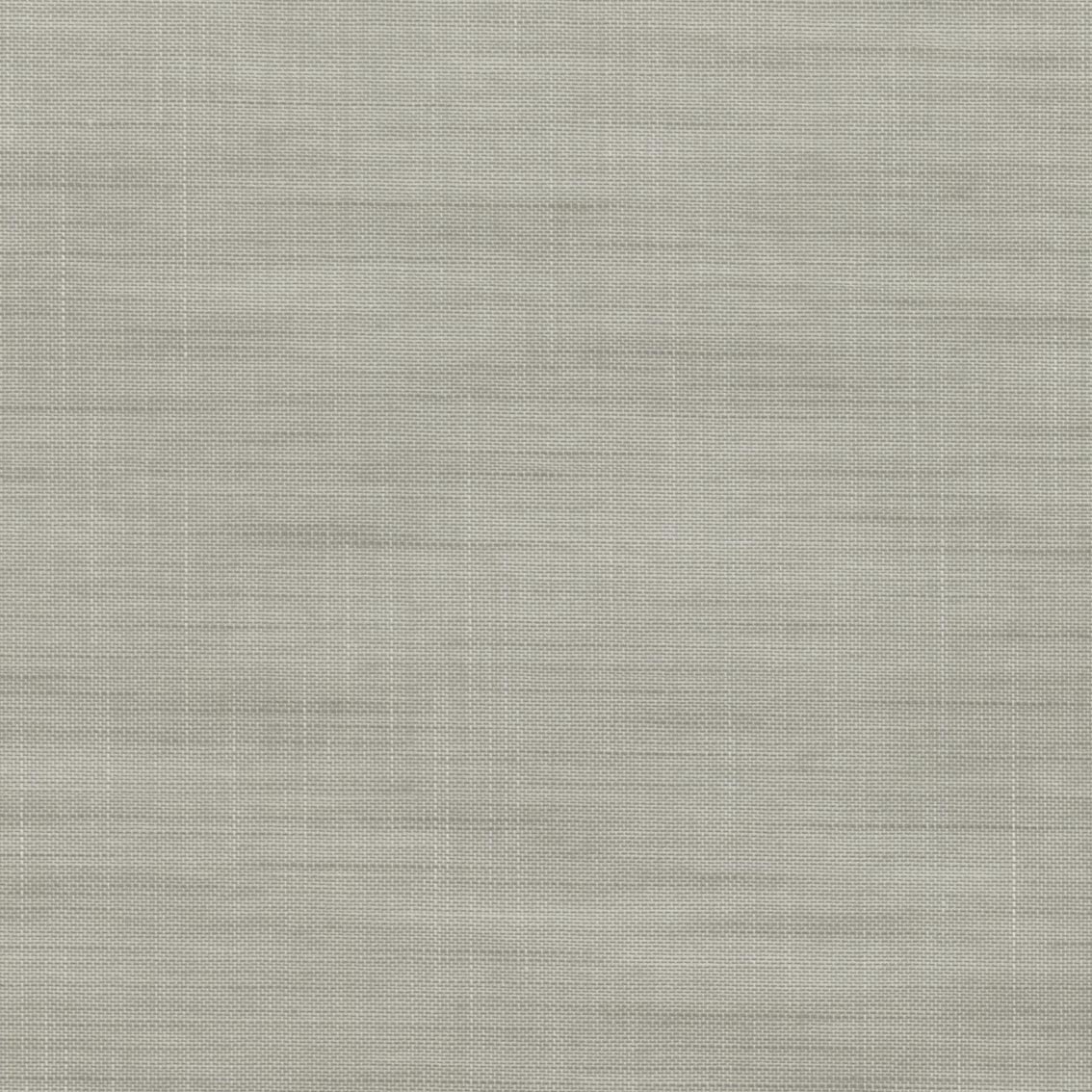

Pearl Linen
White

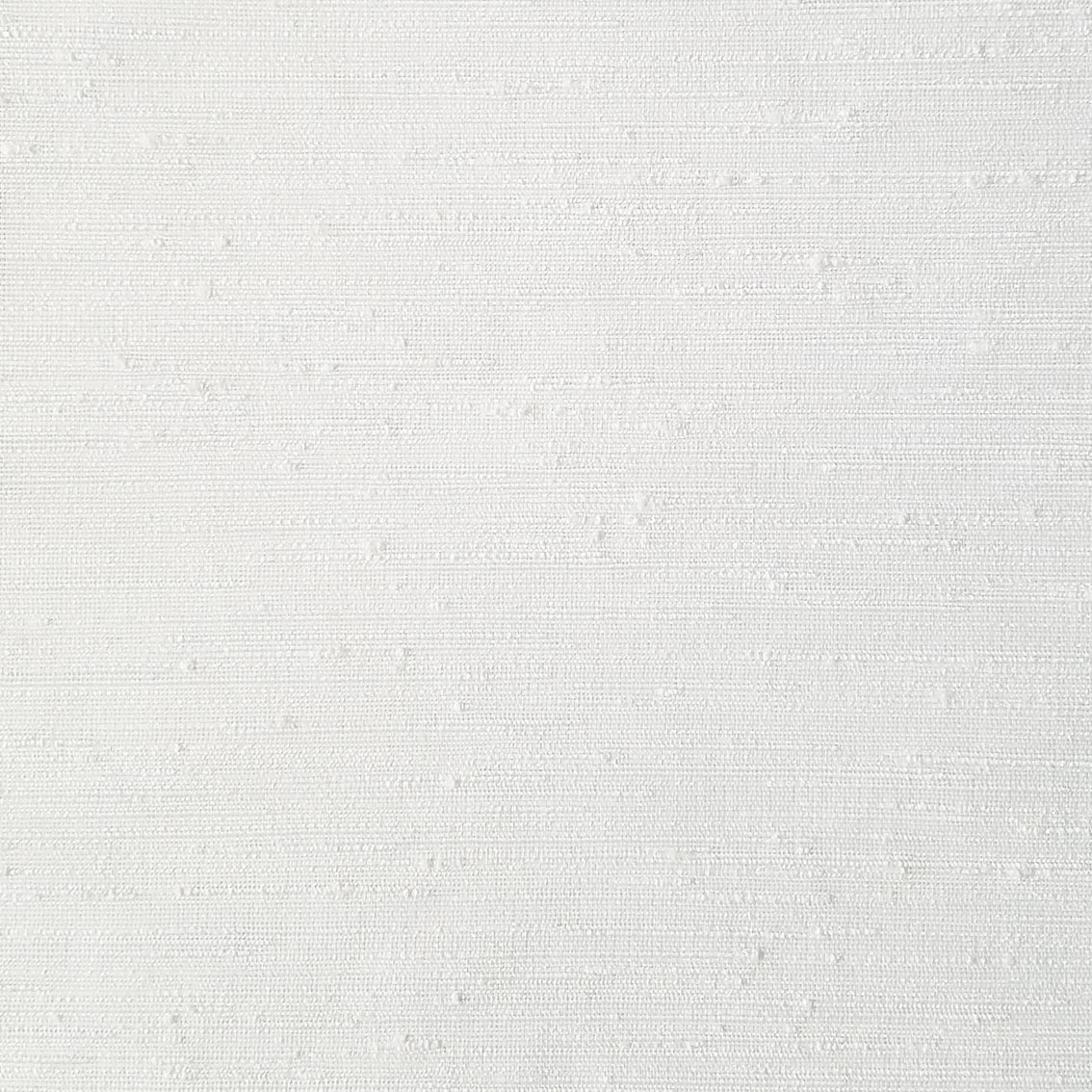

Glimmer

Openness

15%

Max Width

94"
White

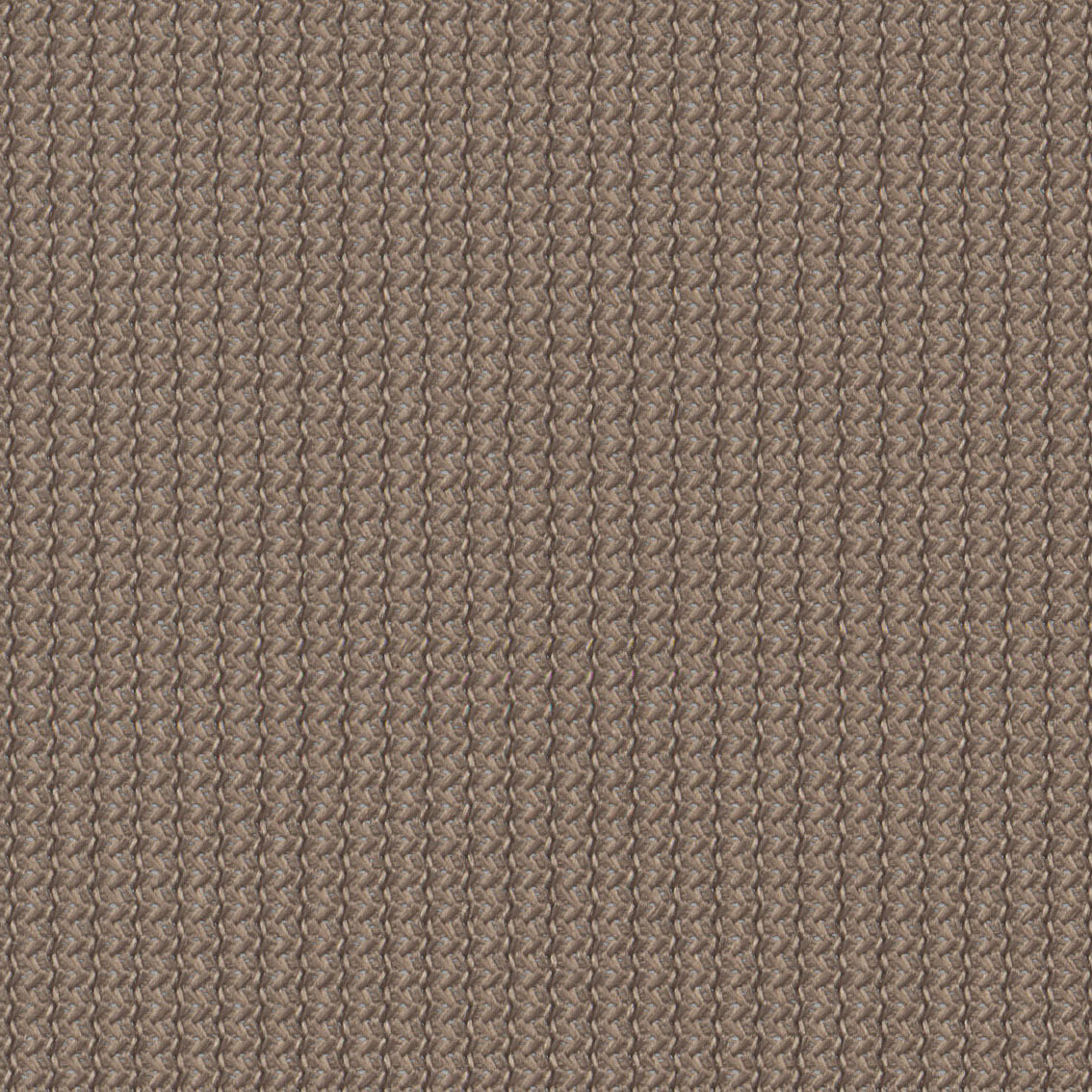

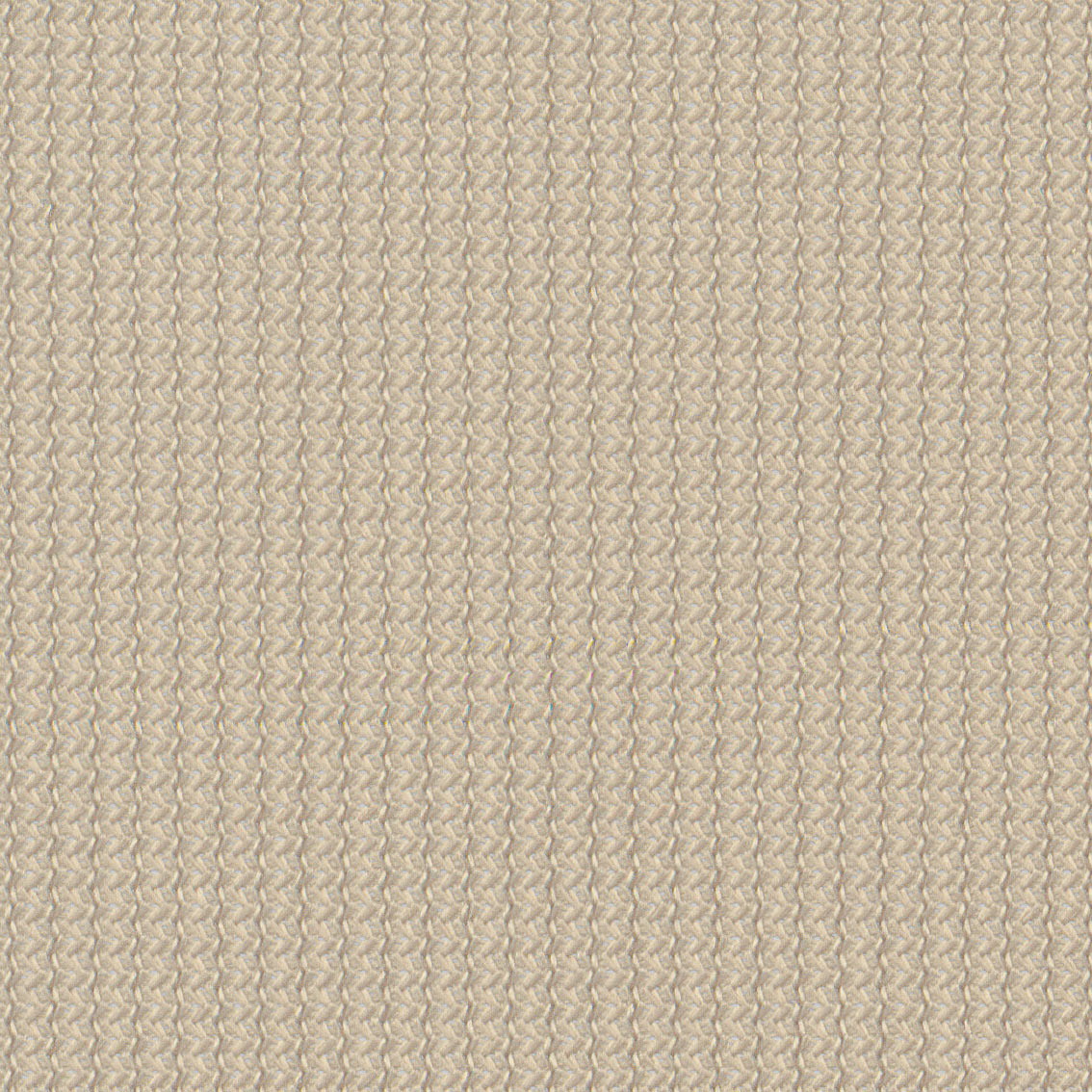

GreenScreen Revive

Openness

1% 5%

Max Width

118"

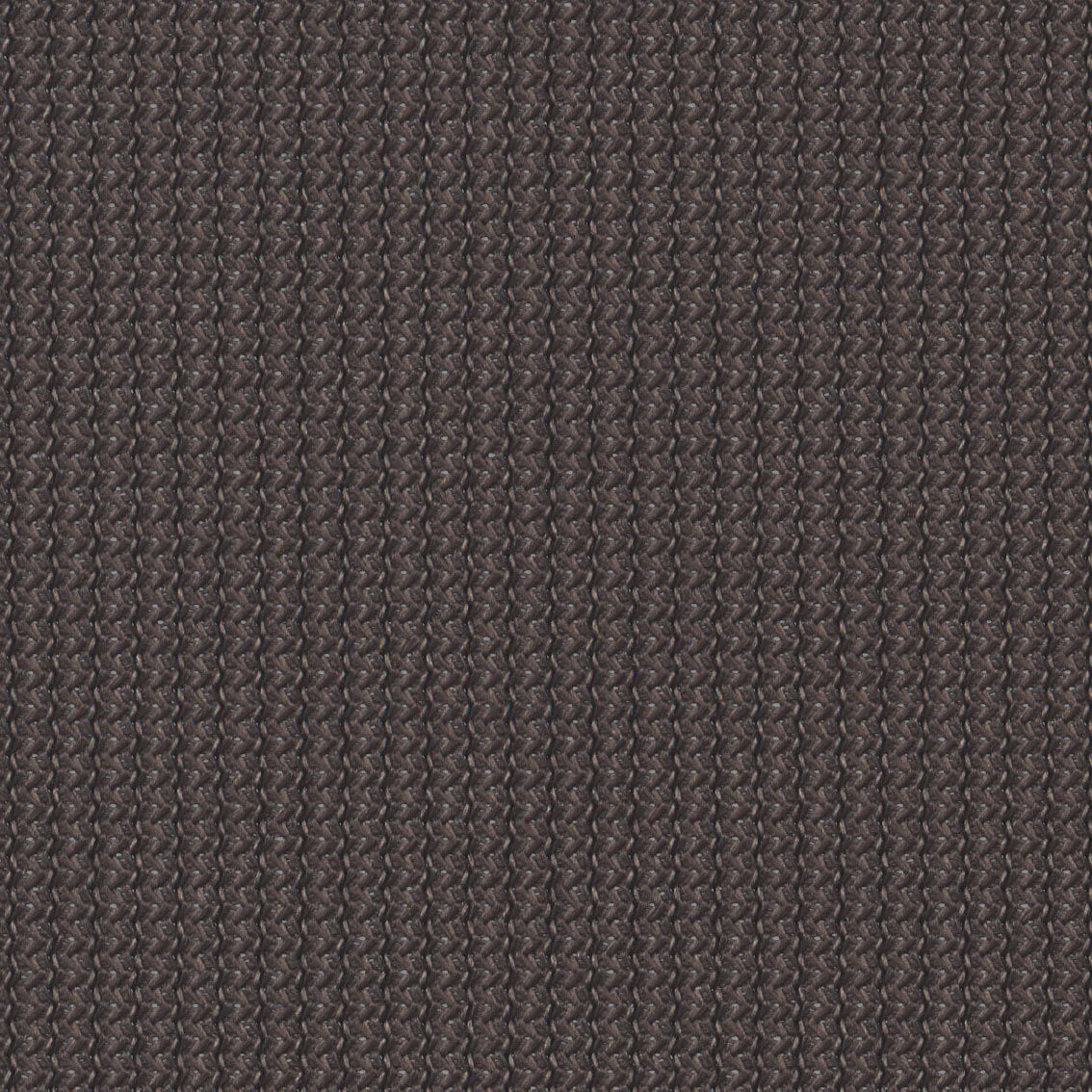

Dusk
Linen
Mushroom

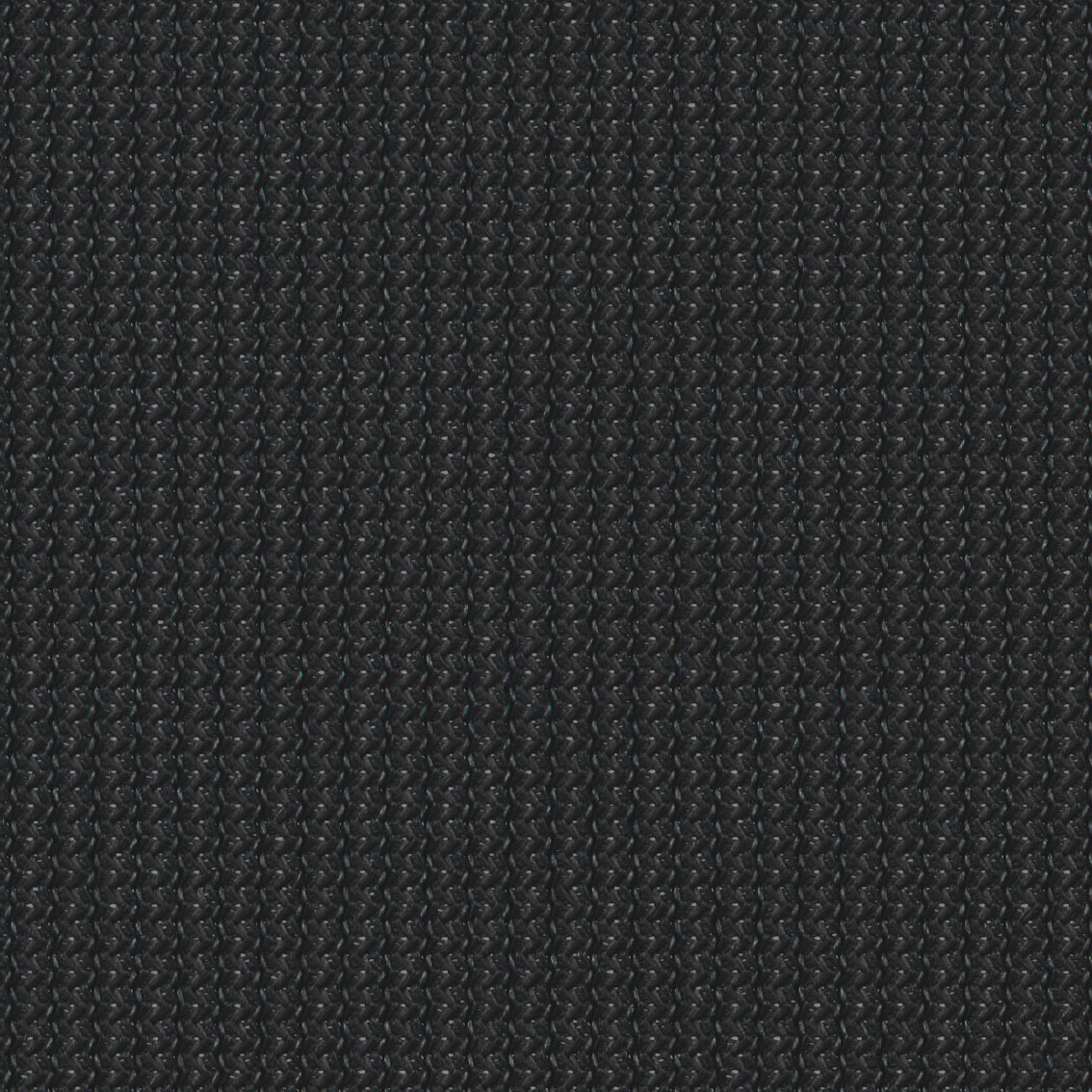

Onyx
Pewter
Sand

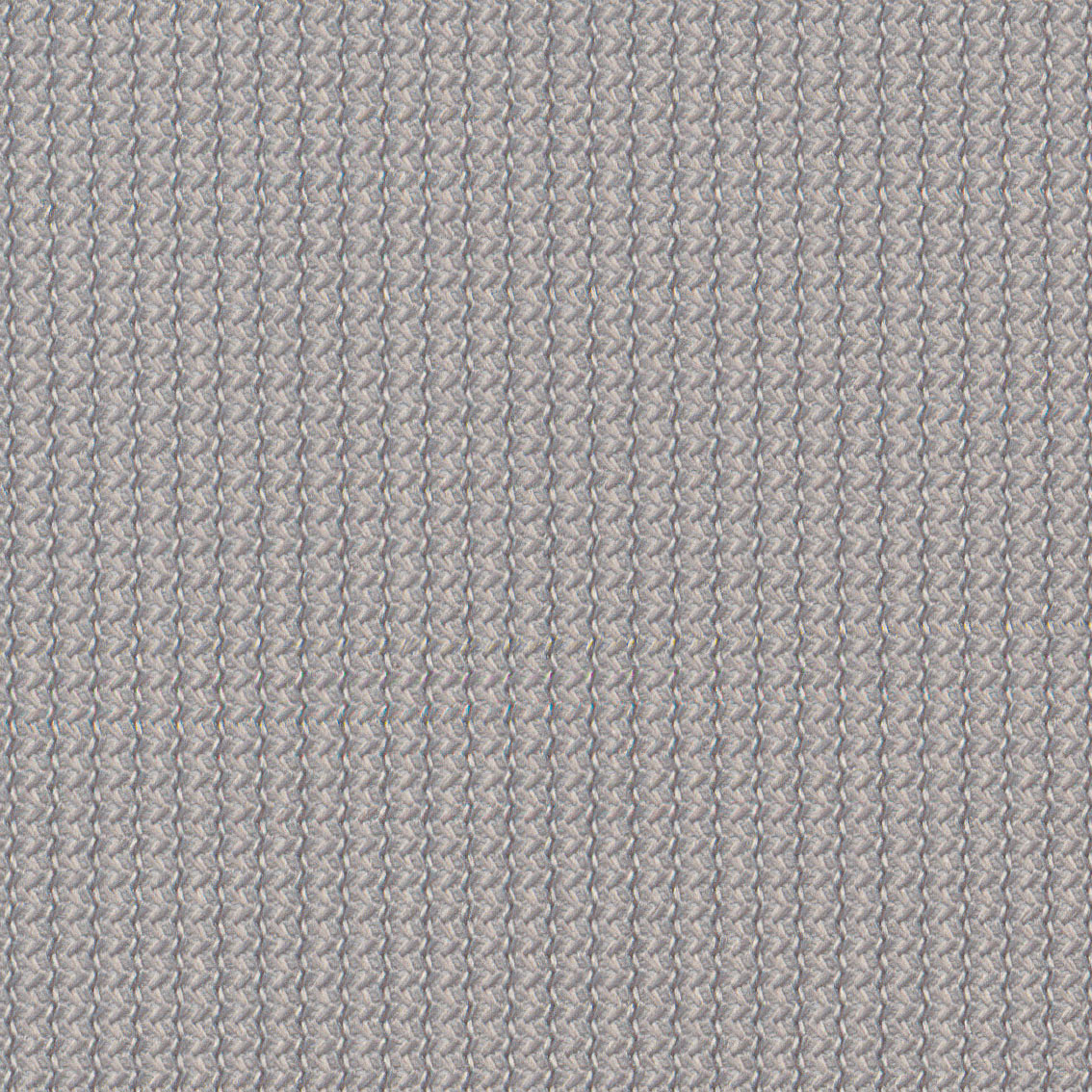

Stone
Suede

Hampton

Openness

0%

Max Width

110"
Arena

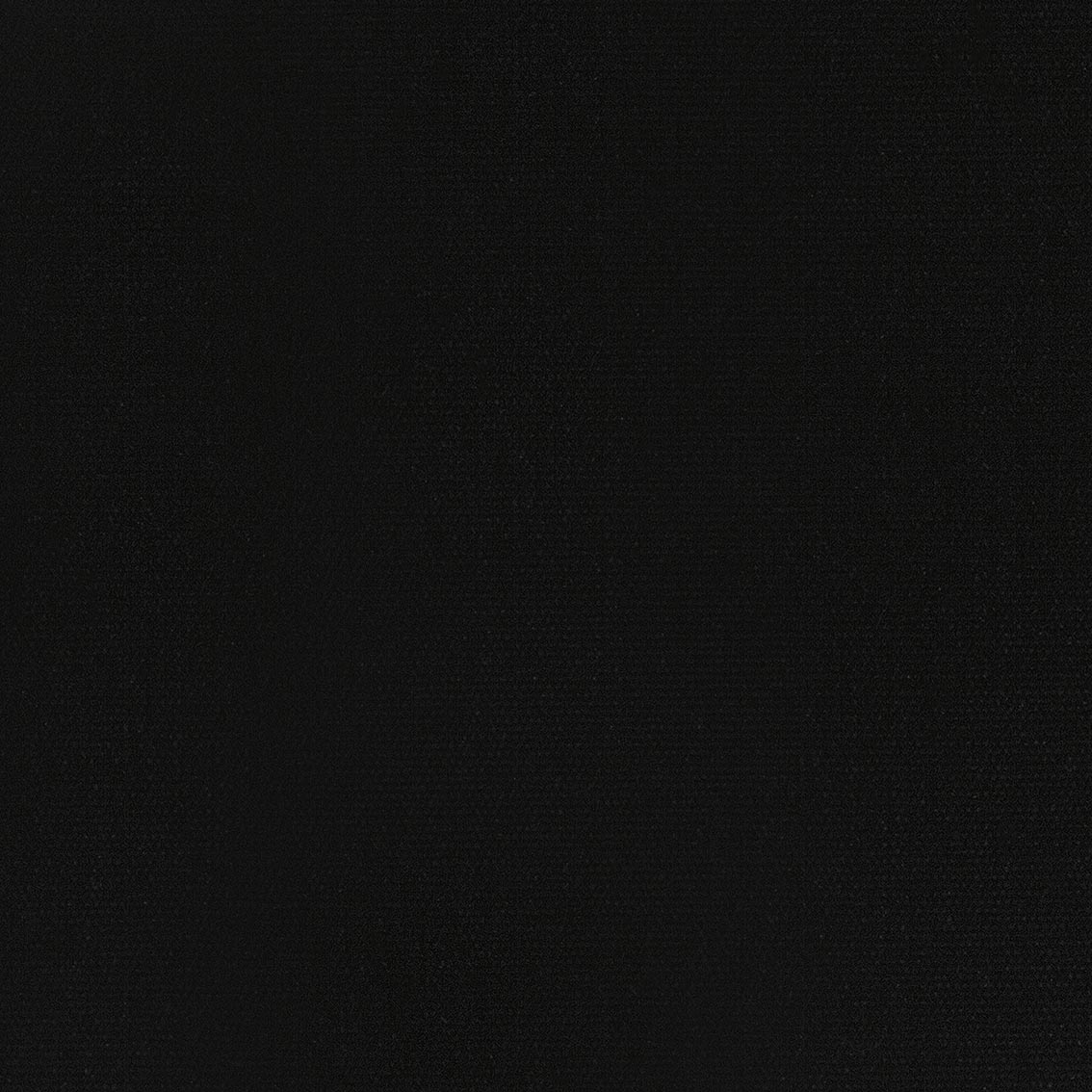

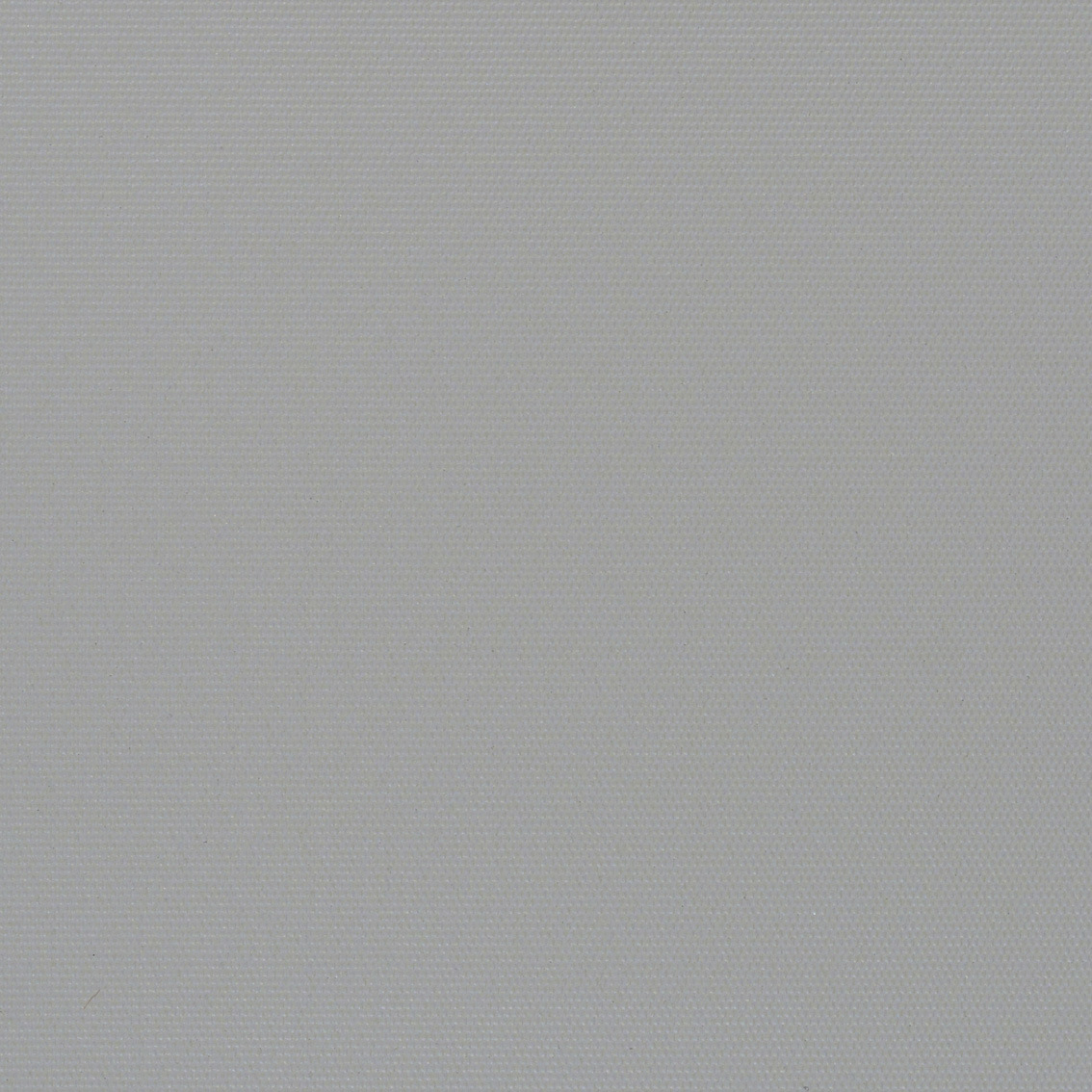

Lucca (Printable)

Openness

0%

Max Width

118"

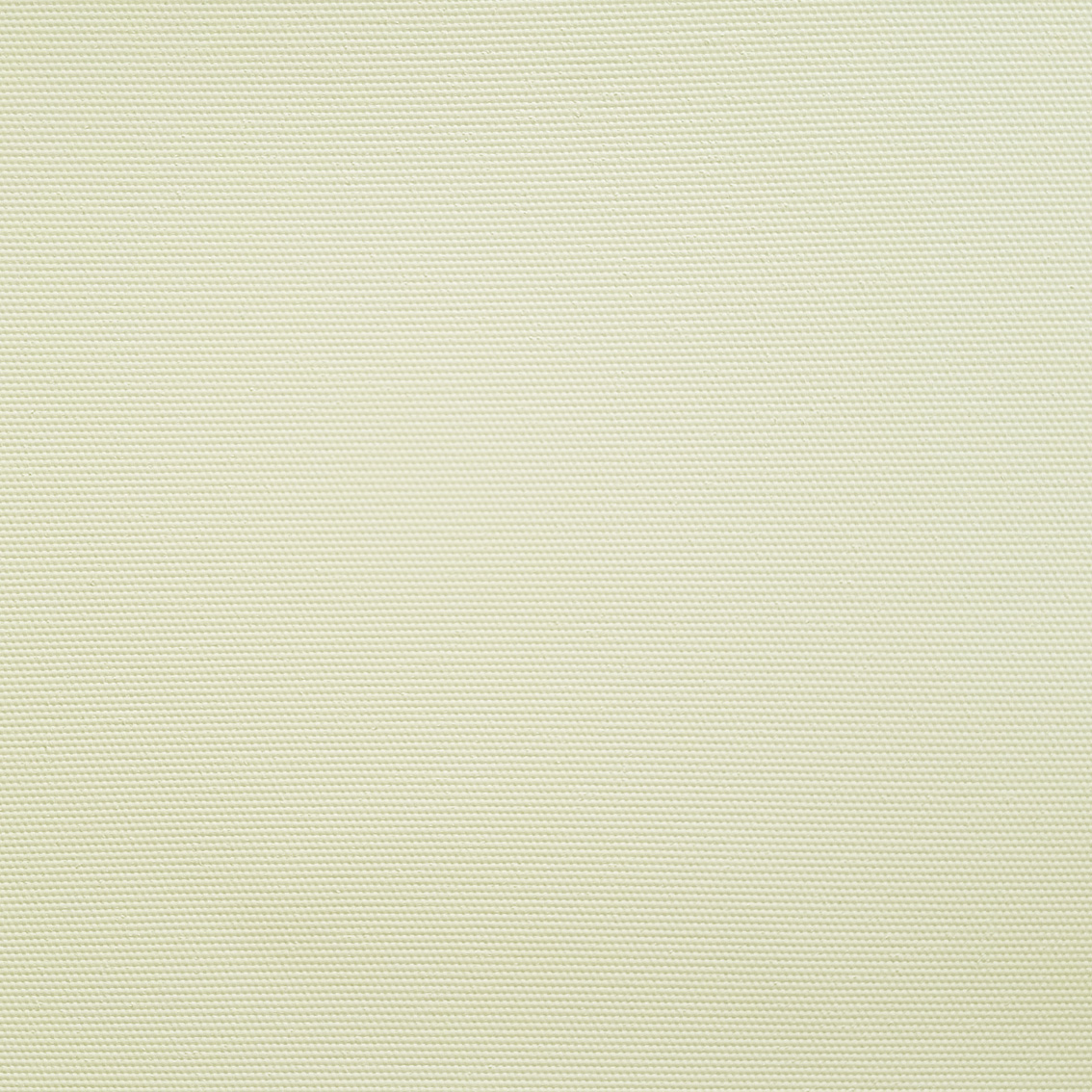

Alabaster
Cashew
Cement
Clay
Earl Grey
Pearl

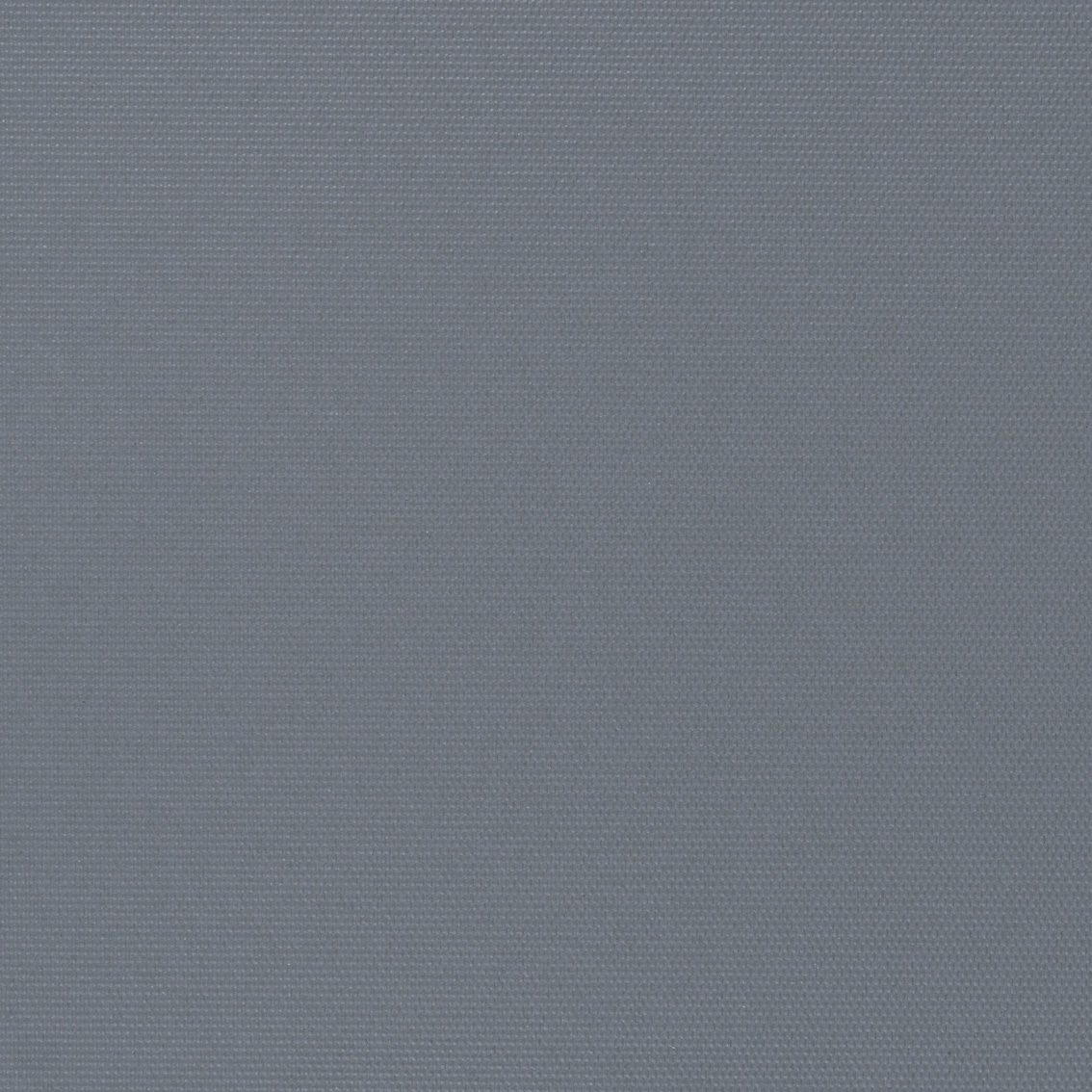

Pebble
Pepper
Pepper
(color back)

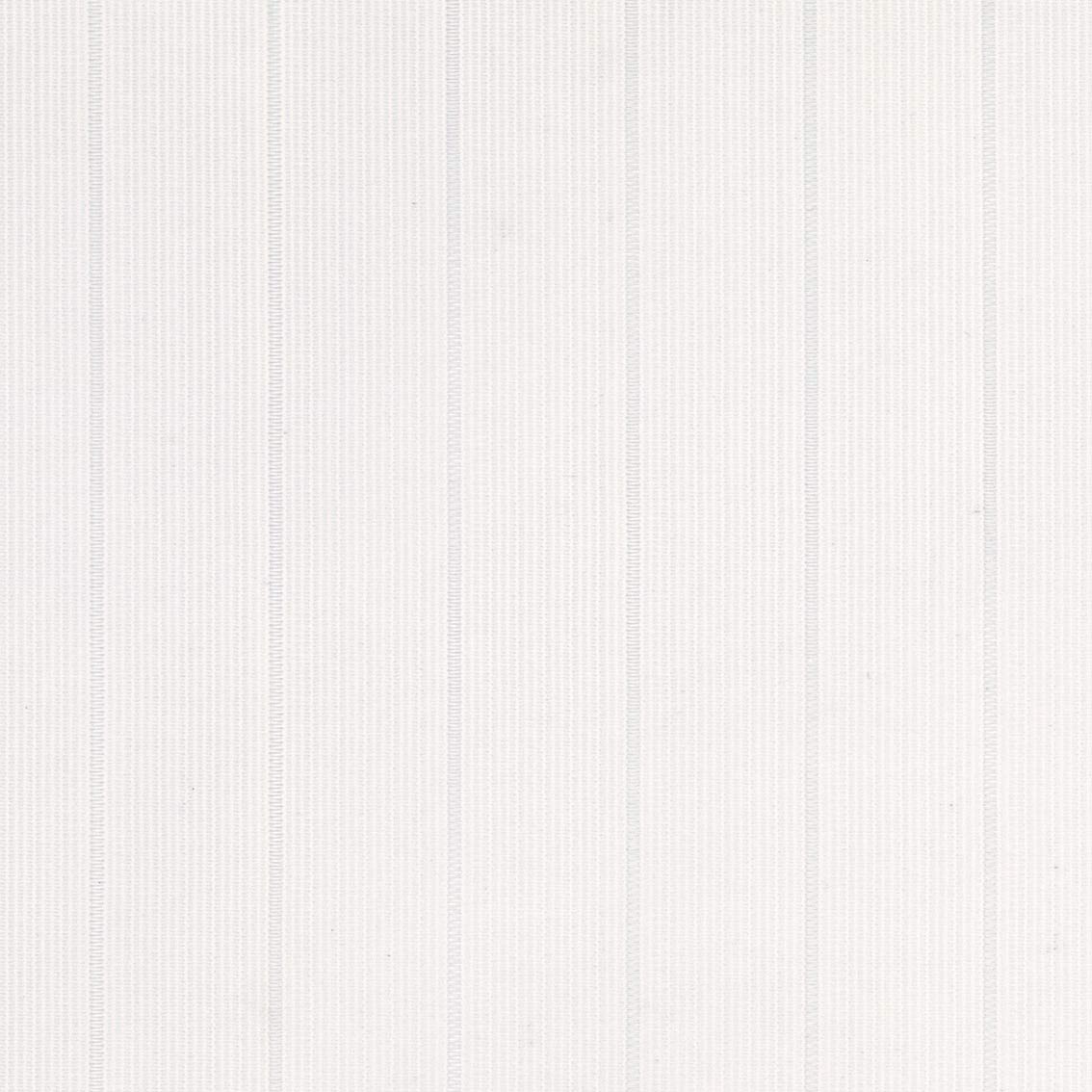

Lumen

Openness

15%

Max Width

94"
White

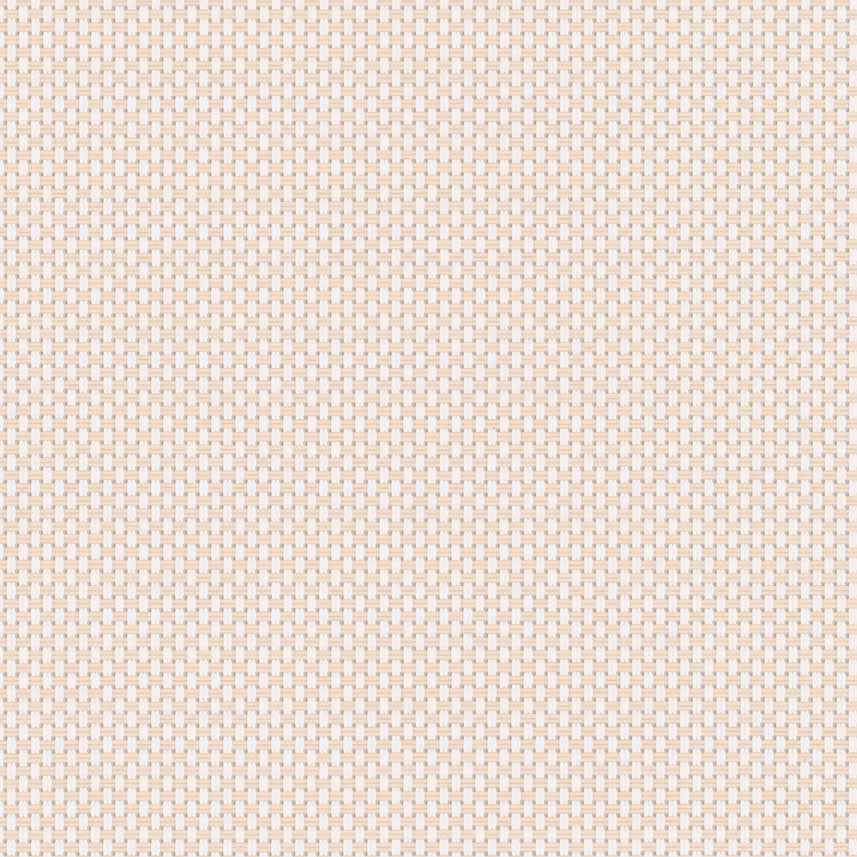

Luna (Printable)

Openness

1% 3% 5% 10%

Max Width

118"

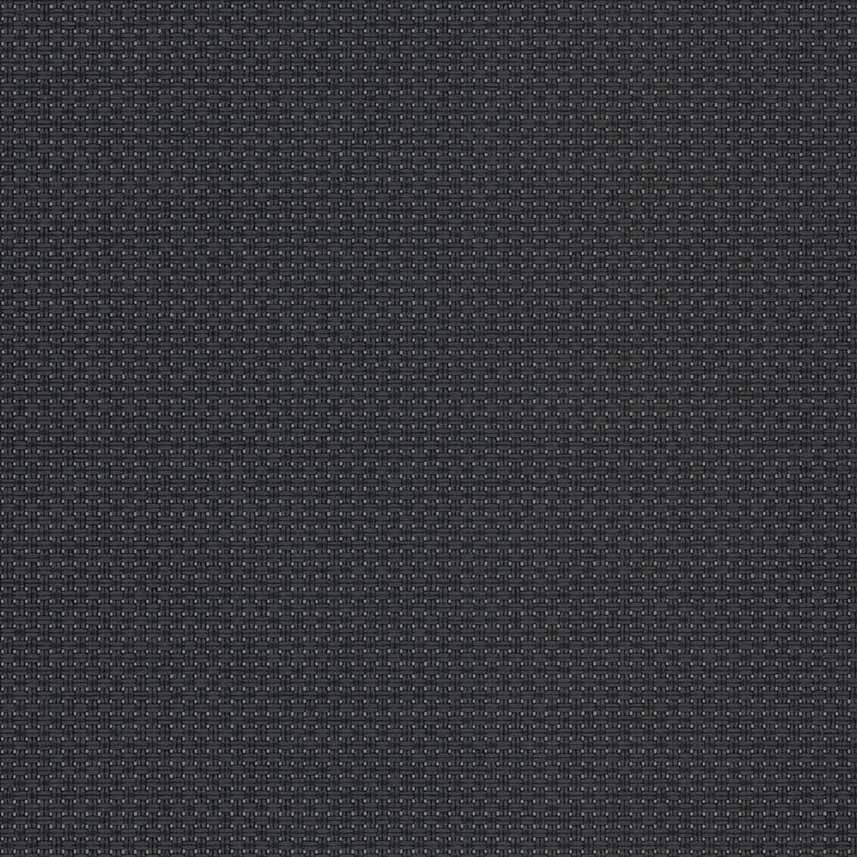

Black/Black

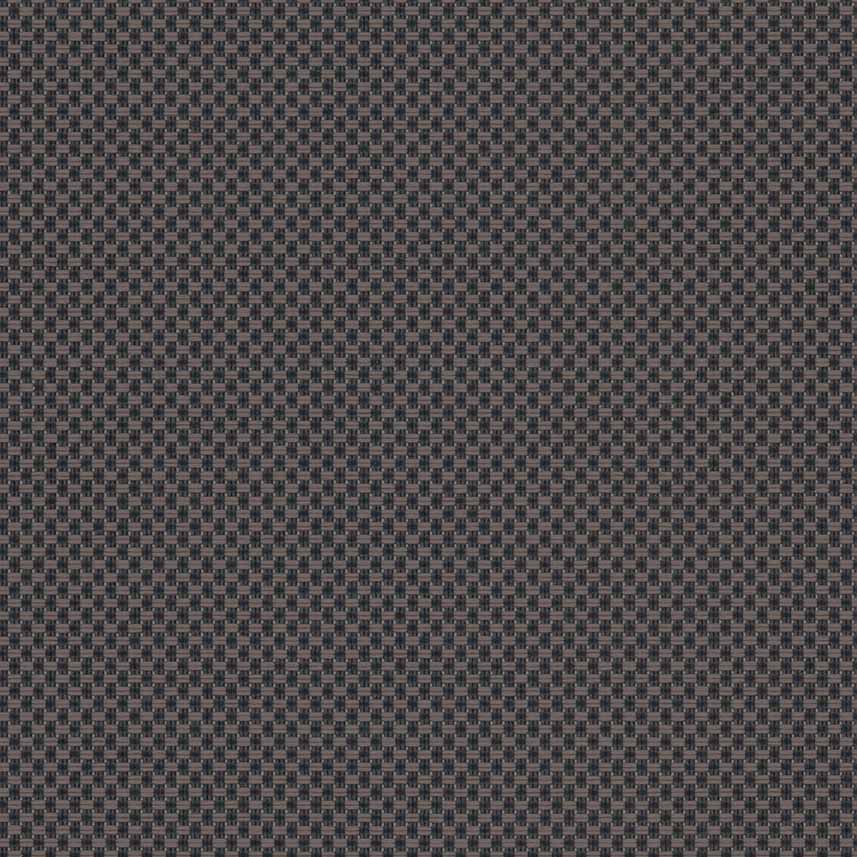

Black/Brown

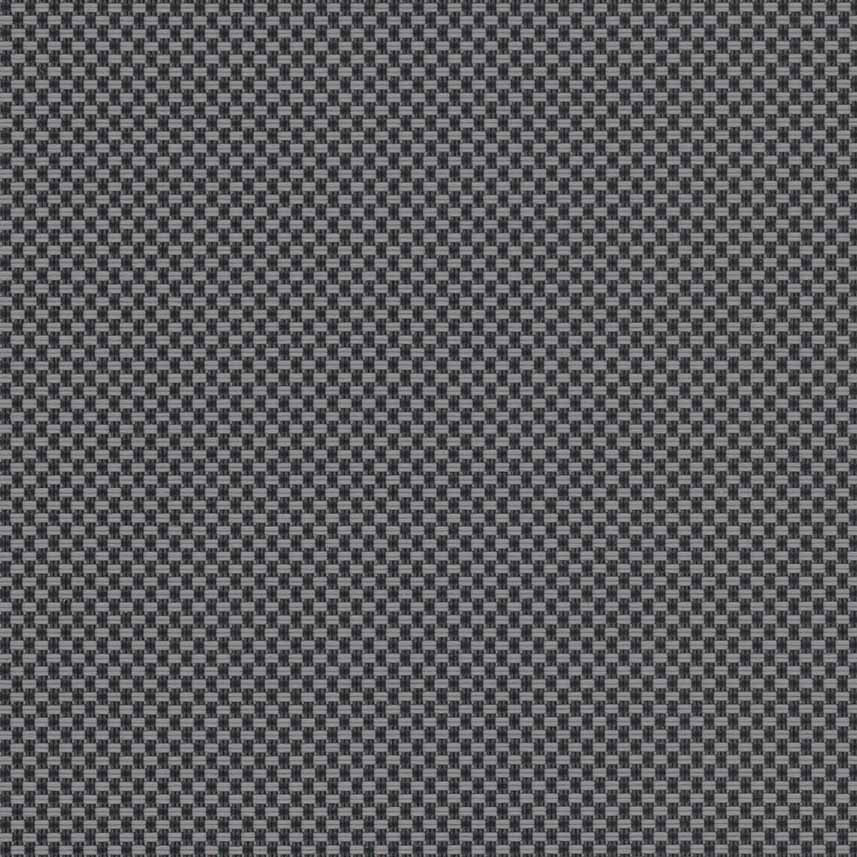

Black/Grey

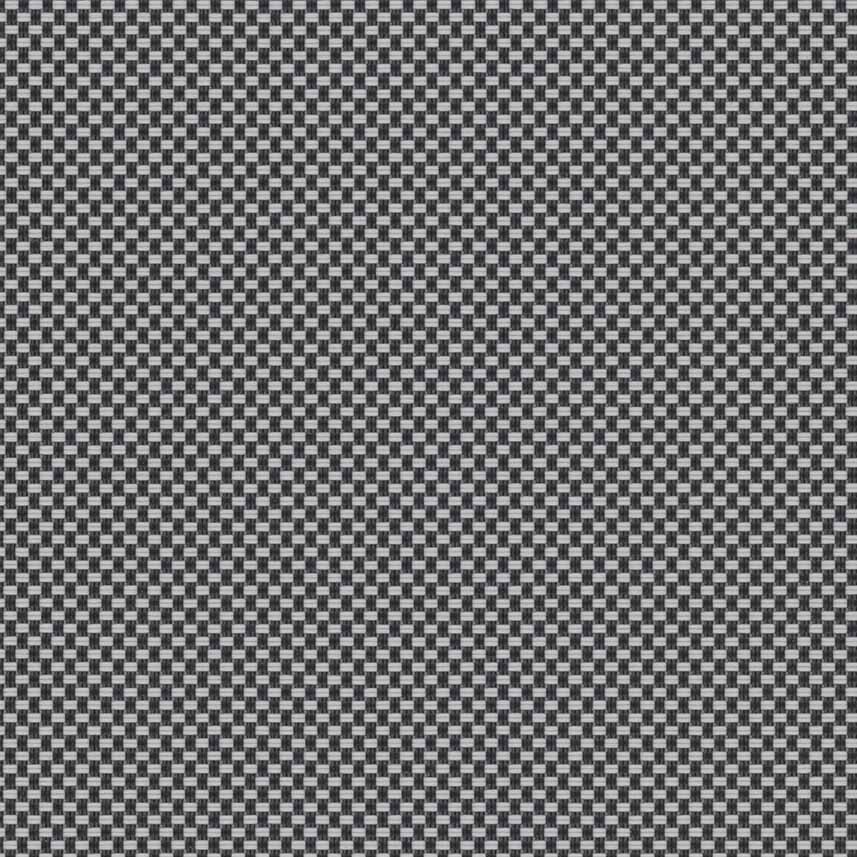

Black/Pearl

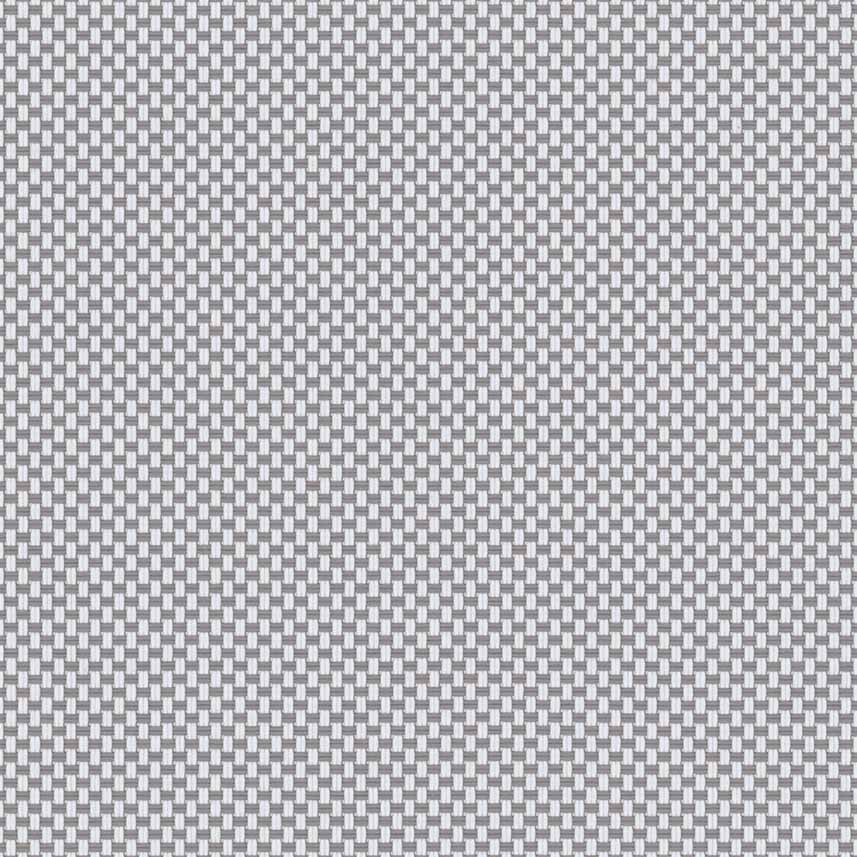

White/Grey
White/Linen
White/Pearl
White/Sand

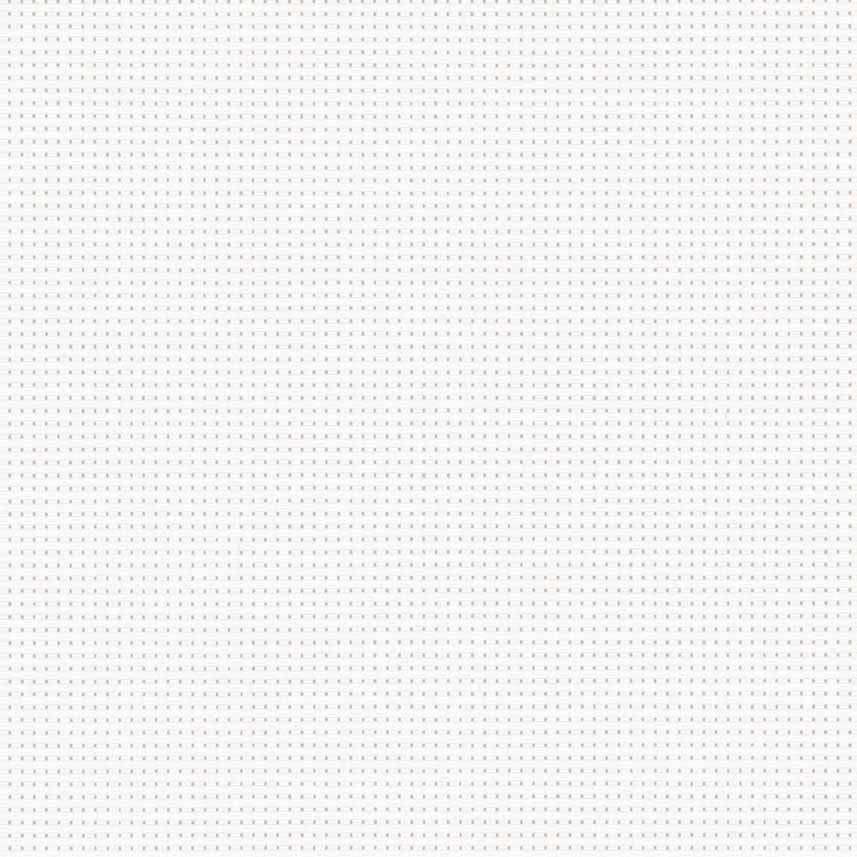

White/White

Majesty

Openness

12%

Max Width

118"

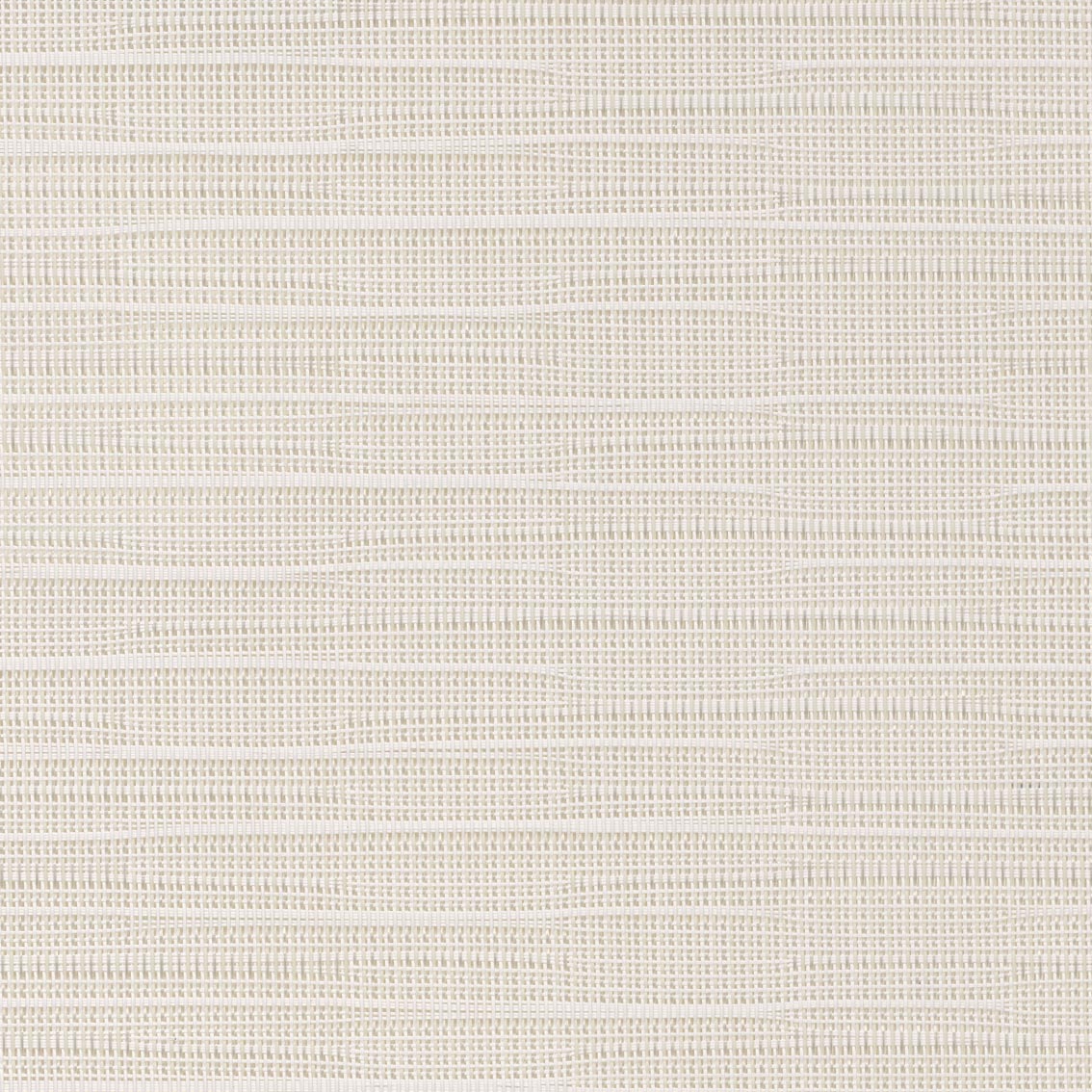

Chalk
Obsidian
Pewter
Sandstone

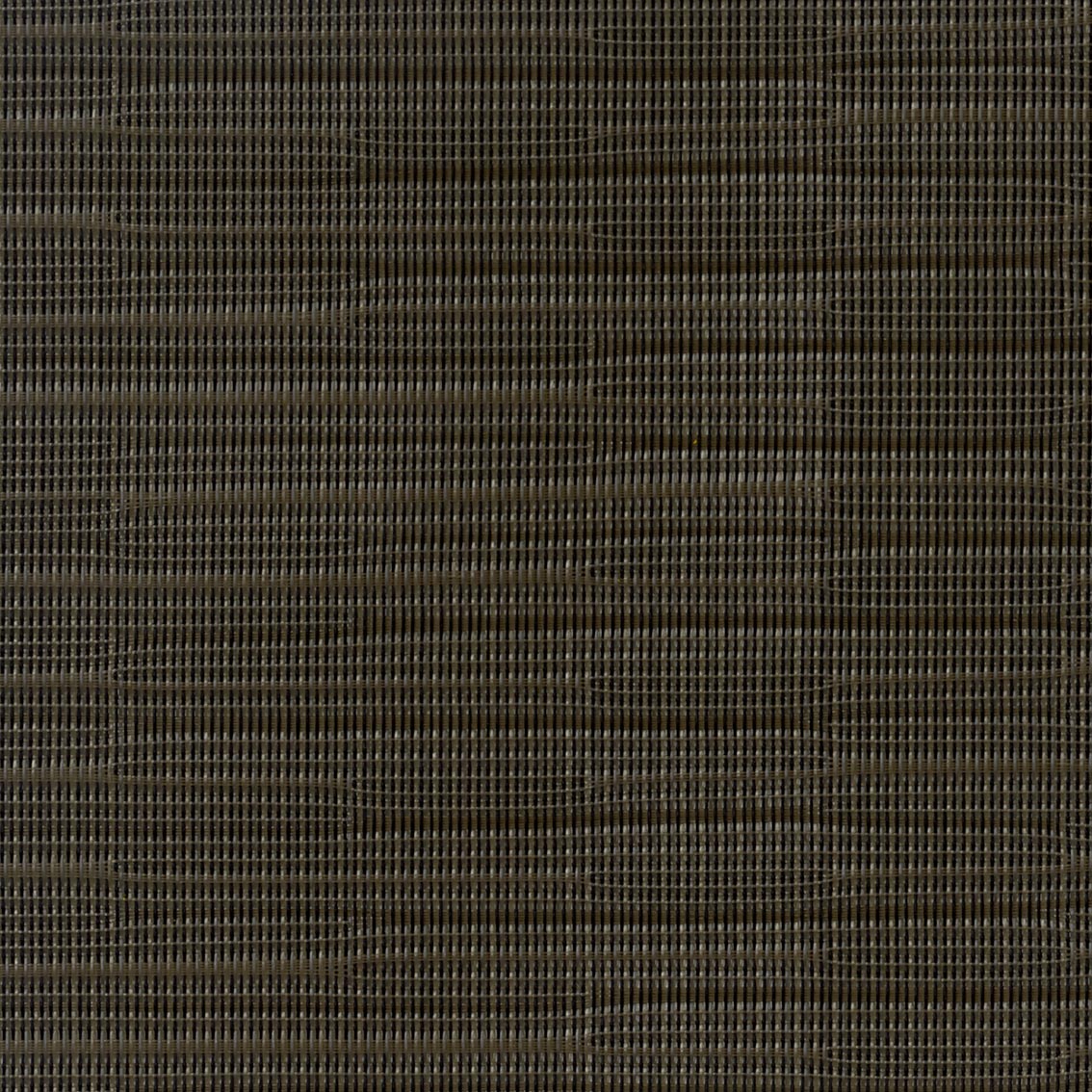

Tawny

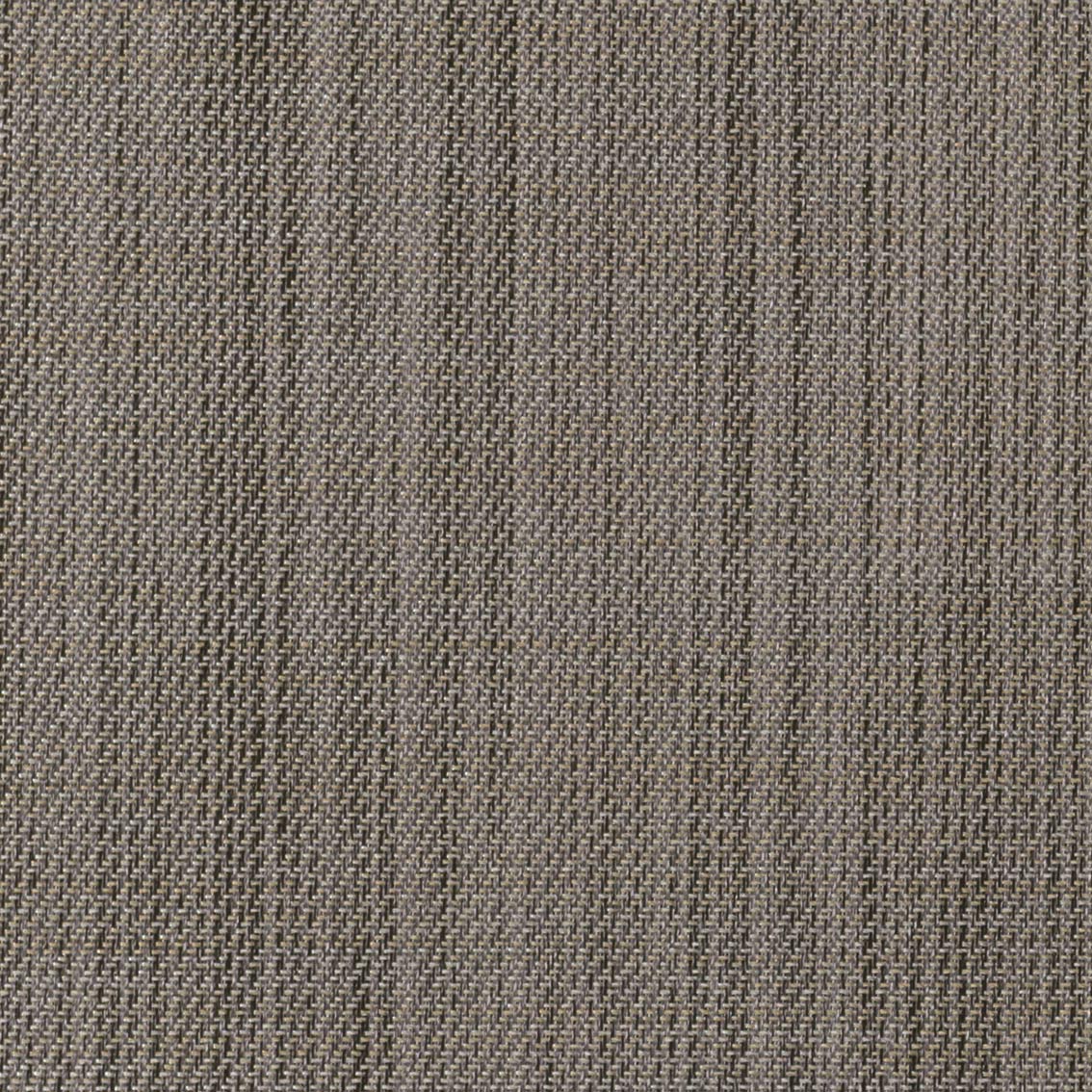

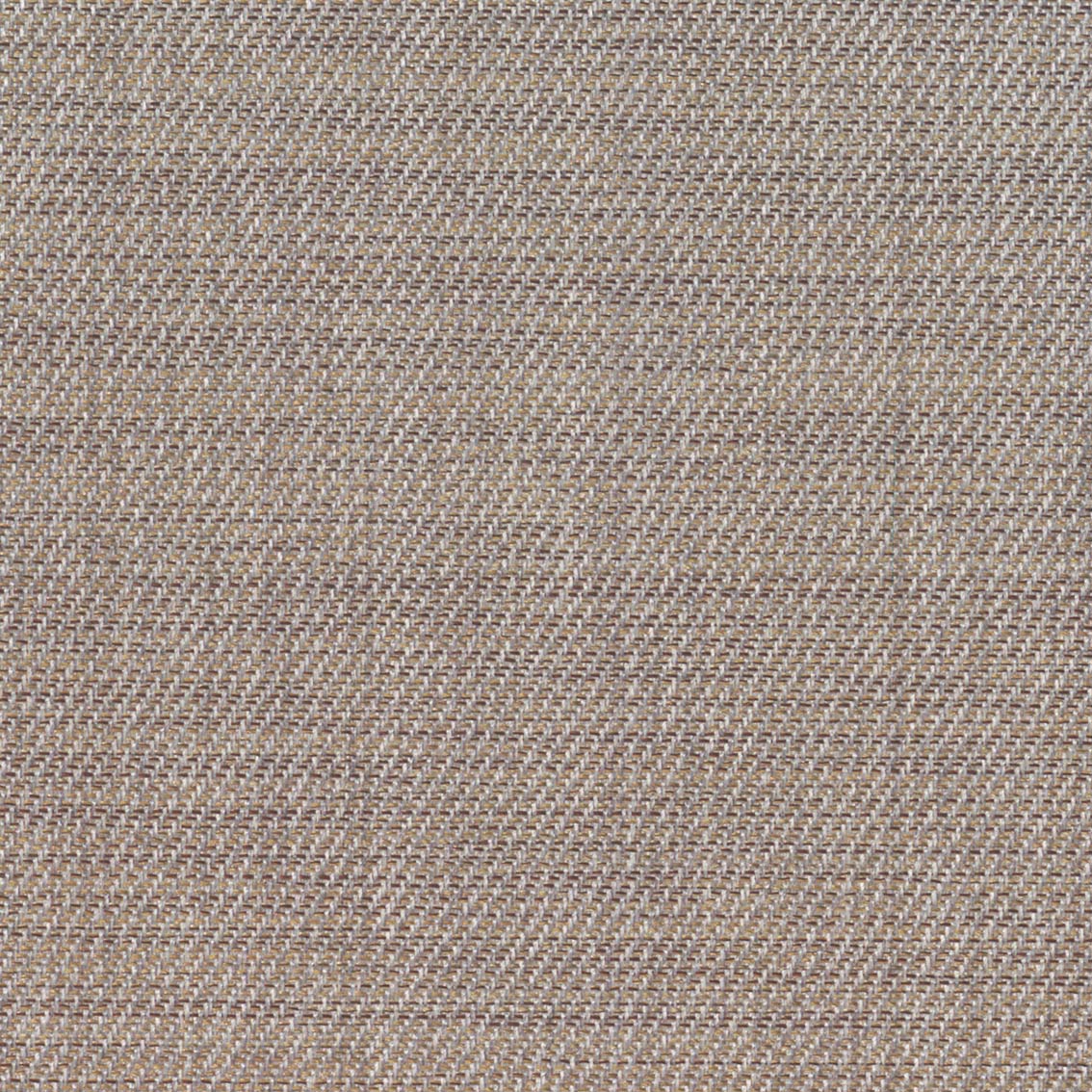

Panache

Openness

3%

Max Width

118"
Frost
Gunmetal
Noir

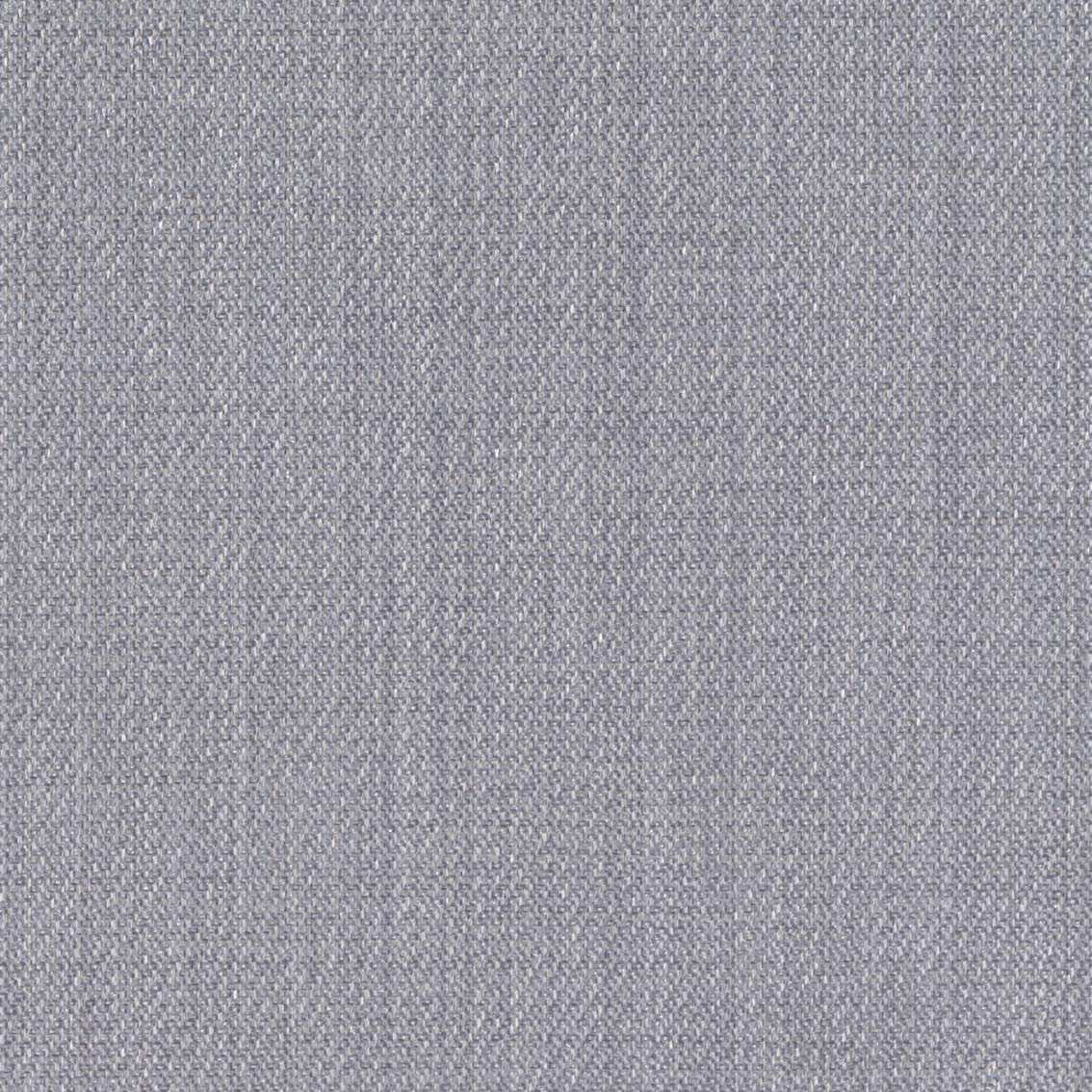

Platinum
Sparkler
Tinsel

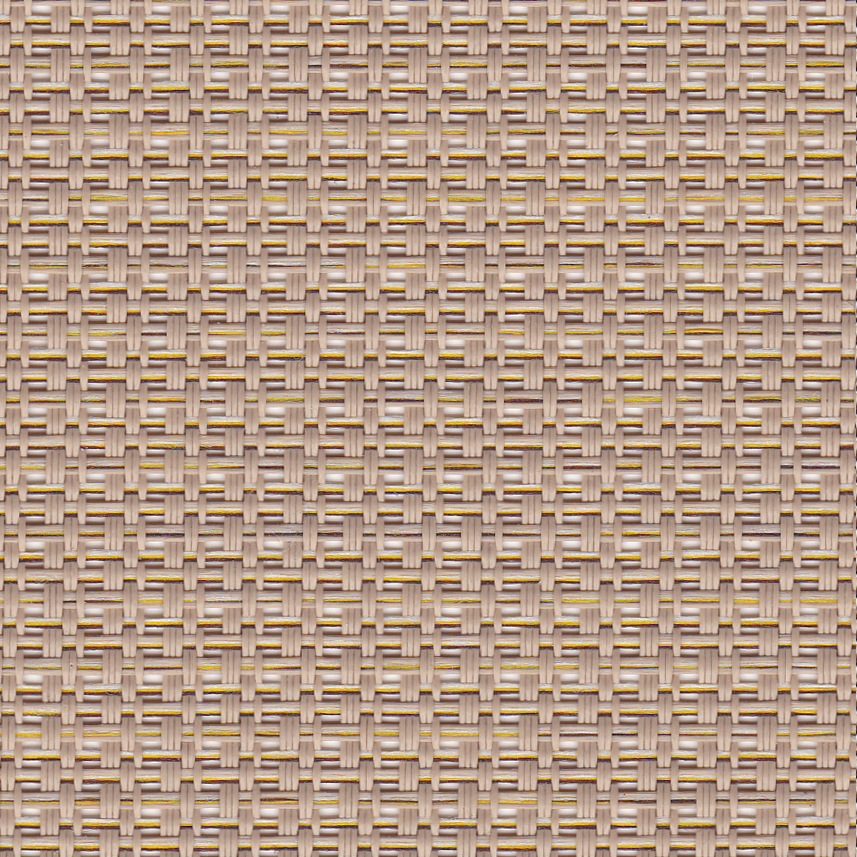

Panama

Openness

12%

Max Width

114"
Cement
Otter
Papyrus
Safari

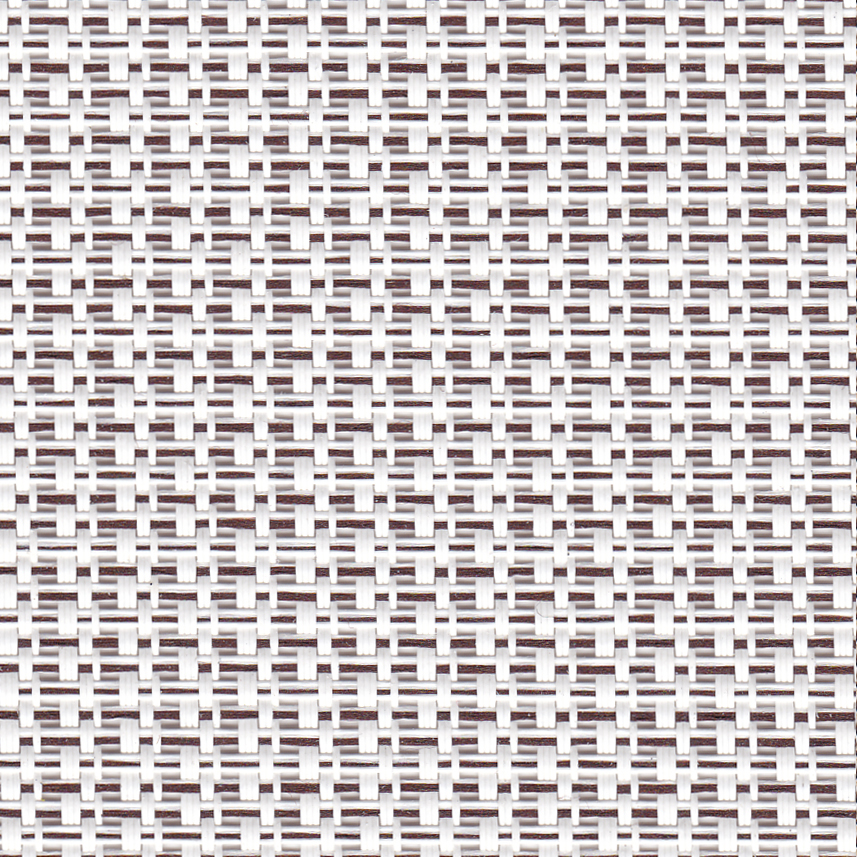

Tapioca

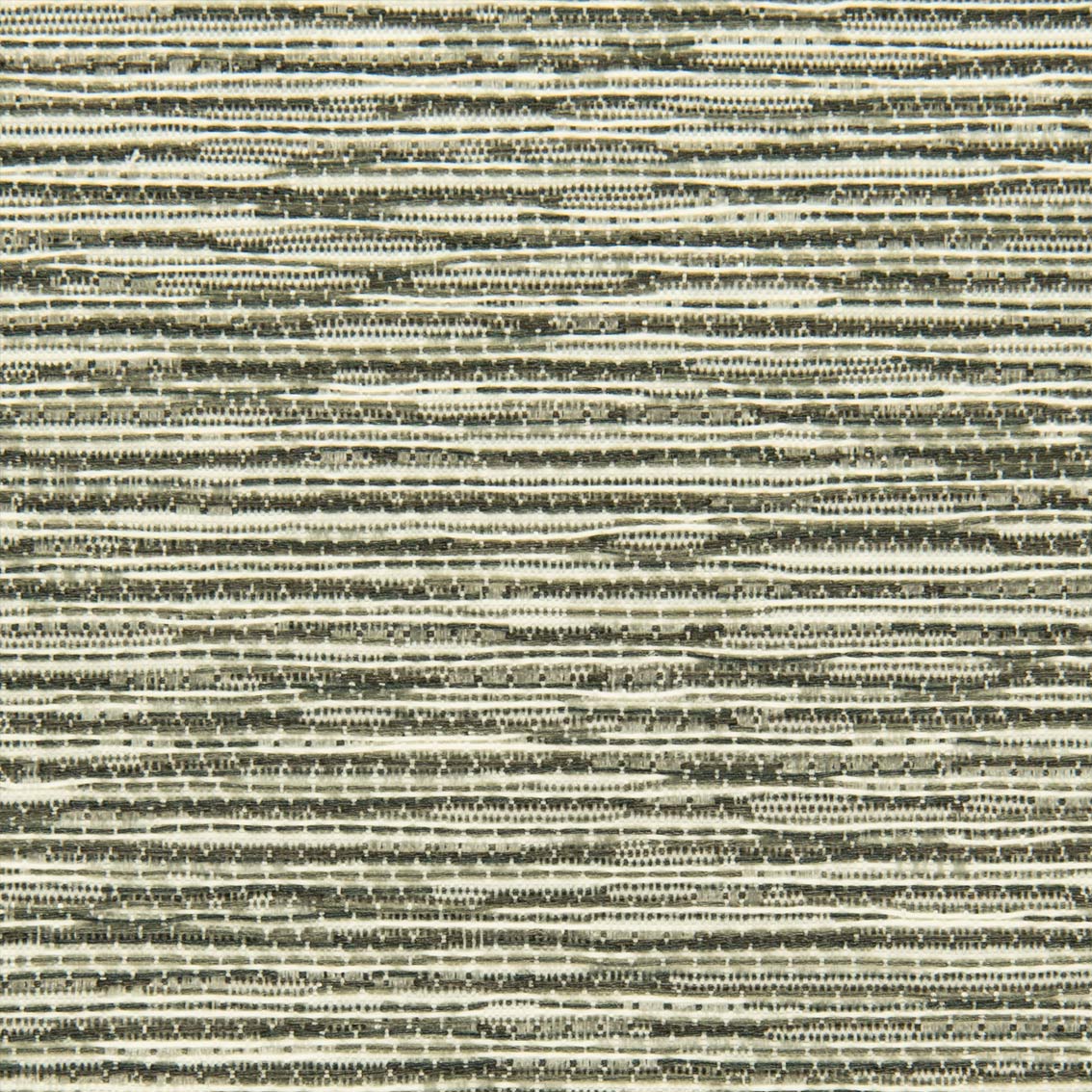

Roscoe

Openness

0%

Max Width

118"

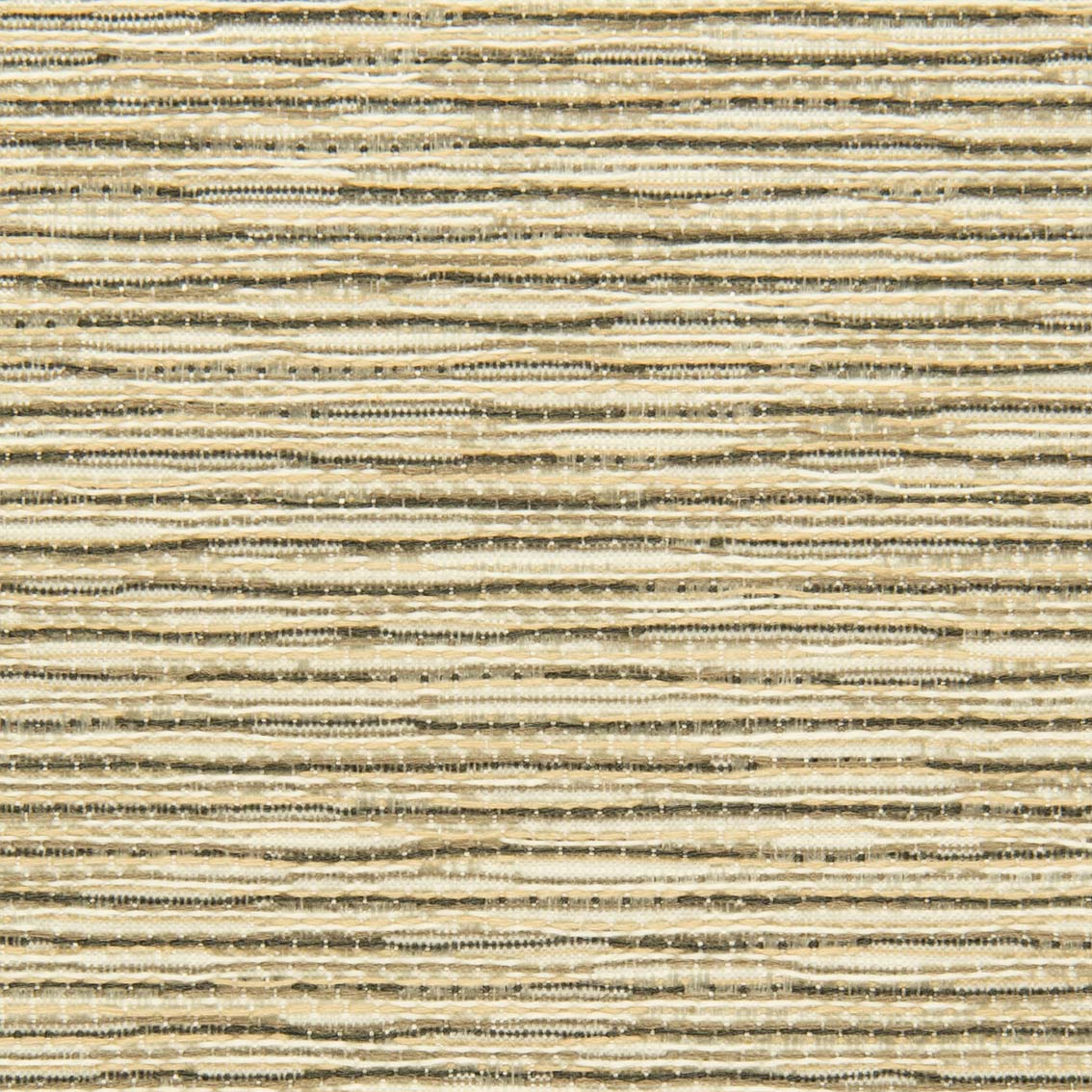

Desert
Granite

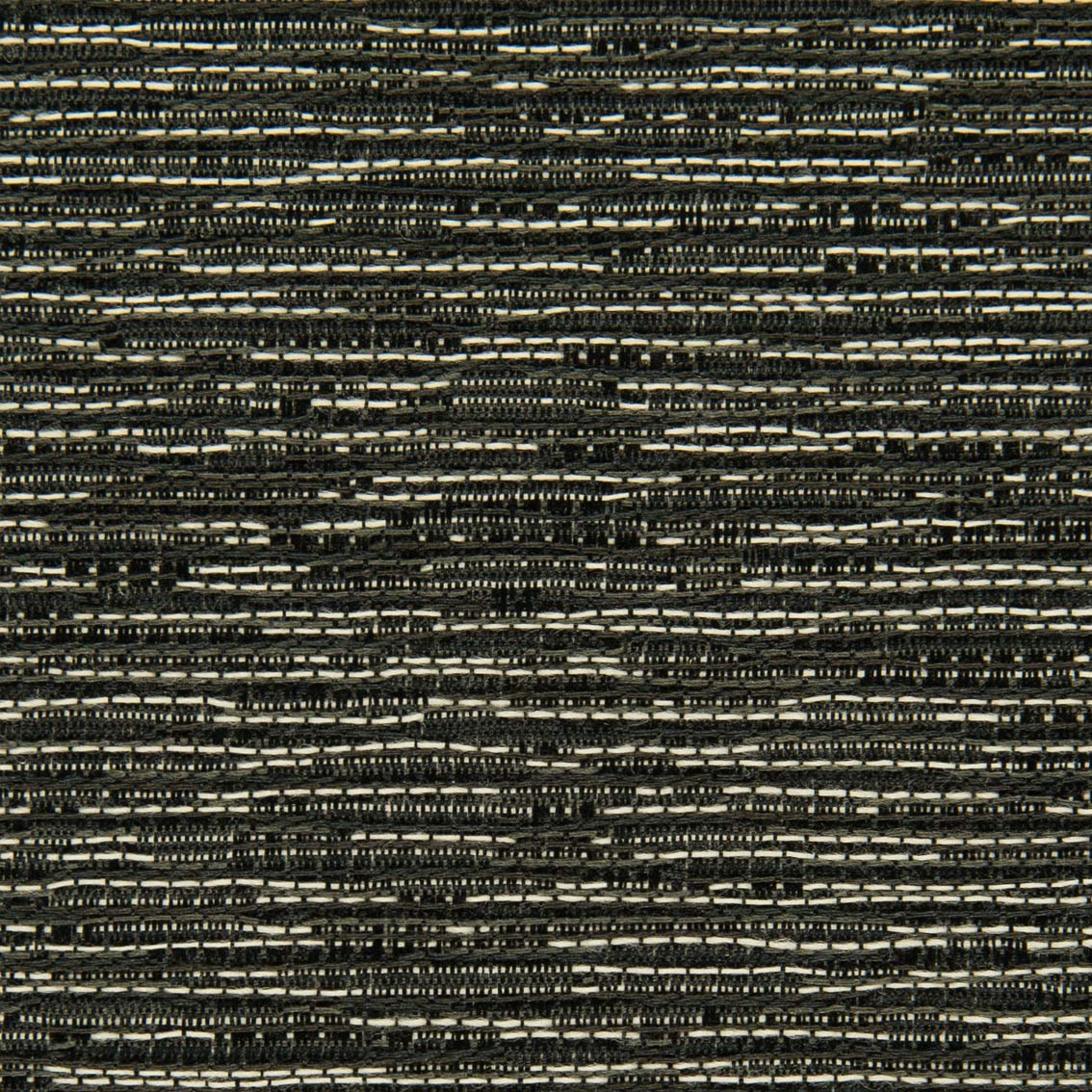

Shadow

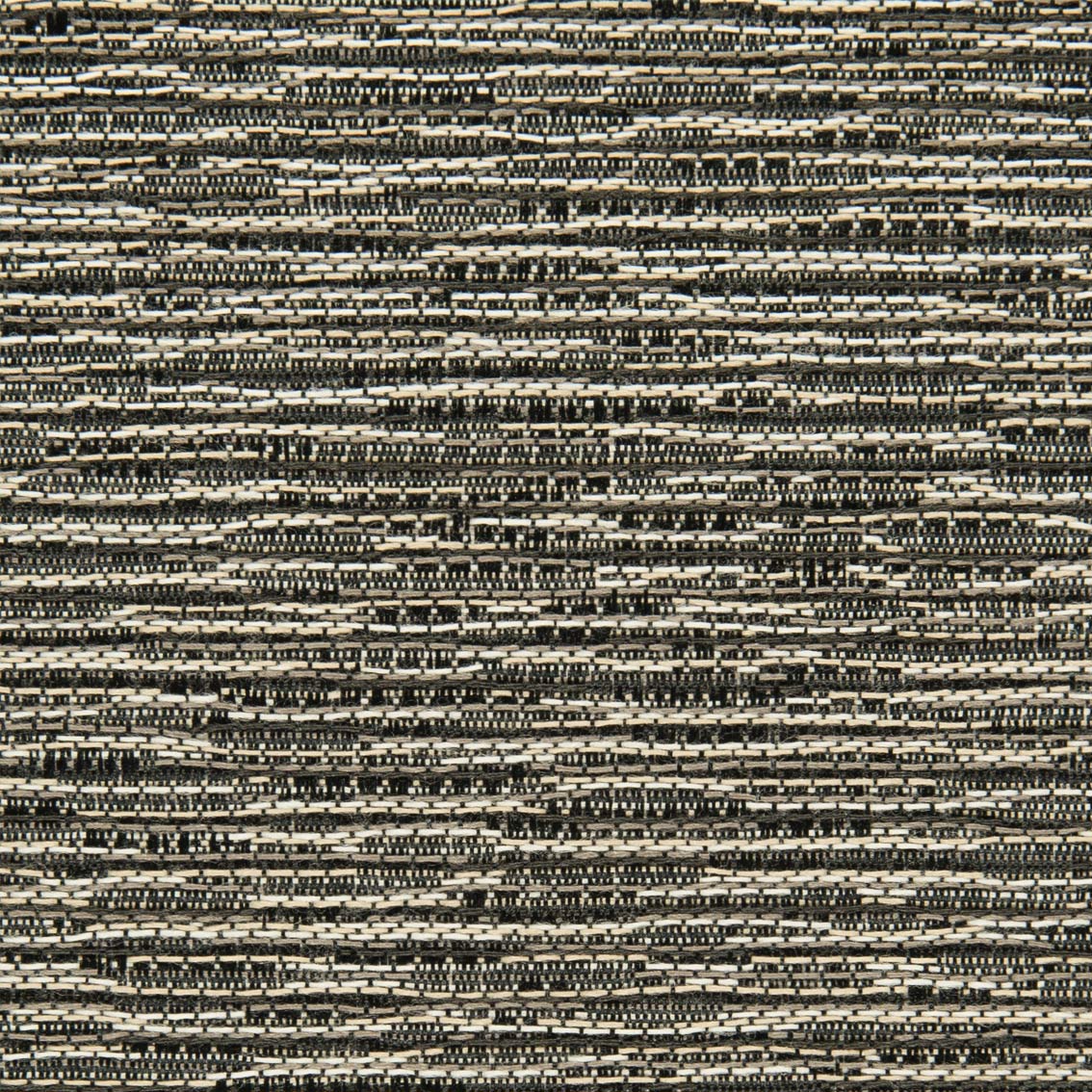

Smoke

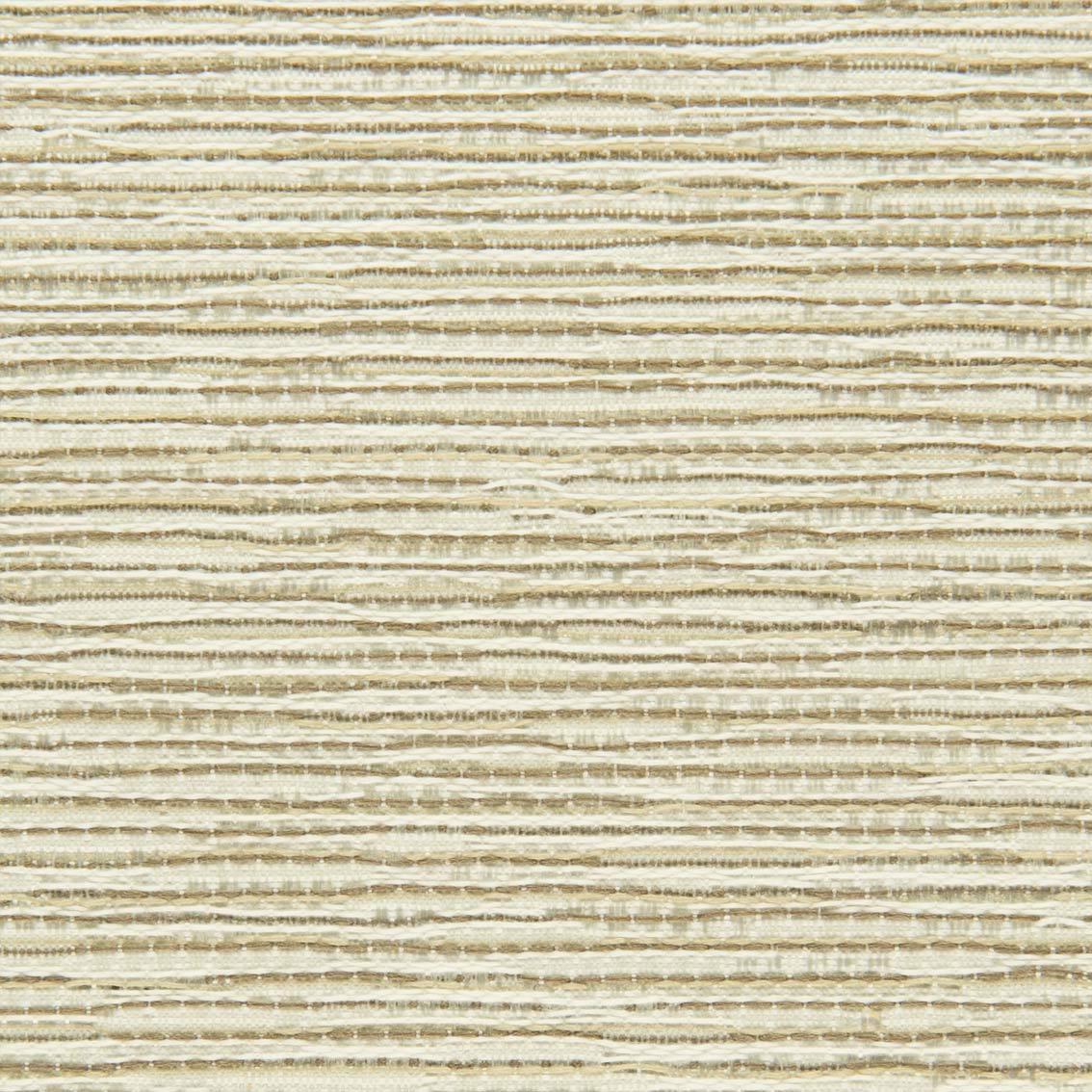

Talc

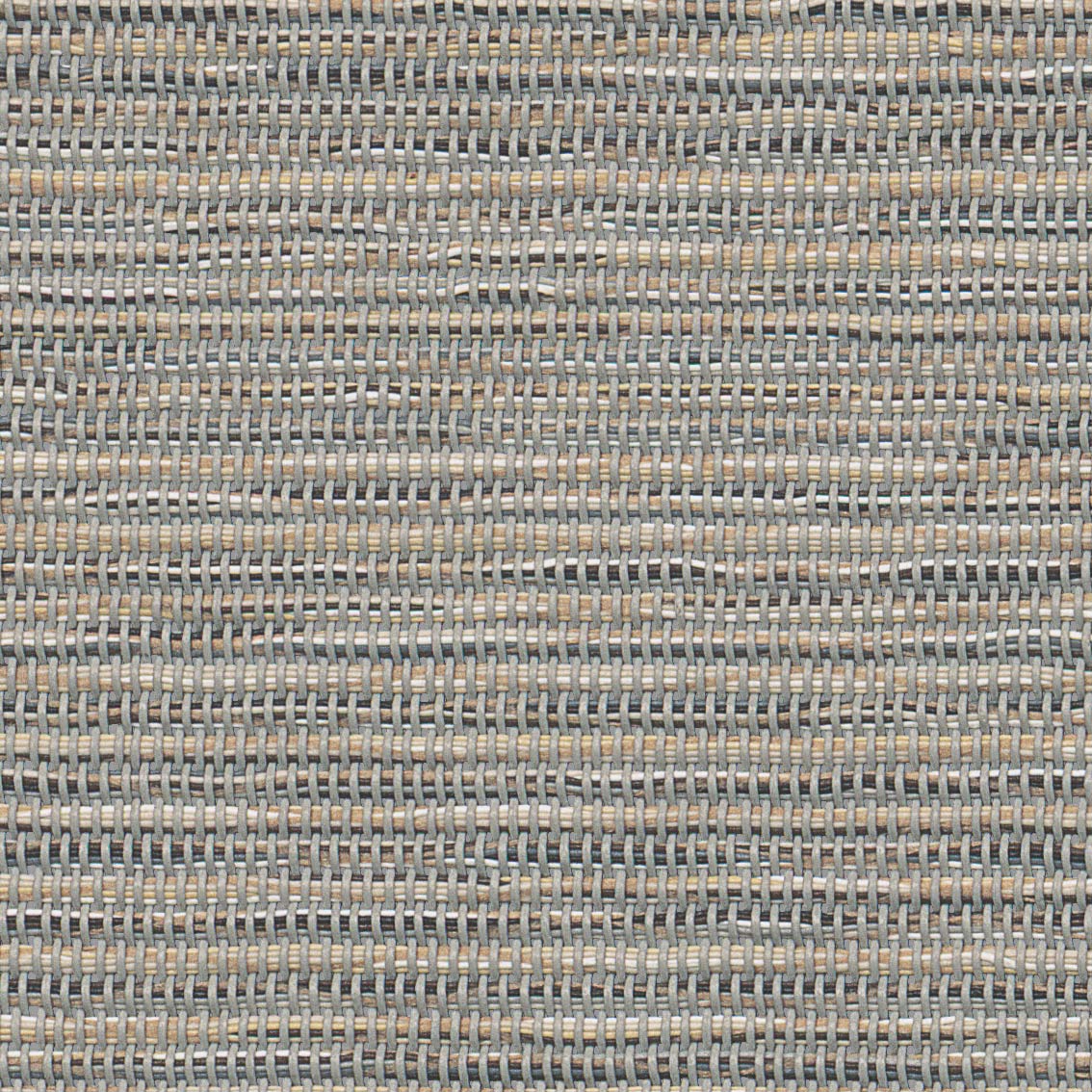

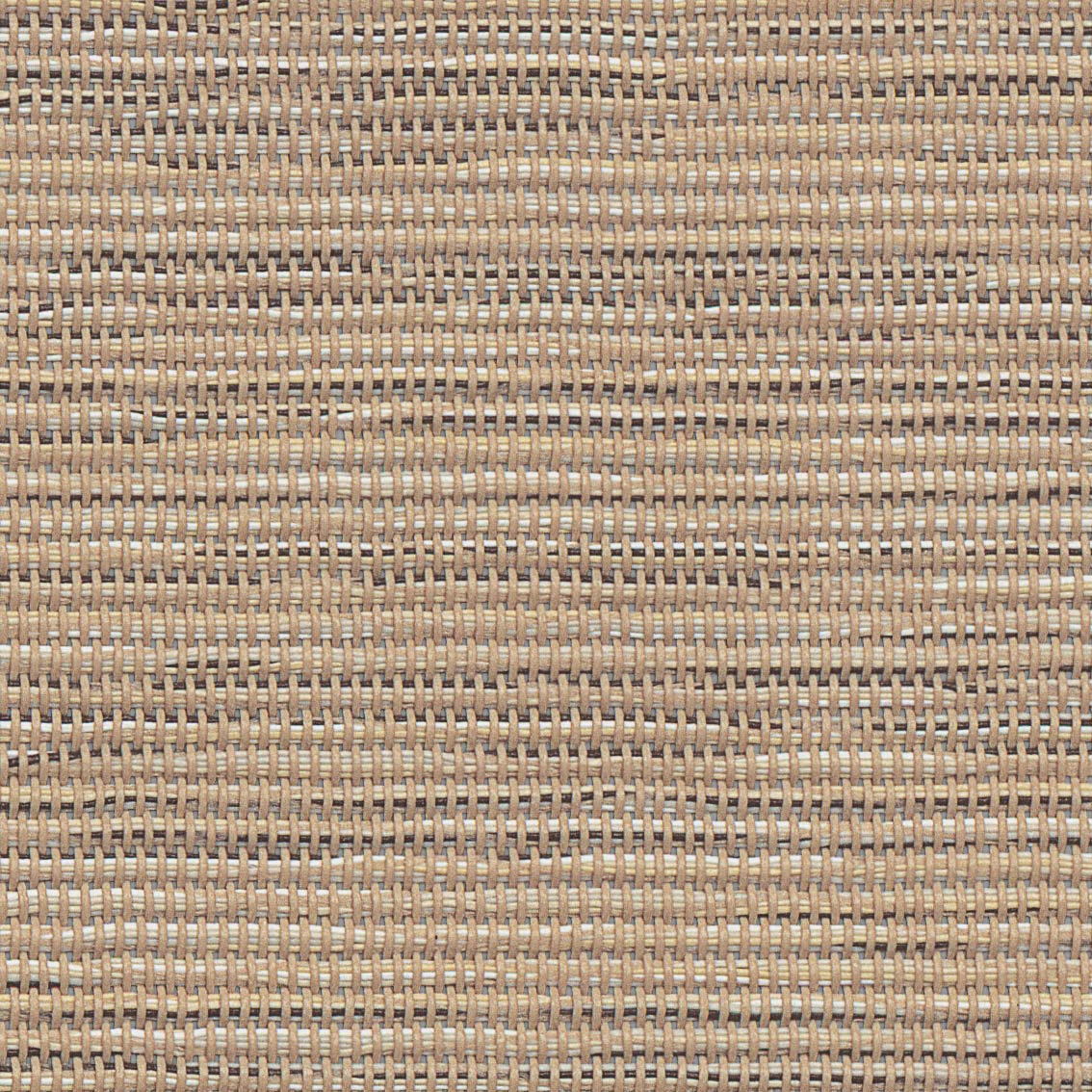

Stanton

Openness

1% 4%

Max Width

122"
Granite
Jute
Nougat
Papyrus

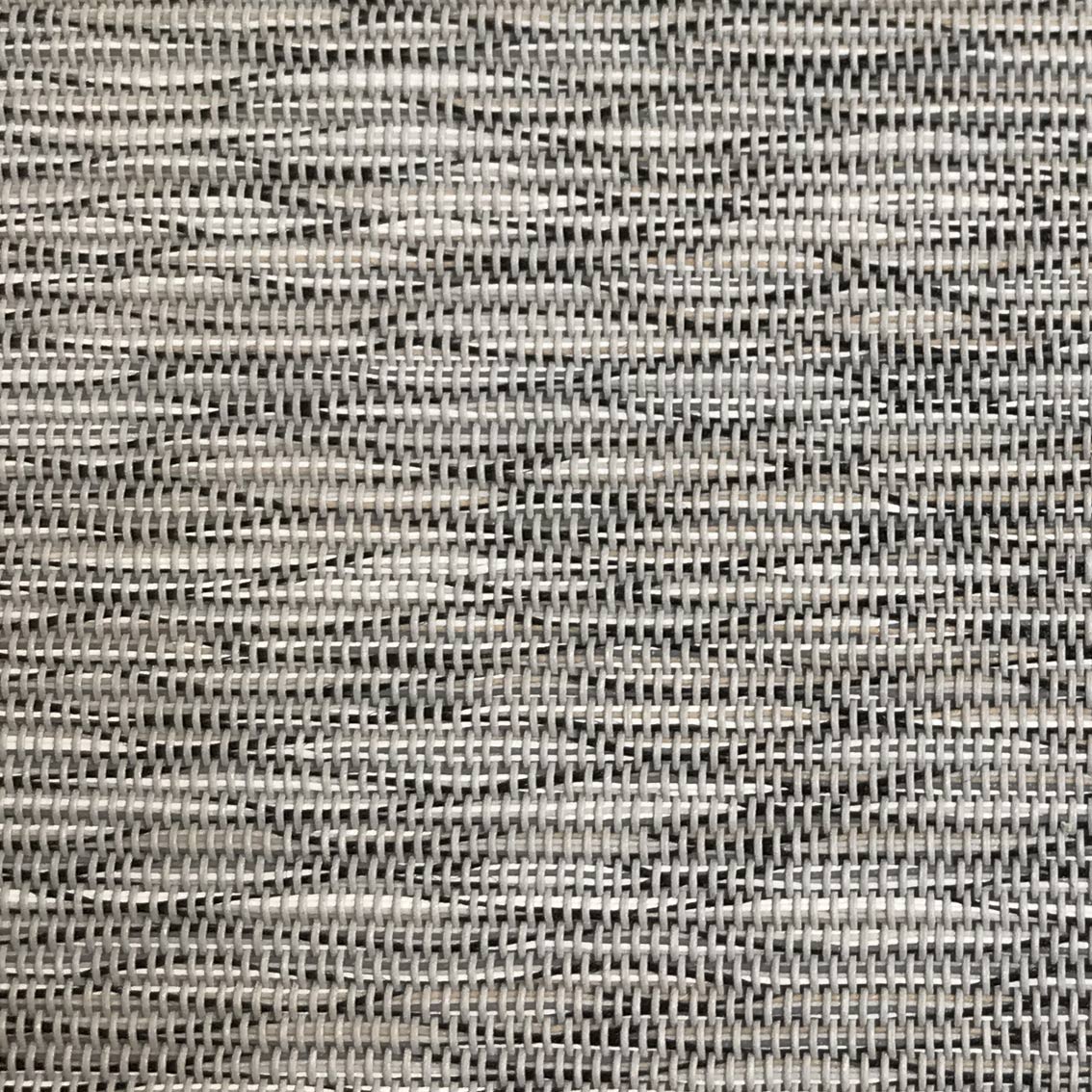

Peppercorn

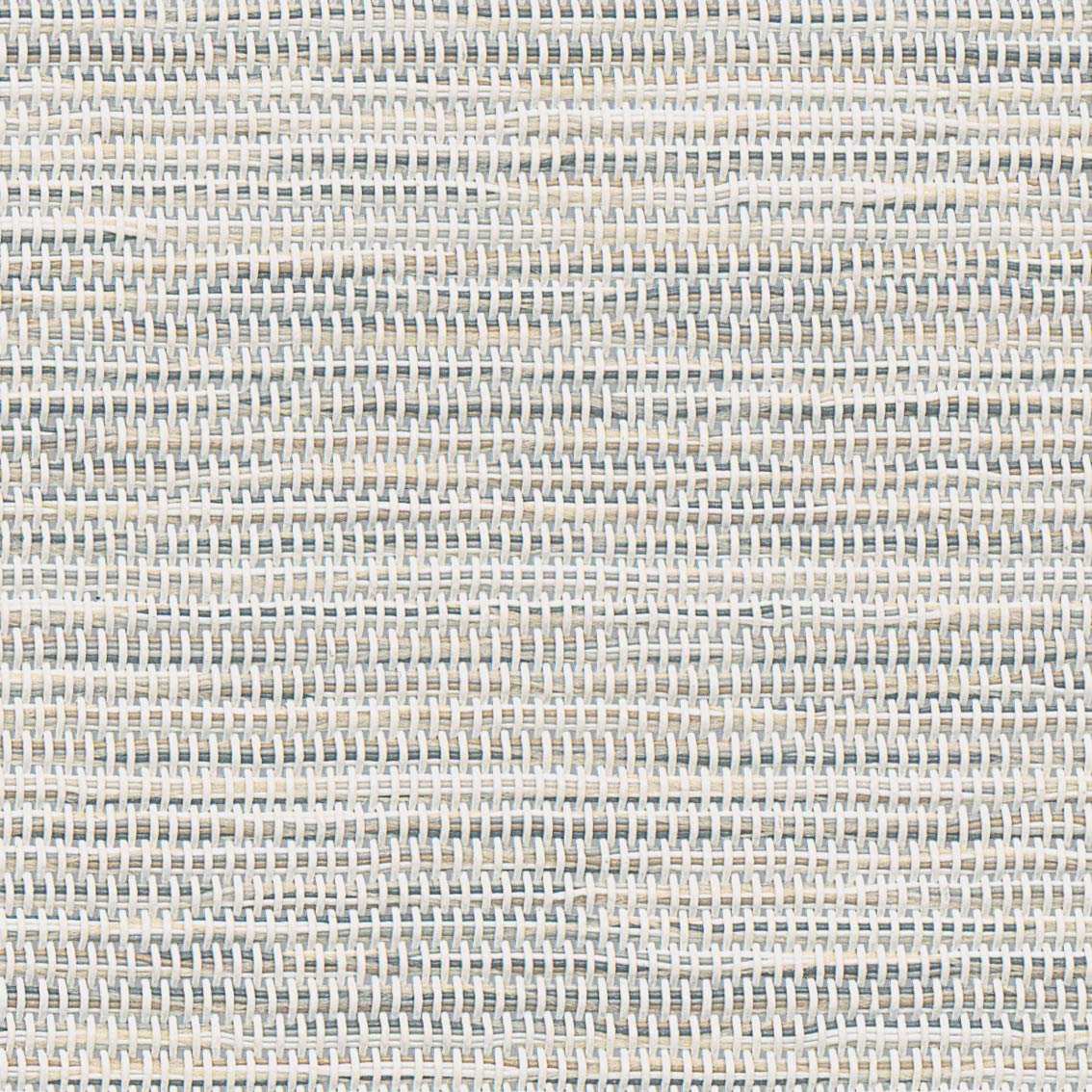

Porcelain
Seasalt

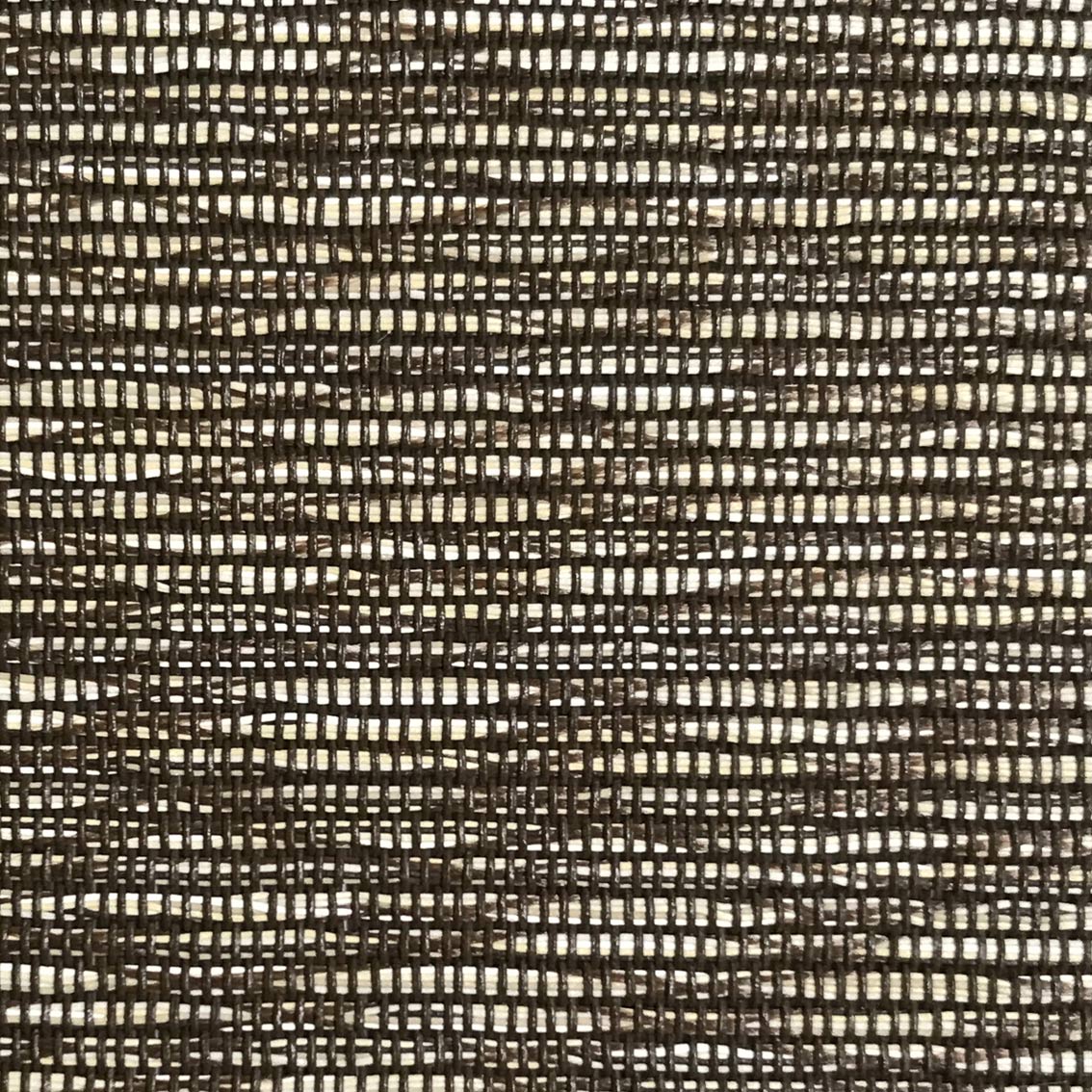

Sesame

Stanton Natural

Openness

5%

Max Width

98"
Andes

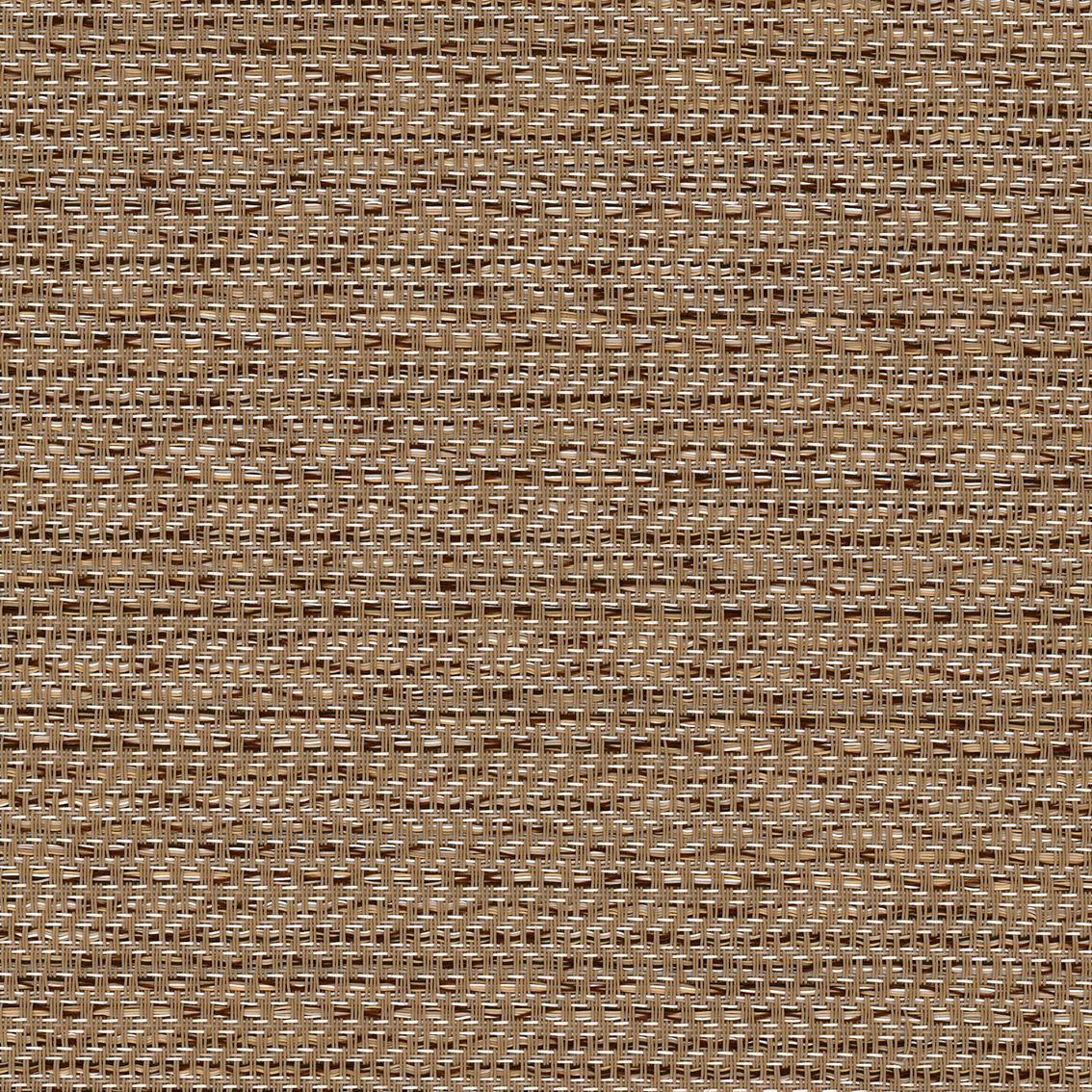

Appalachian

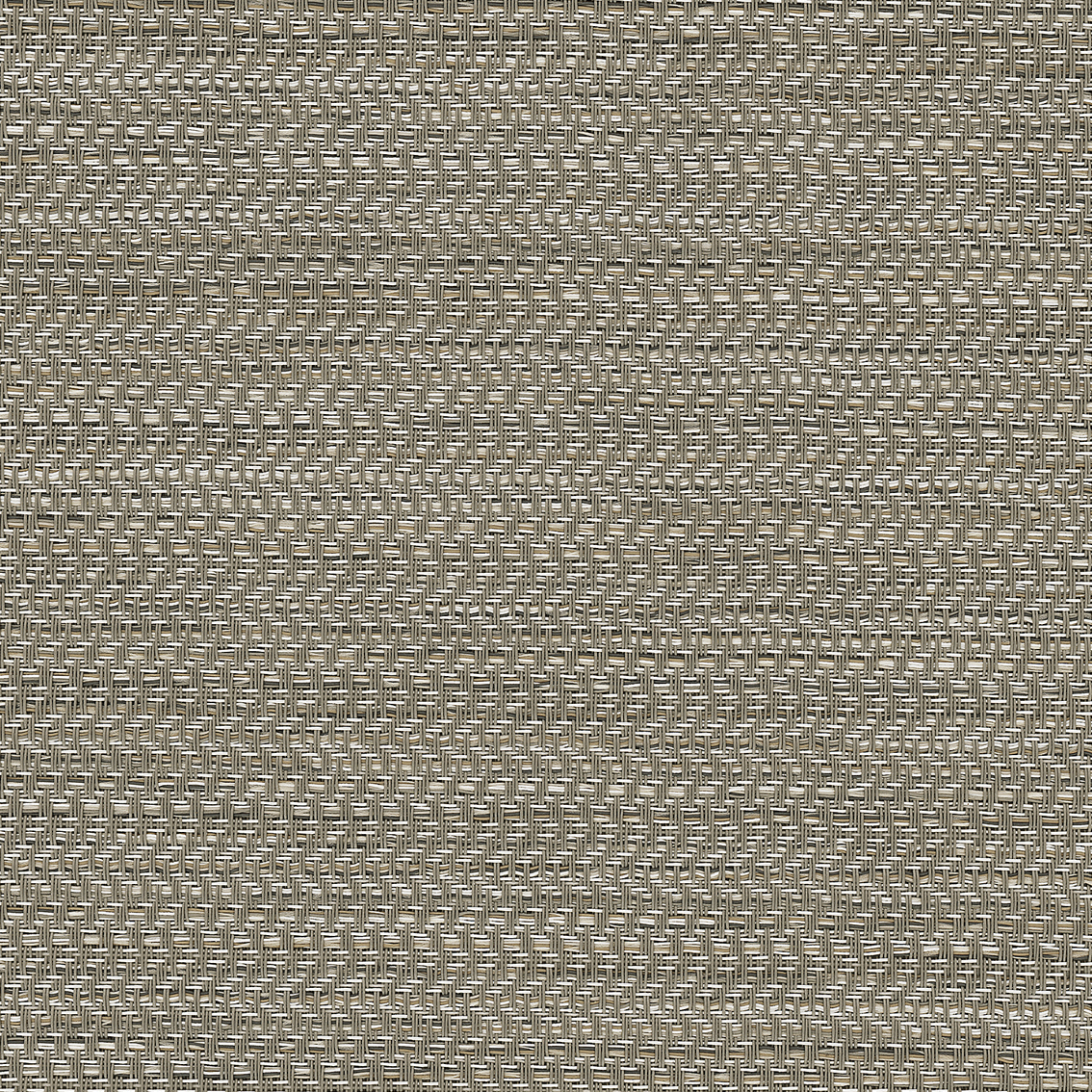

Cascade

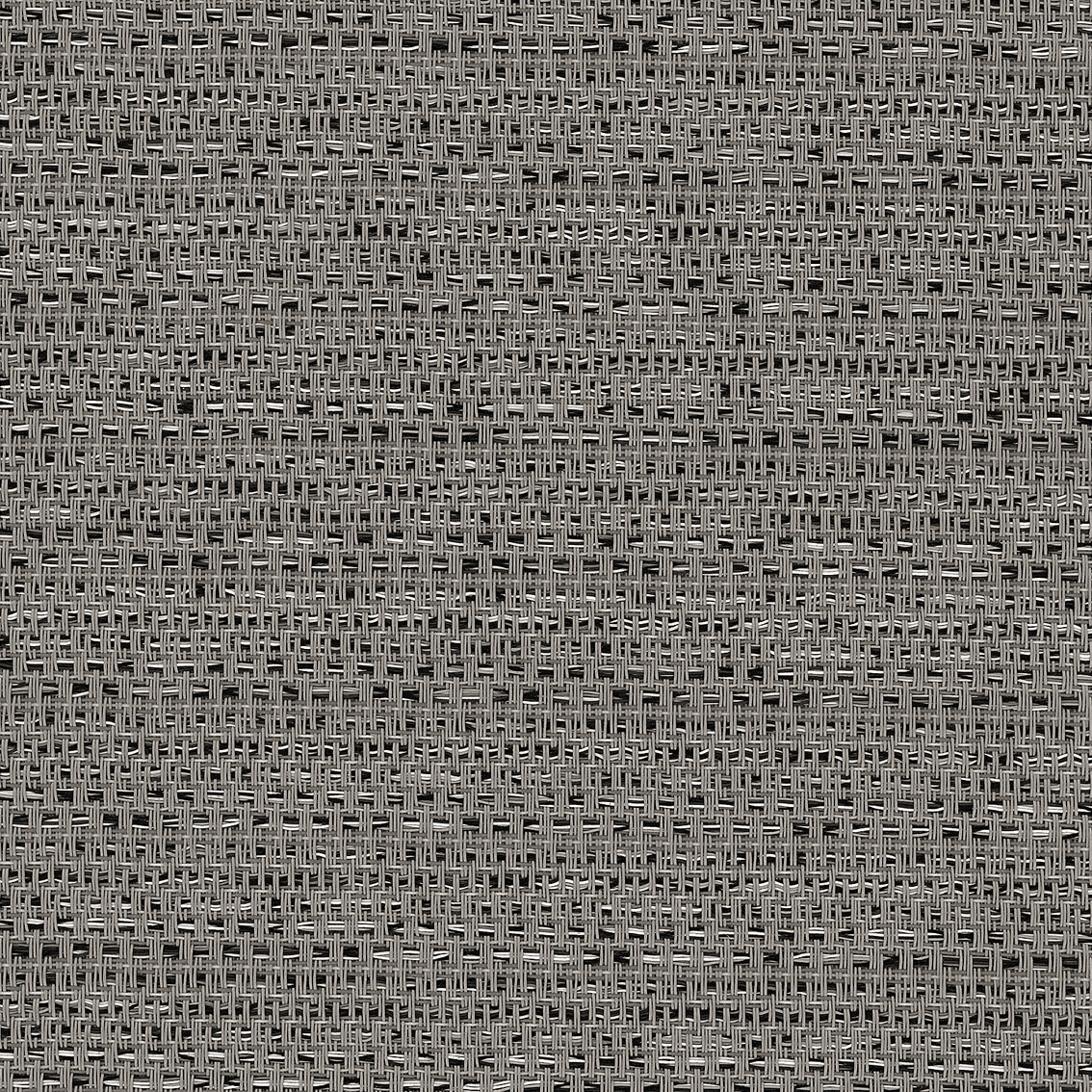

Everest

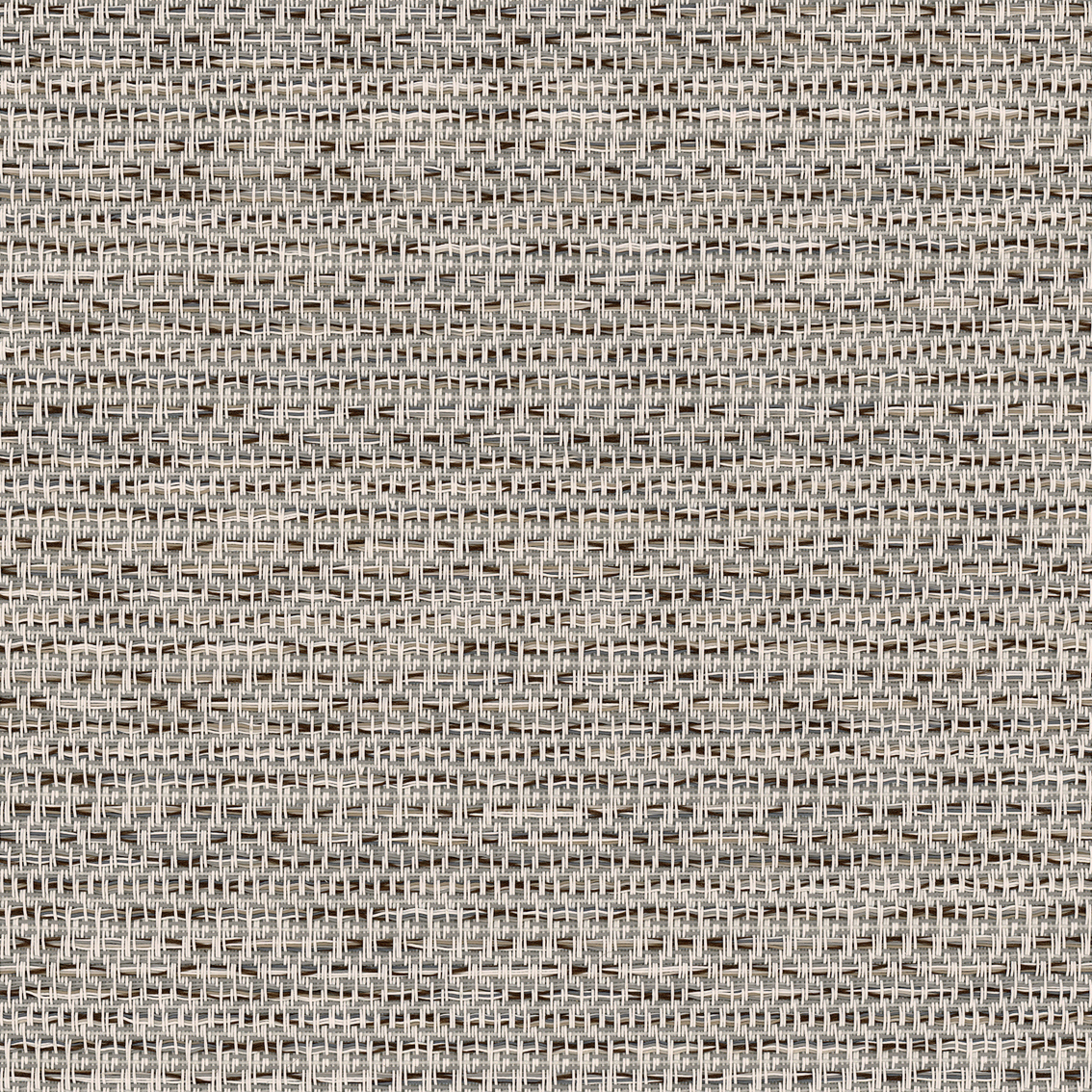

Matterhorn

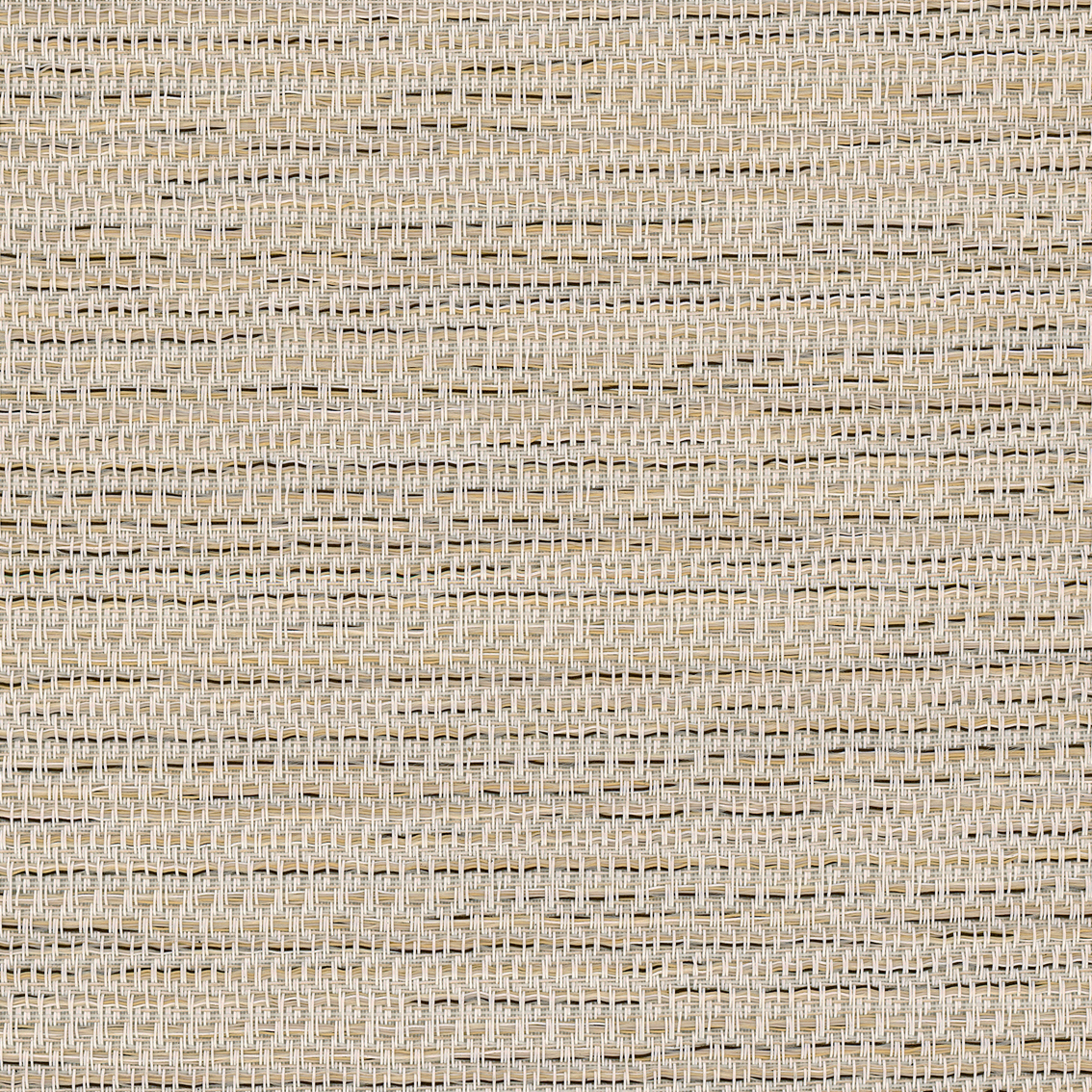

Pyrenees

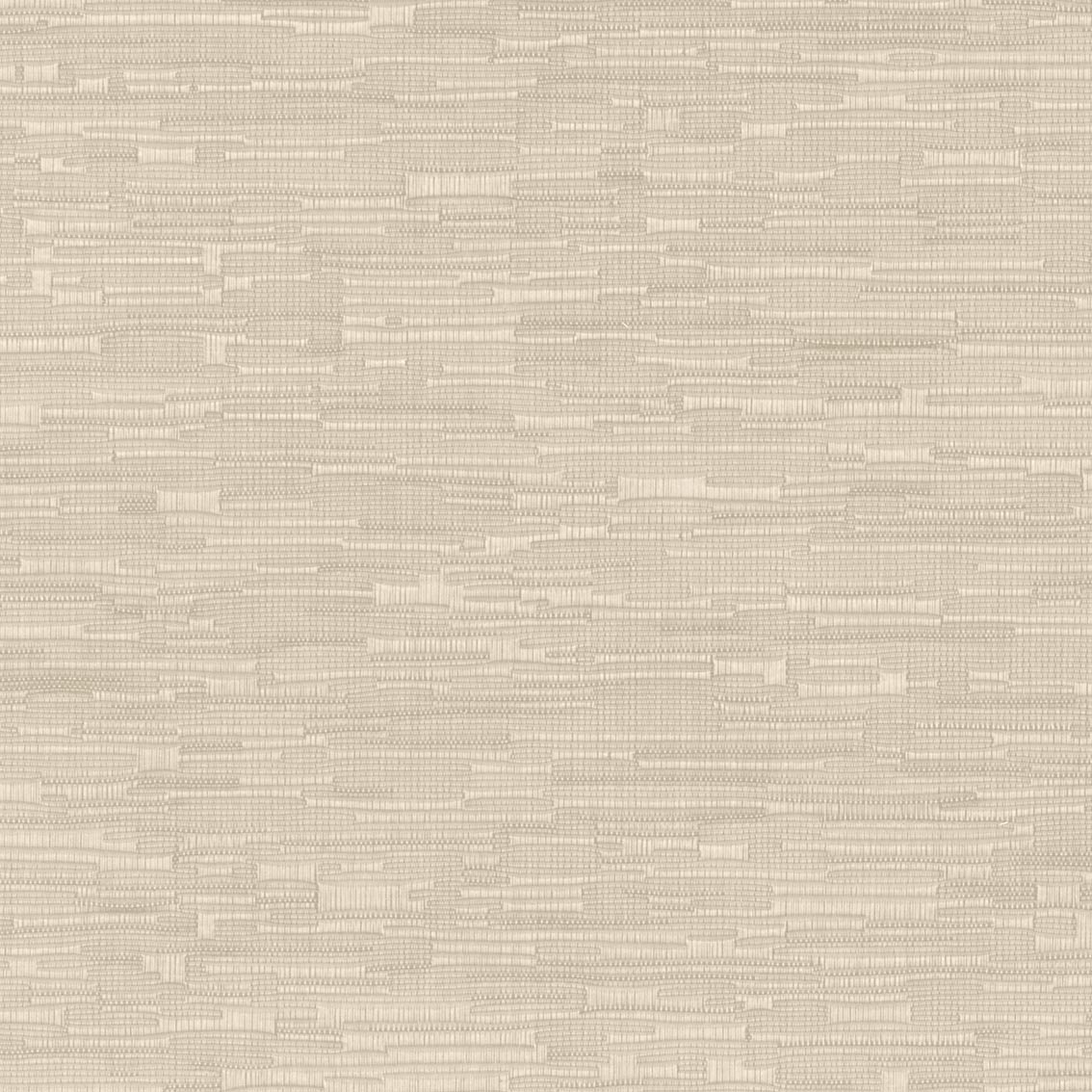

Striate

Openness

0%

Max Width

110"
Alloy
Beige
Bone
Mist

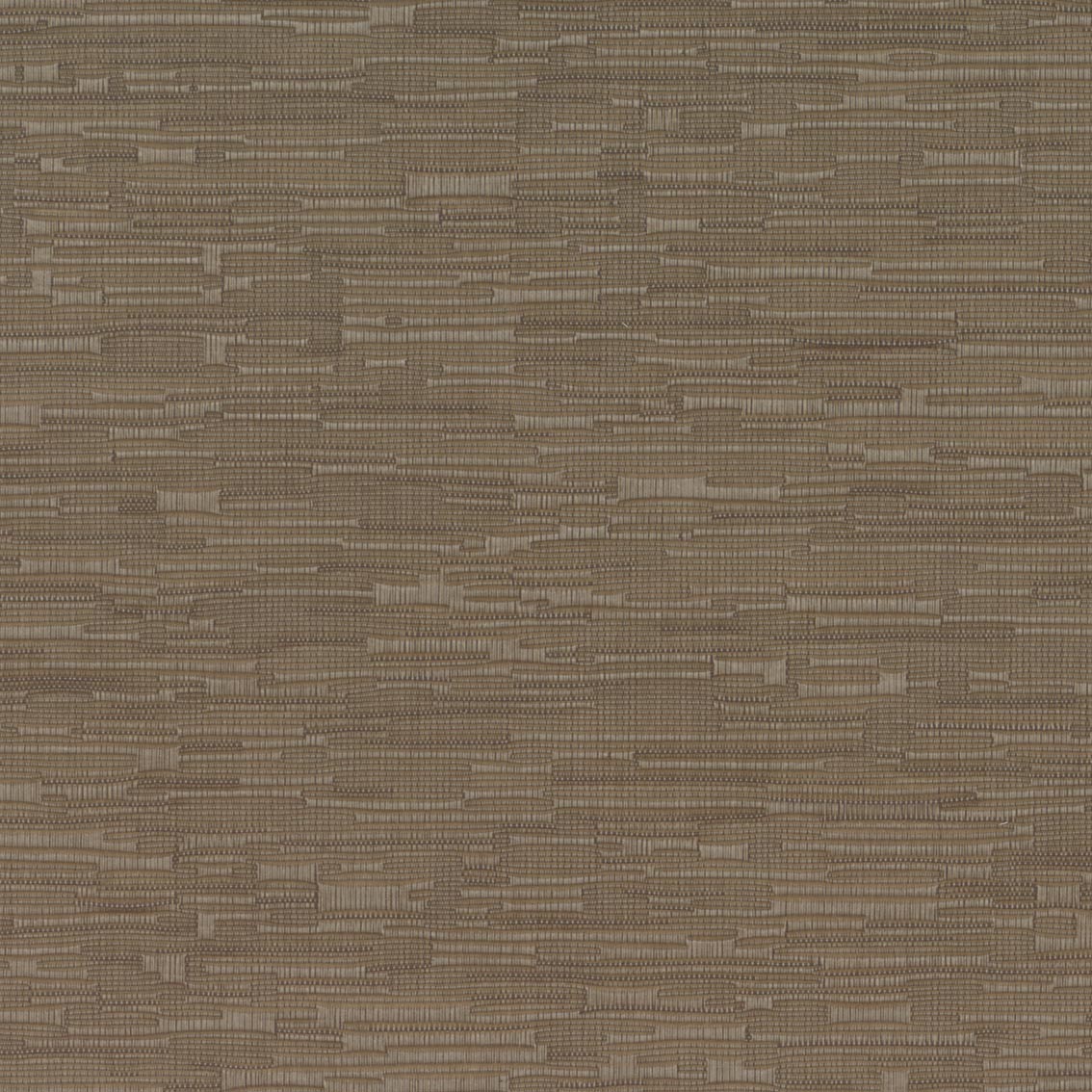

Taupe

Valencia (Printable)

Openness

18%

Max Width

116"
Snow
