Flare (Printable)
3% and 5% Openness
Print page

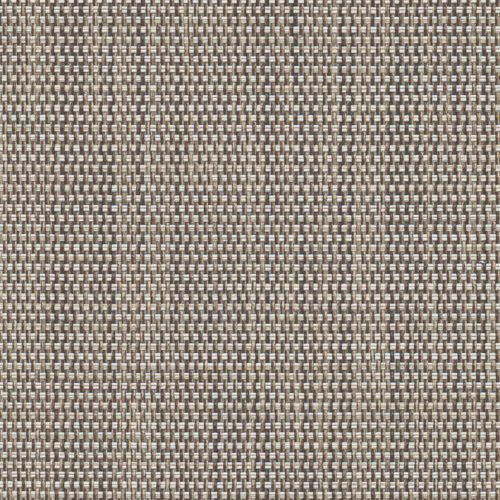

Caramel

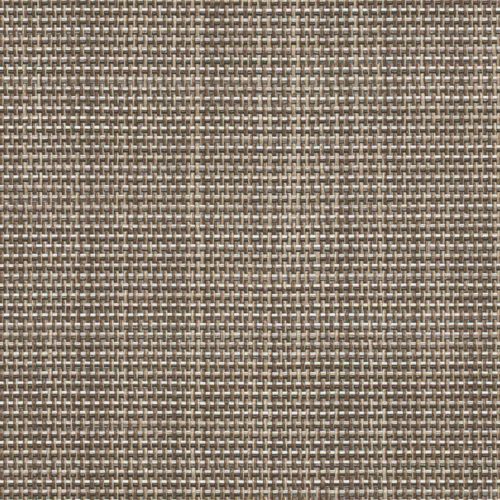

Chestnut

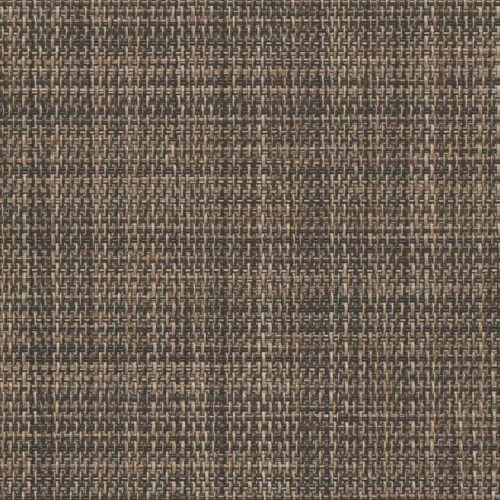

Espresso

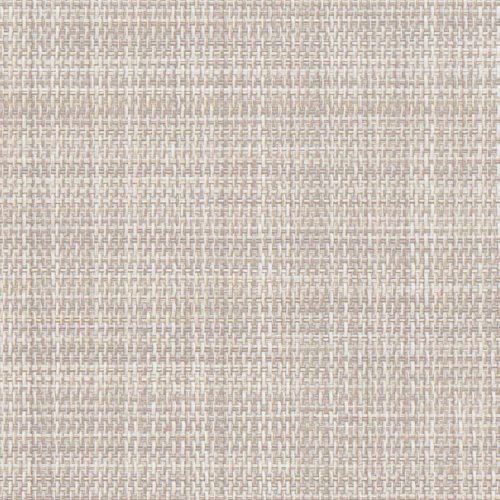

Khaki

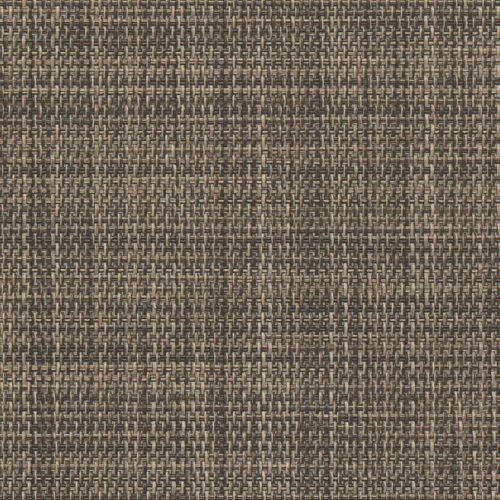

Mocha

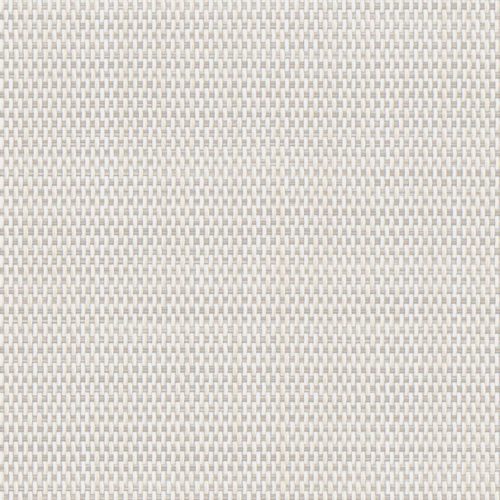

Off White

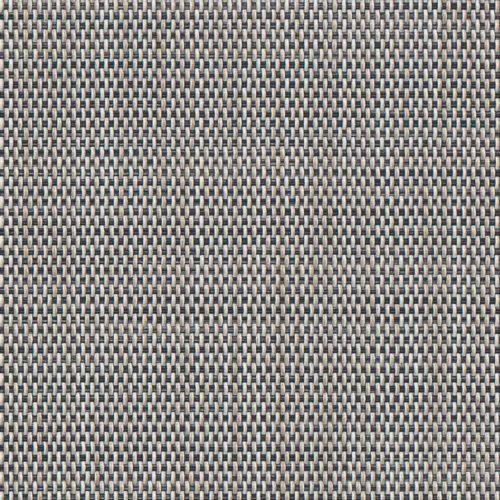

Taupe
Specifications
Maximum Fabric/ShadeWidth: 98″
UV Blockage: Approximately 97% and 95%
Composition: 64% Vinyl, 36% Fiberglass
Fabric Weight: 12.21 oz/yd² (3%), 11.3 oz/yd² (5%)
Fabric Thickness: 0.023″ (3%), 0.020″ (5%)
Railroad Available: No
Printable Available: Yes – 96″ Max
Fire Classification: NFPA 701-10 TM#1, California U.S. Title 19
Bacterial and Fungal Resistance: ASTM E2180, ASTM G21
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization
Note: Several factors determine the maximum length of fabric. Please send project-specific specifications to our quoting department for more information.
Care and Cleaning
Remove dust with a vacuum cleaner or compressed air. Do not scrub. Do not use solvents or any abrasive substance which might damage the coating of the fabric. Clean with a sponge or soft brush dipped in soapy water using a mild detergent. Rinse with clean water. Leave the blind down until completely dry. You can also very gently rub the fabric with a clean white pencil eraser to remove small stains.
| Color |
|---|
| Caramel |
| Chestnut |
| Espresso |
| Khaki |
| Mocha |
| Off White |
| Taupe |
Solar Optical Properties 3%
| TS | RS | AS | TV |
|---|---|---|---|
| 8 | 30 | 62 | 6 |
| 6 | 23 | 71 | 5 |
| 4 | 13 | 83 | 4 |
| 13 | 54 | 33 | 9 |
| 6 | 15 | 79 | 5 |
| 16 | 64 | 20 | 12 |
| 7 | 33 | 57 | 9 |
| Color |
|---|
| Caramel |
| Chestnut |
| Espresso |
| Khaki |
| Mocha |
| Off White |
| Taupe |
Solar Heat Gain Coefficient 3%
| CL-S | DG |
|---|---|
| 0.55 | 0.47 |
| 0.59 | 0.49 |
| 0.64 | 0.53 |
| 0.41 | 0.39 |
| 0.63 | 0.52 |
| 0.36 | 0.36 |
| 0.53 | 0.46 |
| Color |
|---|
| Caramel |
| Chestnut |
| Espresso |
| Khaki |
| Mocha |
| Off White |
| Taupe |
Solar Optical Properties 5%
| TS | RS | AS | TV |
|---|---|---|---|
| 10 | 29 | 61 | 8 |
| 29 | 20 | 72 | 7 |
| 7 | 14 | 79 | 7 |
| 15 | 52 | 33 | 11 |
| 8 | 16 | 76 | 6 |
| 16 | 63 | 21 | 12 |
| 10 | 33 | 57 | 9 |
| Color |
|---|
| Caramel |
| Chestnut |
| Espresso |
| Khaki |
| Mocha |
| Off White |
| Taupe |
Solar Heat Gain Coefficient 5%
| CL-S | DG |
|---|---|
| 0.56 | 0.48 |
| 0.61 | 0.50 |
| 0.64 | 0.52 |
| 0.43 | 0.40 |
| 0.63 | 0.52 |
| 0.37 | 0.37 |
| 0.53 | 0.46 |
the fenestration property test were conducted in accordance with EN 14501:2005, ASTM 891, ASTM E903-96: Solar Heat Gain Coefficient (SHGC), Solar Transmittance (TS), Solar Reflectance (AS), Solar Absorption (AS), Visual Light Transmittance (TV); 1/4 (6mm) Clear Glass, Single Glazing (CL-S); Double Glazing 4mm/16mm/4mm with low E-coating in position 3, space filled with Argon (DG); To calculate shading coefficient: SHGC CL-S/0.87. The above data is indicative.
* Please note that the Openness Factor is an approximation and may vary from color to color in the same fabric due to the color and manufacturing process.
