GreenScreen Revive
1% and 5% Openness
Print page

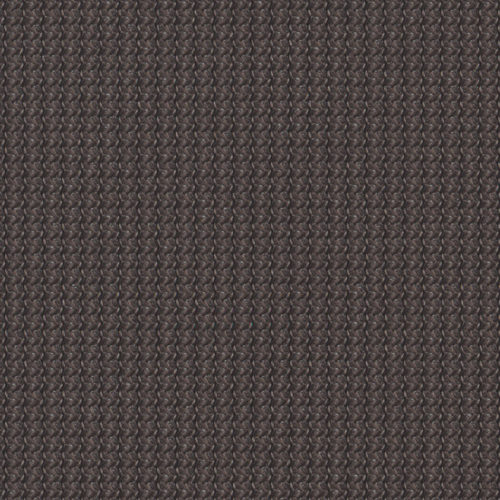

Dusk

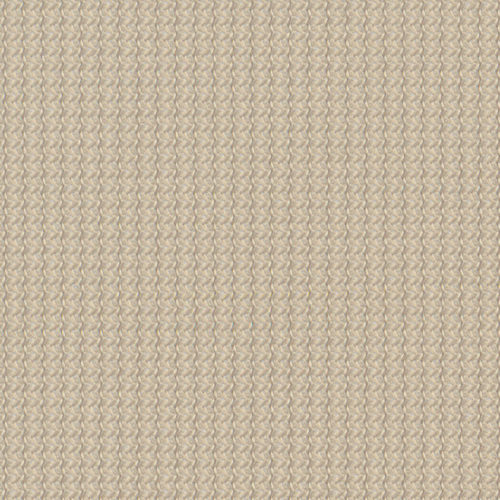

Linen

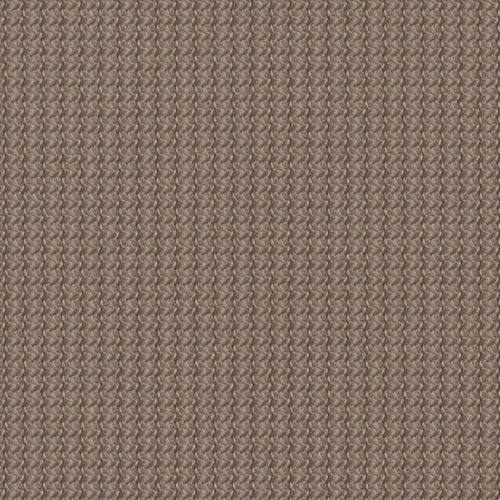

Mushroom

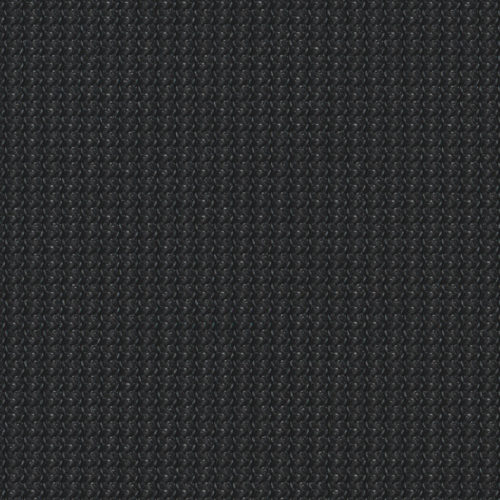

Onyx

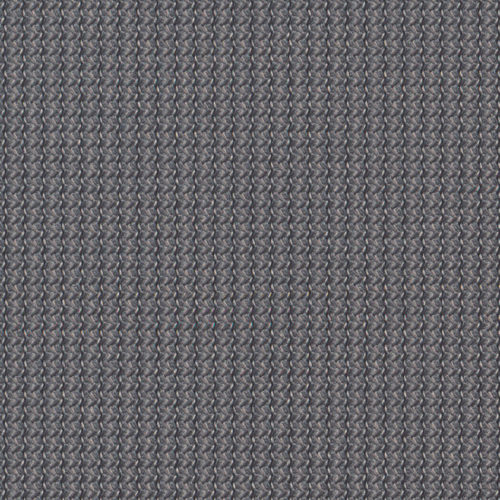

Pewter

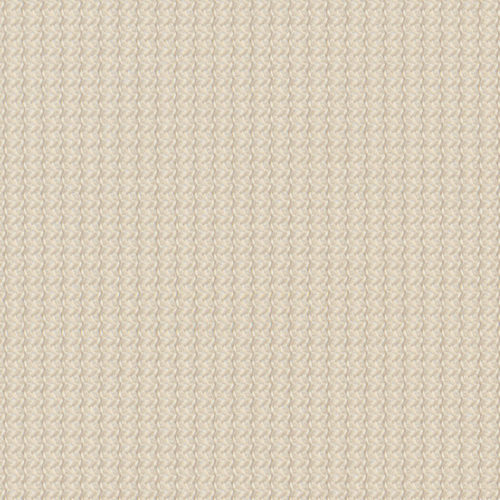

Sand

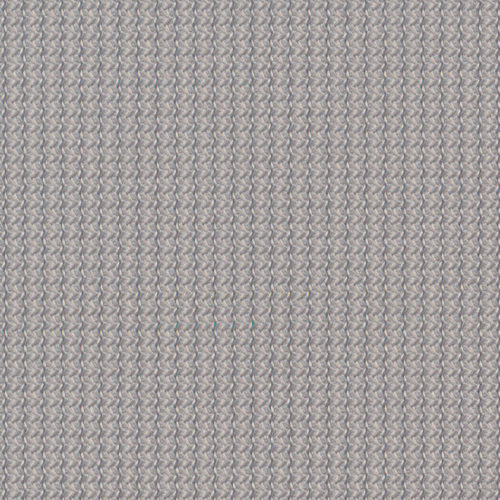

Stone

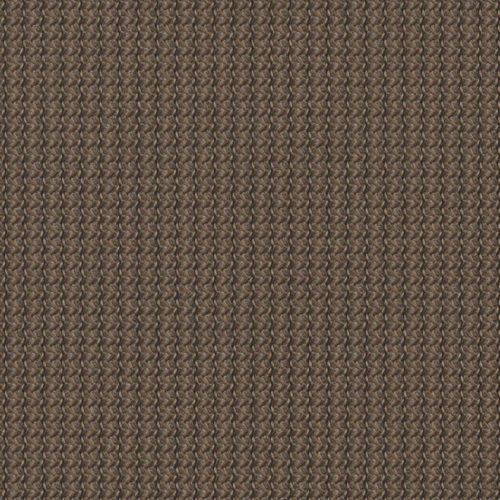

Suede
Specifications
Maximum Fabric Width: 118″
UV Blockage: Approximately 99% and 95%
Composition: 100% Polyester (PVC Free), 89% Recycled content
Fabric Weight: 5.87 oz/yd² (1%), 5.01 oz/yd² (5%)
Fabric Thickness: 0.019″ (1%), 0.017″ (5%)
Railroad Available: No
Printable Available: No
Fire Classification: NFPA 701-04 TM#1, California U.S. Title 19
Bacterial and Fungal Resistance: ASTM G21
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization
Note: Several factors determine the maximum length of fabric. Please send project-specific specifications to our quoting department for more information.
Care and Cleaning
Regular light dusting with a feather duster is suggested. A hand-held vacuum with low suction may also be used. When vacuuming, avoid pulling or stretching the fabric. Rigorous vacuuming is not recommended since this could distort the fabric. Alternatively, dirt and debris can be blown away using compressed air or a hand-held hair dryer on the cool setting.
| Color |
|---|
| Dusk |
| Linen |
| Mushroom |
| Onyx |
| Pewter |
| Sand |
| Stone |
| Suede |
Solar Optical Properties (1%)
| TS | RS | AS | TV |
|---|---|---|---|
| 14 | 36 | 50 | 2 |
| 25 | 58 | 17 | 20 |
| 20 | 46 | 34 | 10 |
| 17 | 34 | 49 | 5 |
| 19 | 43 | 38 | 8 |
| 26 | 61 | 13 | 23 |
| 24 | 52 | 24 | 17 |
| 19 | 39 | 42 | 7 |
| 28 | 66 | 6 | 27 |
| Color |
|---|
| Dusk |
| Linen |
| Mushroom |
| Onyx |
| Pewter |
| Sand |
| Stone |
| Suede |
Solar Heat Gain Coefficient (1%)
| CL-S | DG |
|---|---|
| 0.52 | 0.45 |
| 0.41 | 0.38 |
| 0.47 | 0.42 |
| 0.54 | 0.46 |
| 0.49 | 0.43 |
| 0.39 | 0.37 |
| 0.44 | 0.40 |
| 0.51 | 0.44 |
| 0.36 | 0.36 |
| Color |
|---|
| Dusk |
| Linen |
| Mushroom |
| Onyx |
| Pewter |
| Sand |
| Stone |
| Suede |
Solar Optical Properties (5%)
| TS | RS | AS | TV |
|---|---|---|---|
| 22 | 31 | 47 | 8 |
| 32 | 52 | 16 | 28 |
| 27 | 42 | 31 | 18 |
| 22 | 31 | 47 | 9 |
| 26 | 37 | 37 | 14 |
| 35 | 54 | 11 | 33 |
| 27 | 49 | 24 | 20 |
| 25 | 35 | 40 | 13 |
| 38 | 56 | 6 | 27 |
| Color |
|---|
| Dusk |
| Linen |
| Mushroom |
| Onyx |
| Pewter |
| Sand |
| Stone |
| Suede |
Solar Heat Gain Coefficient (5%)
| CL-S | DG |
|---|---|
| 0.56 | 0.47 |
| 0.45 | 0.41 |
| 0.50 | 0.44 |
| 0.56 | 0.47 |
| 0.53 | 0.45 |
| 0.44 | 0.40 |
| 0.46 | 0.41 |
| 0.54 | 0.46 |
| 0.44 | 0.39 |
The fenestration property tests were conducted in accordance with EN 14501:2005, ASTM 891, ASTM E903-96: Solar Heat Gain Coefficient (SHGC), Solar Transmittance (TS), Solar Reflectance (RS), Solar Absorptance (AS), Visible Light Transmittance (TV); 4mm Clear Glass, Single Glazing (CL-S); Double Glazing 4mm/16mm/4mm with low E-coating in position 3, space filled with Argon (DG); To calculate shading coefficient: SHGC CL-S/0.87. The above data is indicative.
* Please note that the Openness Factor is an approximation and may vary from color to color in the same fabric due to the color and the manufacturing process.
