Roscoe

0% Openness

Print page

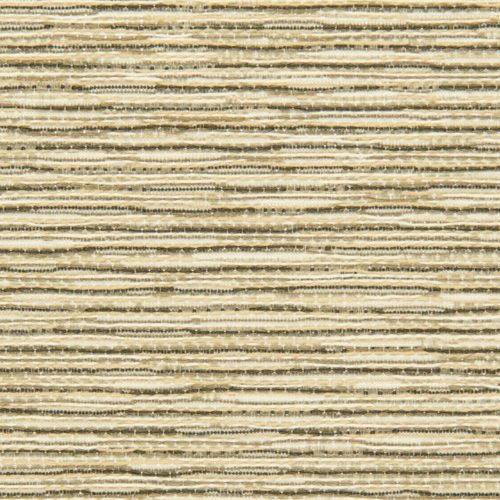

Desert

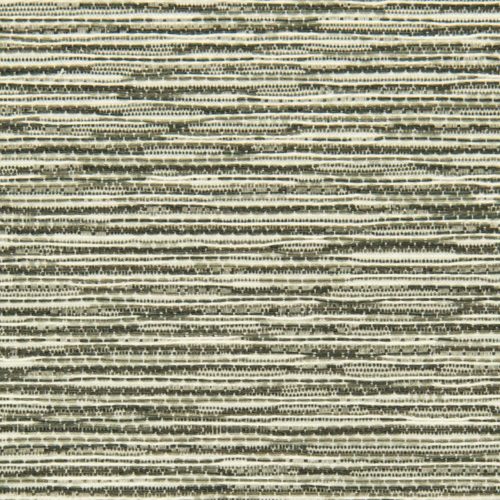

Granite

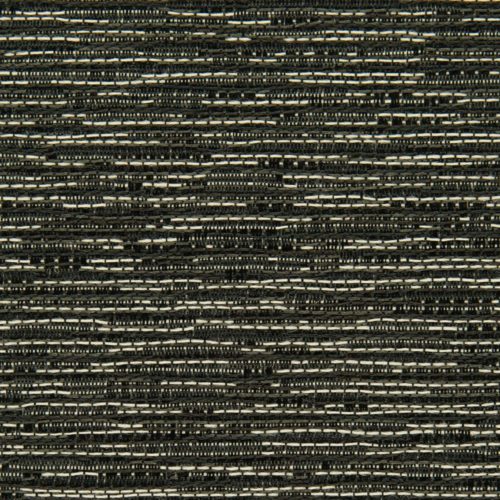

Shadow

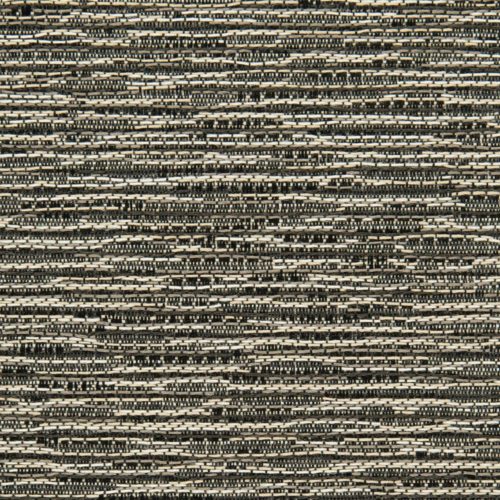

Smoke

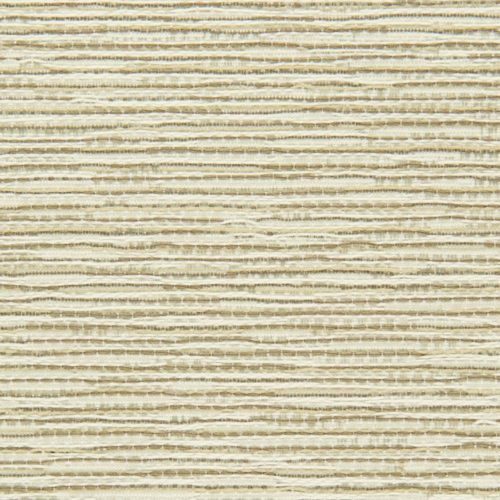

Talc

Specifications

Maximum Fabric Width: 118″
UV Blockage: Approximately 100%
Composition: 100% Polyester w/ Acrylic Foamed Backing
Fabric Weight: 12.53 oz/yd²
Fabric Thickness: 0.029″
Railroad Available: No
Printable Available: No
Fire Classification: NFPA 701-2004 TM#1 (small scale), California U.S. Title 19 (small scale)
Bacterial and Fungal Resistance: ASTM G21-96
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization

Note: Several factors determine the maximum length of fabric. Please send project-specific specifications to our quoting department for more information.

Care and Cleaning

Clean with mild soap and water. If cleaners other than mild soap and water are desired, test in an inconspicuous area prior to use. Disinfectants containing bleach may be used. Avoid cleaners containing quaternary ammonium compounds and phenols. Rinse thoroughly after cleaning. Paint solvents should not be used.

Color
Desert
Granite
Shadow
Smoke
Talc

Solar Optical Properties

TSRSASTV
064360
064360
064360
064360
064360
Color
Desert
Granite
Shadow
Smoke
Talc

Solar Heat Gain Coefficient

CL-SDG
0.230.21
0.230.21
0.230.21
0.230.21
0.230.21

Solar Transmittance (TS), Solar Reflectance (AS), Solar Absorption (AS), Visual Transmittance (TV), Solar Heat Gain Coefficient (SHGC), Single Glazing (CL-S), Double Glazing (DG); Fabrics Installed Internally, Zero-Degree Profile Angle, Solar Heat Gain Coefficient (SHGC) shown calculated according to Office of Building Technology, State and Community Programs, Energy Efficiency and Renewable Energy, U.S. Department of Energy's definition of SHGC. SHGC represents the percentage of solar heat gain that is transmitted to the interior through the glass and shading system. If you are using glass whose performance is listed in terms of SC, you may convert to SHGC by multiplying the SC by 0.87.

* Please note that the Openness Factor is an approximation and may vary from color to color in the same fabric due to the color and manufacturing process.
