T Screen with KOOLBLACK® Technology
1% and 3% Openness
Print page

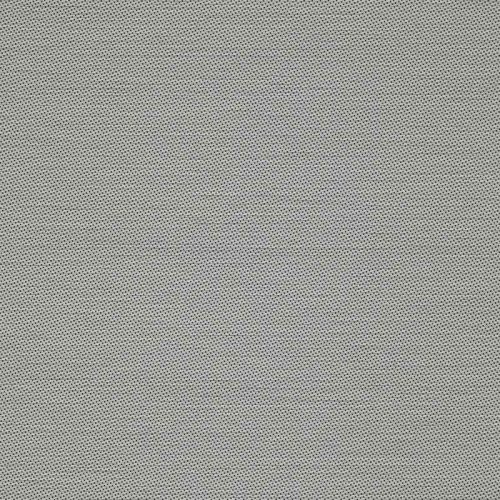

Charcoal/White

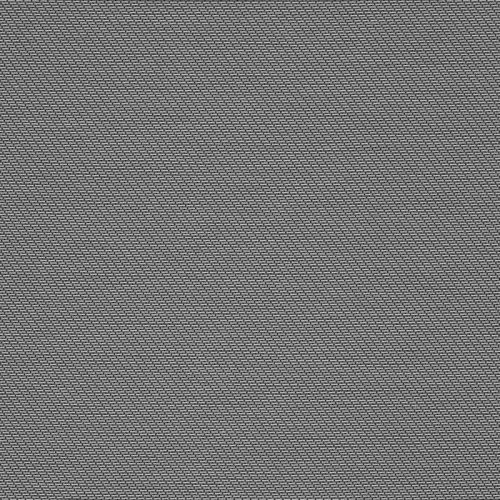

Charcoal/Grey-White

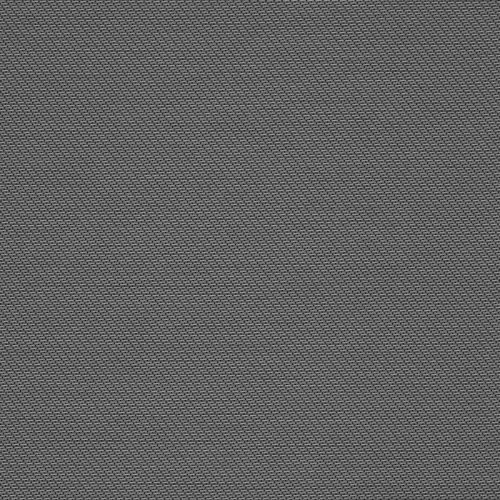

Charcoal/Grey-Stone

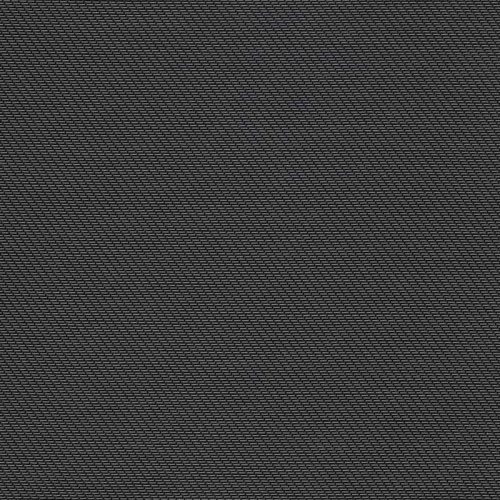

Charcoal/Charcoal-Steel

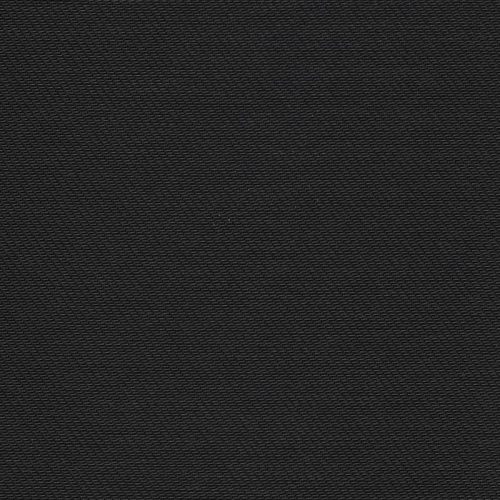

Charcoal/Charcoal-Iron
Specifications
Maximum Fabric Width: 122″
UV Blockage: Approximately 95% – 99%
Composition: 64% Vinyl, 36% Fiberglass,
Fabric Weight: 13.54 oz/yd² (1%),13.27 oz/yd² (3%)
Fabric Thickness: 0.024″ (1%), 0.029″ (3%)
Railroad Available: Yes
Printable Available: No
Fire Classification: NFPA 701-10, TM#1, California U.S. Title 19, CAN/ULC-S109-14 Small & Large Flame Test
Bacterial and Fungal Resistance: ASTM G21, ASTM E2180
Operating System: RB 500 Operating System with manual chain and ANSI compliant cord tensioner, manual crank, and motorization
Note: Several factors determine the maximum length of fabric. Please send project-specific specifications to our quoting department for more information.
Care and Cleaning
Remove dust with a vacuum cleaner or compressed air. Do not scrub. Do not use solvents or any abrasive substance which might damage the coating of the fabric. Clean with a sponge or soft brush dipped in soapy water using a mild detergent. Rinse with clean water. Leave the blind down until completely dry. You can also very gently rub the fabric with a clean white pencil eraser to remove small stains.
| Color | Side |
|---|---|
| Charcoal/White | Street |
| Room | |
| Charcoal/Grey-White | Street |
| Room | |
| Charcoal/Grey-Stone | Street |
| Room | |
| Charcoal/Charcoal-Steel | Street |
| Room | |
| Charcoal/Charcoal-Iron | Street |
| Room |
Fabric Properties - Thermal (1%)
| Rs (IR%) |
|---|
| 67 |
| 68 |
| 67 |
| 67 |
| 64 |
| 62 |
| 60 |
| 54 |
| 65 |
| 65 |
| Color | Side |
|---|---|
| Charcoal/White | Street |
| Room | |
| Charcoal/Grey-White | Street |
| Room | |
| Charcoal/Grey-Stone | Street |
| Room | |
| Charcoal/Charcoal-Steel | Street |
| Room | |
| Charcoal/Charcoal-Iron | Street |
| Room |
Thermal - Total Solar (1%)
| Rs (%) | As (%) | Ts (%) |
|---|---|---|
| 40 | 48 | 12 |
| 59 | 29 | 12 |
| 38 | 51 | 11 |
| 49 | 39 | 12 |
| 36 | 52 | 12 |
| 43 | 45 | 12 |
| 34 | 55 | 11 |
| 34 | 54 | 12 |
| 36 | 51 | 13 |
| 39 | 48 | 13 |
| Color | Side |
|---|---|
| Charcoal/White | Street |
| Room | |
| Charcoal/Grey-White | Street |
| Room | |
| Charcoal/Grey-Stone | Street |
| Room | |
| Charcoal/Charcoal-Steel | Street |
| Room | |
| Charcoal/Charcoal-Iron | Street |
| Room |
Fabric Properties - Optical (1%)
| Rv (%) | Tv (%) |
|---|---|
| 16 | 3 |
| 53 | 3 |
| 14 | 2 |
| 35 | 2 |
| 12 | 2 |
| 26 | 2 |
| 11 | 2 |
| 18 | 2 |
| 11 | 2 |
| 16 | 2 |
| Color | Side |
|---|---|
| Charcoal/White | Street |
| Room | |
| Charcoal/Grey-White | Street |
| Room | |
| Charcoal/Grey-Stone | Street |
| Room | |
| Charcoal/Charcoal-Steel | Street |
| Room | |
| Charcoal/Charcoal-Iron | Street |
| Room |
Fabric & Glass Commercial SHGC % Improvement (1%)
| Interior |
|---|
| 50 |
| 45 |
| 21 |
| 34 |
| 21 |
| 29 |
| 24 |
| 24 |
| 21 |
| 24 |
| Color | Side |
|---|---|
| Charcoal/White | Street |
| Room | |
| Charcoal/Grey-White | Street |
| Room | |
| Charcoal/Grey-Stone | Street |
| Room | |
| Charcoal/Charcoal-Steel | Street |
| Room | |
| Charcoal/Charcoal-Iron | Street |
| Room |
Fabric Properties - Thermal (3%)
| Rs (IR%) |
|---|
| 67 |
| 68 |
| 67 |
| 67 |
| 64 |
| 62 |
| 60 |
| 54 |
| 65 |
| 65 |
| Color | Side |
|---|---|
| Charcoal/White | Street |
| Room | |
| Charcoal/Grey-White | Street |
| Room | |
| Charcoal/Grey-Stone | Street |
| Room | |
| Charcoal/Charcoal-Steel | Street |
| Room | |
| Charcoal/Charcoal-Iron | Street |
| Room |
Thermal - Total Solar (3%)
| Rs (%) | As (%) | Ts (%) |
|---|---|---|
| 38 | 47 | 15 |
| 55 | 30 | 15 |
| 37 | 49 | 14 |
| 47 | 39 | 14 |
| 35 | 51 | 14 |
| 40 | 45 | 15 |
| 32 | 54 | 14 |
| 32 | 54 | 14 |
| 34 | 51 | 15 |
| 36 | 49 | 15 |
| Color | Side |
|---|---|
| Charcoal/White | Street |
| Room | |
| Charcoal/Grey-White | Street |
| Room | |
| Charcoal/Grey-Stone | Street |
| Room | |
| Charcoal/Charcoal-Steel | Street |
| Room | |
| Charcoal/Charcoal-Iron | Street |
| Room |
Fabric Properties - Optical (3%)
| Rv (%) | Tv (%) |
|---|---|
| 15 | 6 |
| 47 | 5 |
| 13 | 4 |
| 32 | 4 |
| 11 | 5 |
| 24 | 5 |
| 1 | 5 |
| 15 | 5 |
| 10 | 4 |
| 13 | 4 |
| Color | Side |
|---|---|
| Charcoal/White | Street |
| Room | |
| Charcoal/Grey-White | Street |
| Room | |
| Charcoal/Grey-Stone | Street |
| Room | |
| Charcoal/Charcoal-Steel | Street |
| Room | |
| Charcoal/Charcoal-Iron | Street |
| Room |
Fabric & Glass Commercial SHGC % Improvement (3%)
| Interior |
|---|
| 21 |
| 39 |
| 21 |
| 32 |
| 21 |
| 26 |
| 21 |
| 21 |
| 18 |
| 21 |
The fenestration property tests were conducted in accordance with EN 14501:2005, ASTM 891, ASTM E903-96: G-Value (Solar Heat Gain Coefficient), Solar Reflectance (RS), Visible Light Transmittance (TV), Double Glazing 4mm/16mm/4mm with low E-coating in position 3, space filled with Argon (DG); The above data is indicative. For up-to-date test results, performance specifications and larger samples, contact the Mermet Marketing Department at www.mermetusa.com.
